USB-C 4-in-1 adapteris: HDMI 4K, VGA, USB 3.0, PD stotelė

Trumpai apie prekę

Prekė: USB-C 4-in-1 adapteris: HDMI 4K, VGA, USB 3.0, PD stotelė. Kategorija: USB šakotuvai.

• Gamintojas: no brand
• Modelis: ZLHUB-4IN1

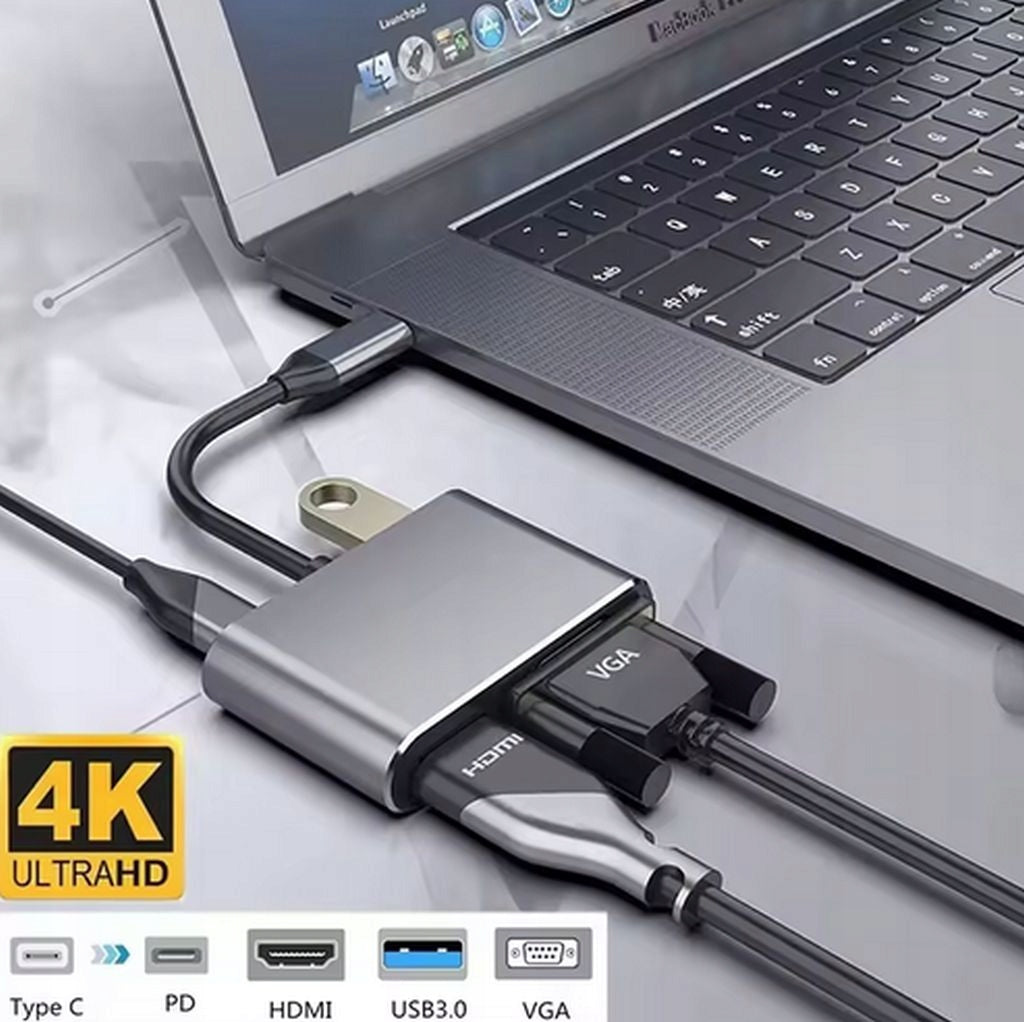

ADAPTER HUB USB-C 4 IN 1 - DOCKING STATION HDMI 4K VGA USB 3.0 PD

The device is a compact and extremely functional 4-in-1 adapter that allows you to quickly expand the USB-C port on your laptop or tablet. Thanks to the combination of the most popular video connectors and a high-speed data port, it is an ideal solution for people who need a mobile and robust tool for presentation and everyday office work.

Key Features:

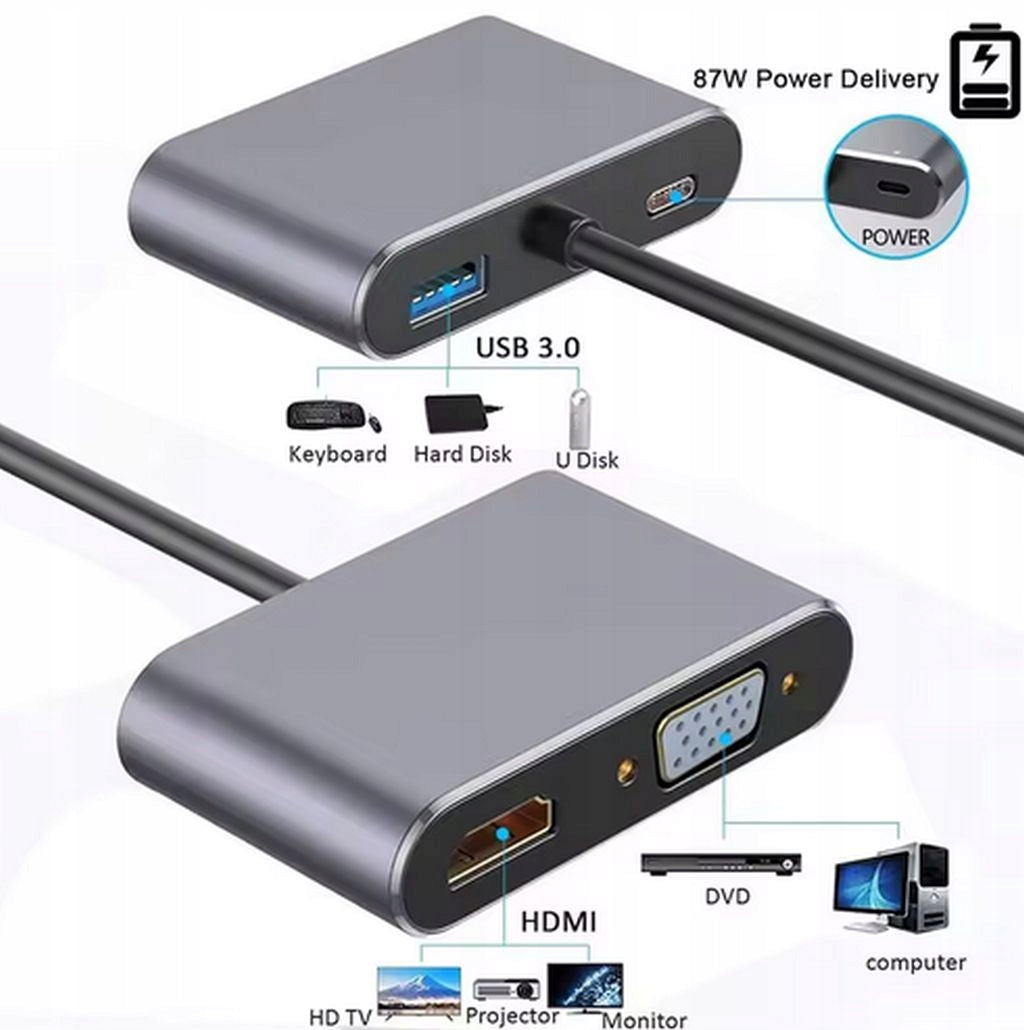

Multifunctionality: 4 key ports enclosed in a minimalist aluminum housing

Image support: HDMI and VGA outputs for connecting modern and older displays

High image quality: HDMI output supporting 4K resolution at 30Hz

High-speed data transfer: USB 3.0 port for lightning-fast file copying

Fast charging: Power Delivery support up to 87W (through-charging)

Mobile design: The small size makes the adapter fit in any laptop bag pocket

Technical specification:

Input: USB-C male

HDMI output: resolution up to 4K @ 30Hz

VGA output: resolution up to 1080p @ 60Hz

USB-A port: 1x USB 3.0 (fast transfer up to 5Gbps)

Power port: USB-C PD (max 87W)

Material: Aluminum (Space Gray)

Application:

The docking station is ideal for:

- Connect your laptop to a projector or TV during presentations and lectures.

- simultaneous use of an external monitor and fast portable memory.

- charging the device during operation thanks to the PD power supply function.

- work with devices with different video input standards (HDMI and VGA).

Hints:

PD power supply: The USB-C PD port is for charging only; it is recommended to plug in the original charger for stable operation of all hub functions.

USB-C standard: A USB-C port with DisplayPort Alt Mode or Thunderbolt 3/4 support is required for HDMI and VGA outputs to work properly.

Operating temperature: The aluminum housing effectively dissipates heat, which can cause it to heat up during image transfer and simultaneous charging.

Information about screens and display capabilities

Display Capabilities (Mirror vs Extend)

Duplicate screens (Mirror Mode): The adapter allows you to display the image from your computer on an additional monitor or projector.

Extension of screens (Extend Mode):

Windows: Allows you to extend your desktop with an additional image. When using HDMI and VGA simultaneously, both external monitors typically display the same image (as one additional desktop).

macOS: supports an extension of one additional image that is duplicated on both video hub outputs.

USB-C port type required

For full functionality (video and charging), the USB-C port on your device must support image transfer and Power Delivery technology.

Important technical comments

Resolution: When using HDMI and VGA ports simultaneously, the maximum resolution on both outputs is limited to 1080p (Full HD).

HDMI cable: For the best 4K picture quality, it is recommended to use branded HDMI cables with the appropriate bandwidth.

Specifications
