USB 2.0 aktyvus prailginimo šakotuvas Lindy, 8 m

Trumpai apie prekę

Prekė: USB 2.0 aktyvus prailginimo šakotuvas Lindy, 8 m. Kategorija: USB šakotuvai.

• Gamintojas: Lindy
• Modelis: 42781

Product number: L42781

• High-performance hub with active cable that provides an extended 8-meter connection between your computer and up to 4 USB 2.0 devices
• Can be used alone or as part of the Lindy Active Extension System Pro to create custom extension systems up to 60 m in length
• Supports USB 2.0 High Speed bandwidth for 480Mbps speeds
• Easy to use: connects to your device's existing USB cable (maximum 2m)
• 2 years .

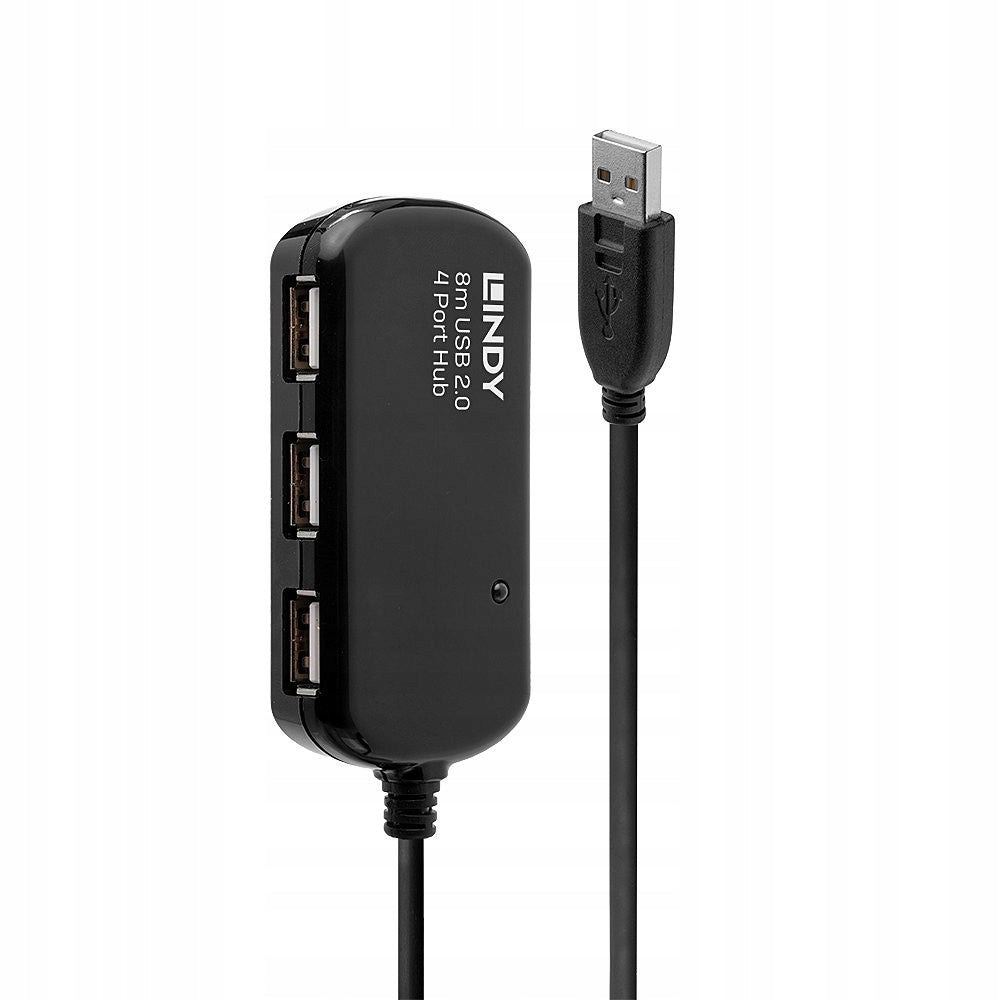

The Lindy USB Active Extension Hub Pro is a high-performance hub with an active cable that allows you to access up to four USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480 Mbps, this expansion hub is ideal for transferring large amounts of data quickly and reliably.

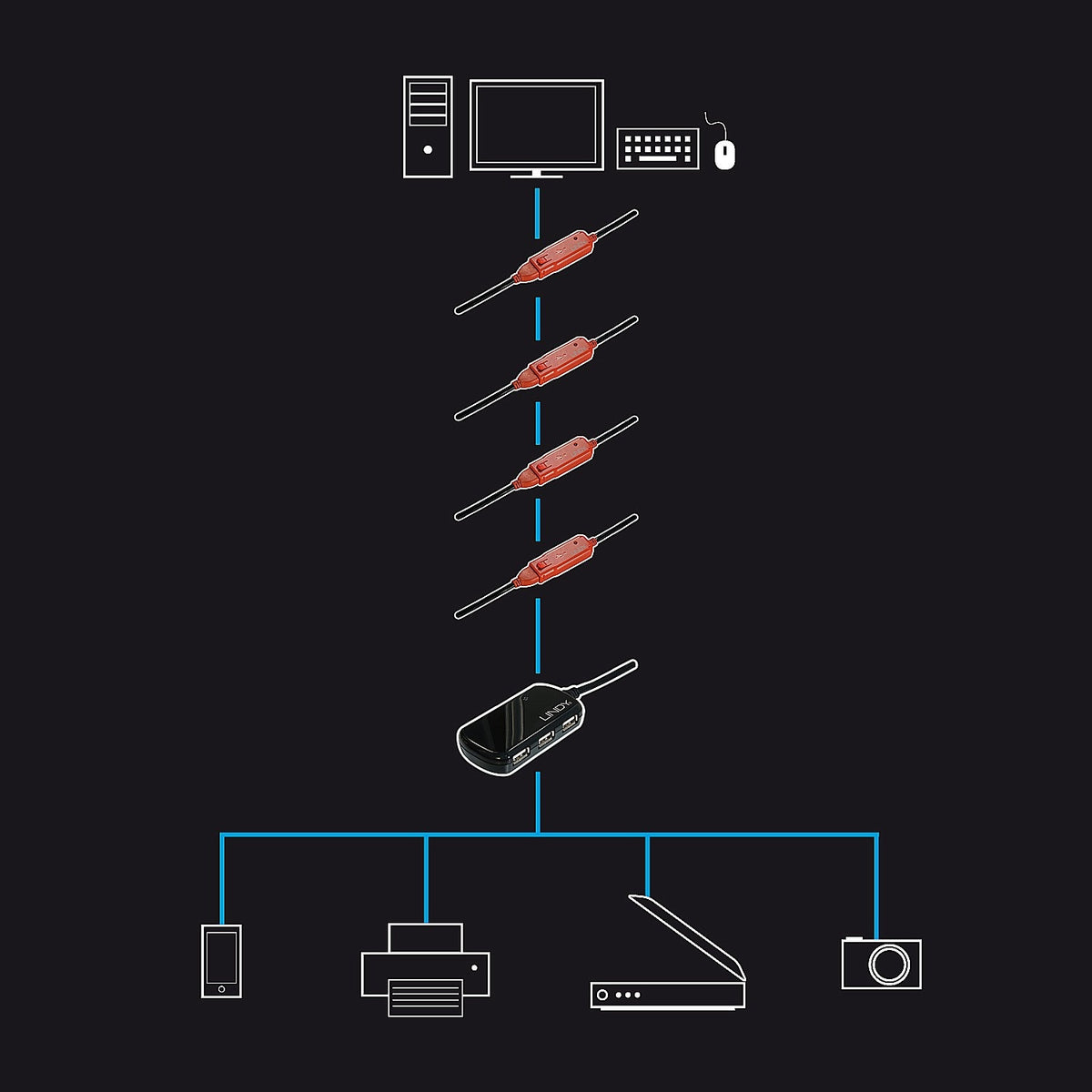

This 8-meter expansion hub can be used alone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can connect multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to 4 devices up to 60 m away.

8 m and 12 m cables and 8 m and 12 m hub are equipped with a single active repeater module that amplifies the USB signal. The 30 m cable uses two repeaters. A fully implemented extension system is limited to a maximum of 60 m and 4 repeater modules. Any combination of cables and a single hub can be connected, provided that the limit of 60 m / 4 repeaters is not exceeded. The extension hub must always be the last segment of the extension system.

This cable is equipped with industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Note: This product includes one USB 2.0 hub, which should be considered if the product is deployed in a larger installation in conjunction with other devices.

.

Connections

• Connector A: USB Type A Male
• Connector B: 4 x USB Type A Female
• Power Supply: 3.5/1.35mm DC Connector
• Housing Material: Plastic
• Connector Coating: Front: Gold / Rear: Nickel
• Pin Design: Brass
• Pin Plating: Gold Flash
• Dimensions (approximately) WxDxH:
• USB A Male: 15x43x8mm (0.59x1.69x0.31in)
• Hub: 80x40x16mm (3.15x1.57x0.63in)

Cable design

• Length: 8m (26.25ft)
• Standard: USB 2.0
• Color: Black
• Type: Round
• Coat diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
• Coat Material: Semi-matte PVC with low toxicity
• Conductor Material: Tin Plated Copper
• Wire Cross-section: 26/20AWG
• Shielding: AL Mylar and braid

Specification

• Supported bandwidth: 480 Mbps
• Nominal attenuation:
• (0.064 MHz, -0.08 dB)
• (0.256MHz, -0.11 dB)
• (0.512MHz, -0.13 dB)
• (0.772 MHz, -0.15 dB)
• (1 MHz, -0,2 dB)
• (4 MHz, -0,39 dB)
• (8 MHz, -0,57 dB)
• (12 MHz, -0.76 dB)
• (24 MHz, -0,95 dB)
• (48 MHz, -1,35 dB)
• (96 MHz, -1,9 dB)
• (200 MHz, -3.2 dB)
• (400 MHz, -5,8 dB)
• Minimum bending radius: 26 mm (1,02 inches)
• Maximum tensile load: -
• Operating temperature: 0°C - 50°C (32°F - 122°F)
• Storage temperature: -20°C - 60°C (-4°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 2.0

Miscellaneous

• Packaging Type: Cardboard Box
• Package Dimensions: 235x200x65mm (9.25x7.87x2.56in)
• Net weight: 0.331kg (0.73lb)
• Gross weight: 0.654kg (1.44lb)
• . (years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP65, TAA

Content of the package

• USB 2.0 Active Extension Pro Hub
• 5VDC 2.6A Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Purchase Information

• No.42781
• EAN: 4002888427814

This product is also available in other lengths

• 42783 - 12m (39.37ft) with hub

.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Lindy
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	4002888427814
Parametry	Manufacturer code	42781
Parametry	Number of ports	4
