USB 2.0 adapteris su SIM lizdu, 3G/4G WWAN testavimo modulis

Trumpai apie prekę

Prekė: USB 2.0 adapteris su SIM lizdu, 3G/4G WWAN testavimo modulis. Kategorija: Tinklo plokštės.

• Gamintojas: Universal
• Modelis: 09363022483

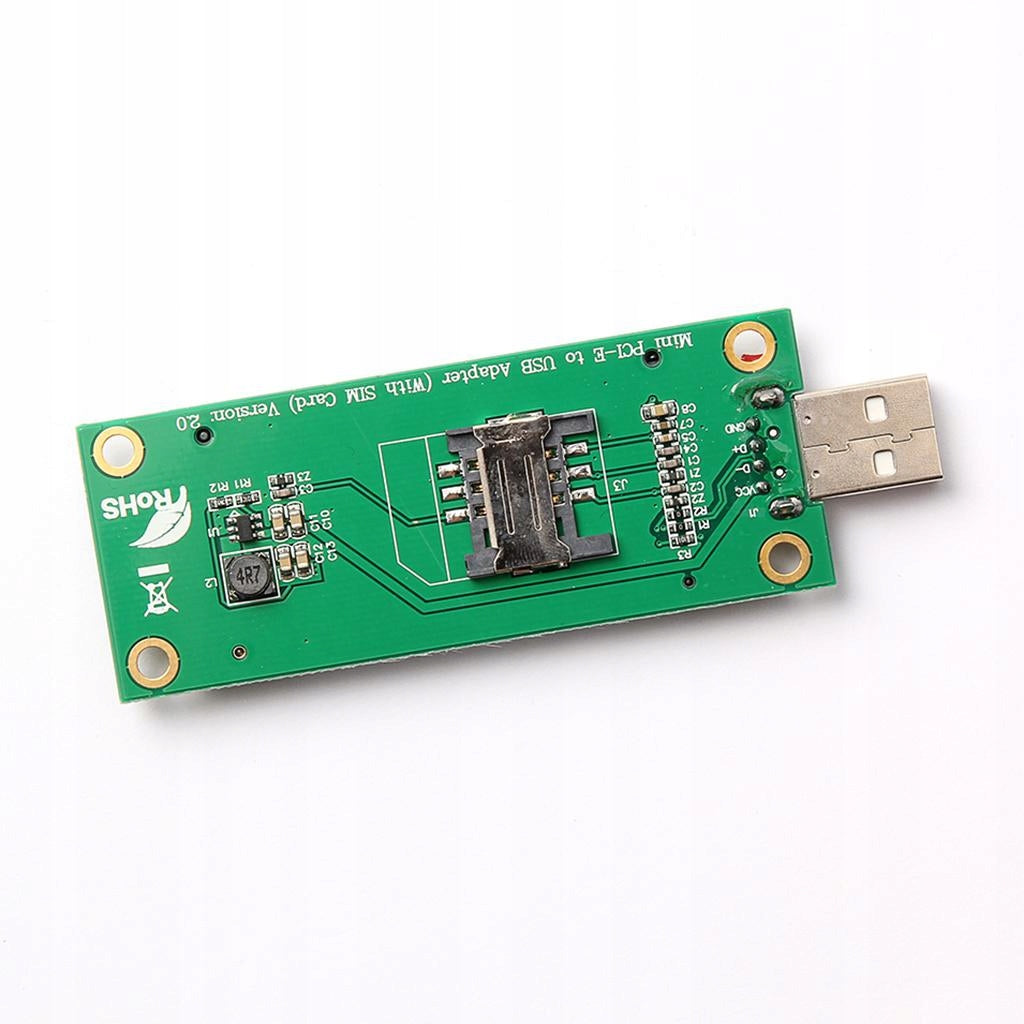

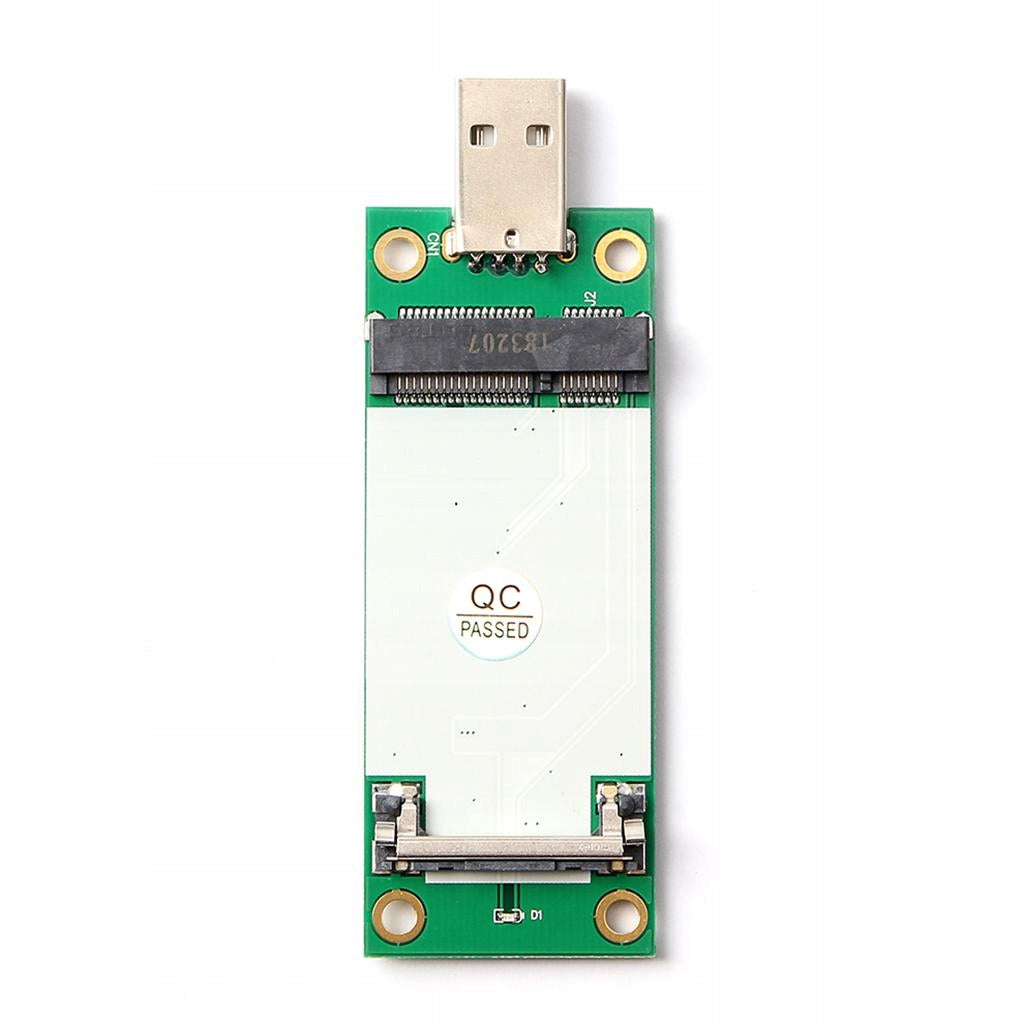

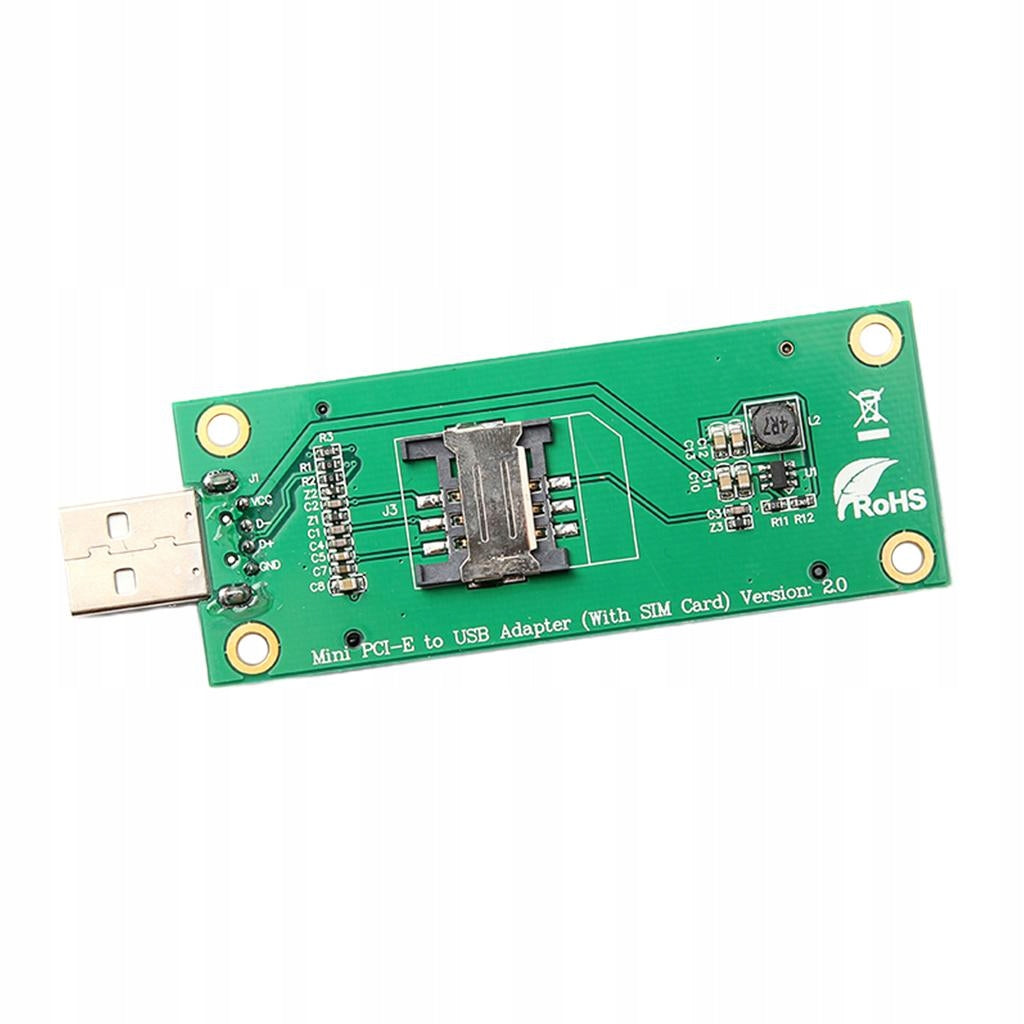

Mini e WWAN Card to USB Adapter with SIM Slot for 3G / 4G Module Tester

Description:

Mini e to USB adapter card, which adds a lock for the fixed module, which is convenient for users to install and improve the reliability and stability of the module.

PCB has 4 screw holes for industrial control small chassis

Increase the distance between holder and the rear panel components

Add USB 4-wire input hole disk to directly solder USB cable

Working principle: Mini e 52Pin interface defines USB and 3.3V . The adapter card converts USB interface 5V into 3.3V through LDO chip, supplies module and SIM work, and bus USB .

Mini meets industry specifications for 1.30

The adapter card is suitable for full-height (30*50-51mm) 4G/3G modules (USB bus)

Working LED time display

Scope of application: Suitable for most 3G/4G modules, it can also be used for Internet access and module brushing, debugging, testing and via USB port.

Specification:

Mini E to USB with SIM slot WWAN test transfer card 3G or 4G module development board back

when using this product

1 need to have your own 3G or 4G module

2: After you install the 3G or 4G module, you need to install your 3G or 4G module the computer

Package Includes:

1x Mini e WWAN Card to USB Adapter

Specifications
