Tinklo plokštė PCEE-GRF PCIe 1x, 1 Gb/s

Trumpai apie prekę

Prekė: Tinklo plokštė PCEE-GRF PCIe 1x, 1 Gb/s. Kategorija: Tinklo plokštės.

• Gamintojas: Axagon
• Modelis: PCEE-GRF

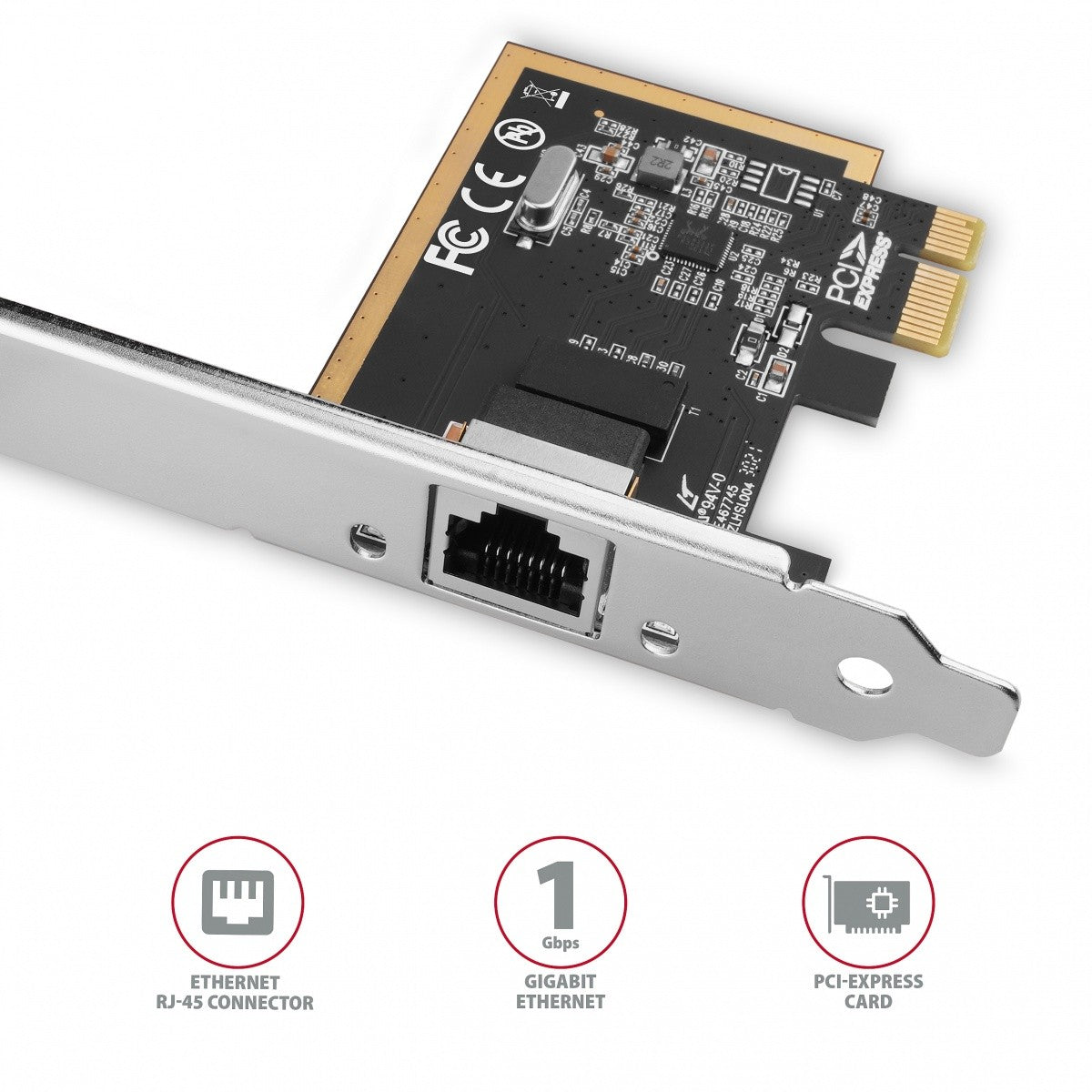

PCI-Express AXAGON PCEE-GRH network card will expand your desktop computer with a high-speed Gigabit Ethernet connection. It enables transmission speed of 10/100/1000 Mbit/s.

The network card is embedded in the proven Realtek 8111 chipset, guaranteeing seamless compatibility with the vast majority of operating systems.

A Gigabit network adapter connects your computer to the Internet or computer network, adds a missing RJ-45 network connector, another network card, or replaces the original, malfunctioning network connection.

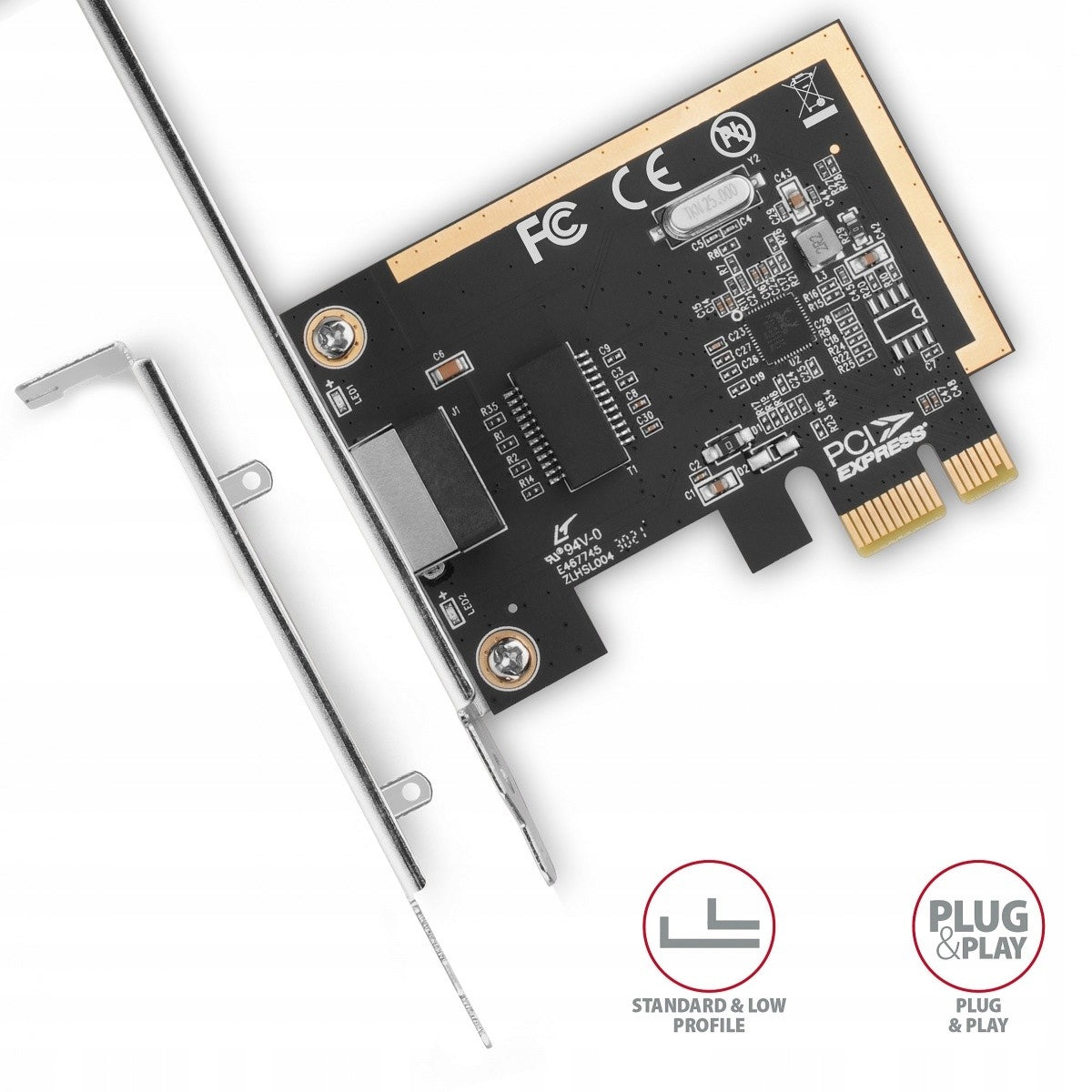

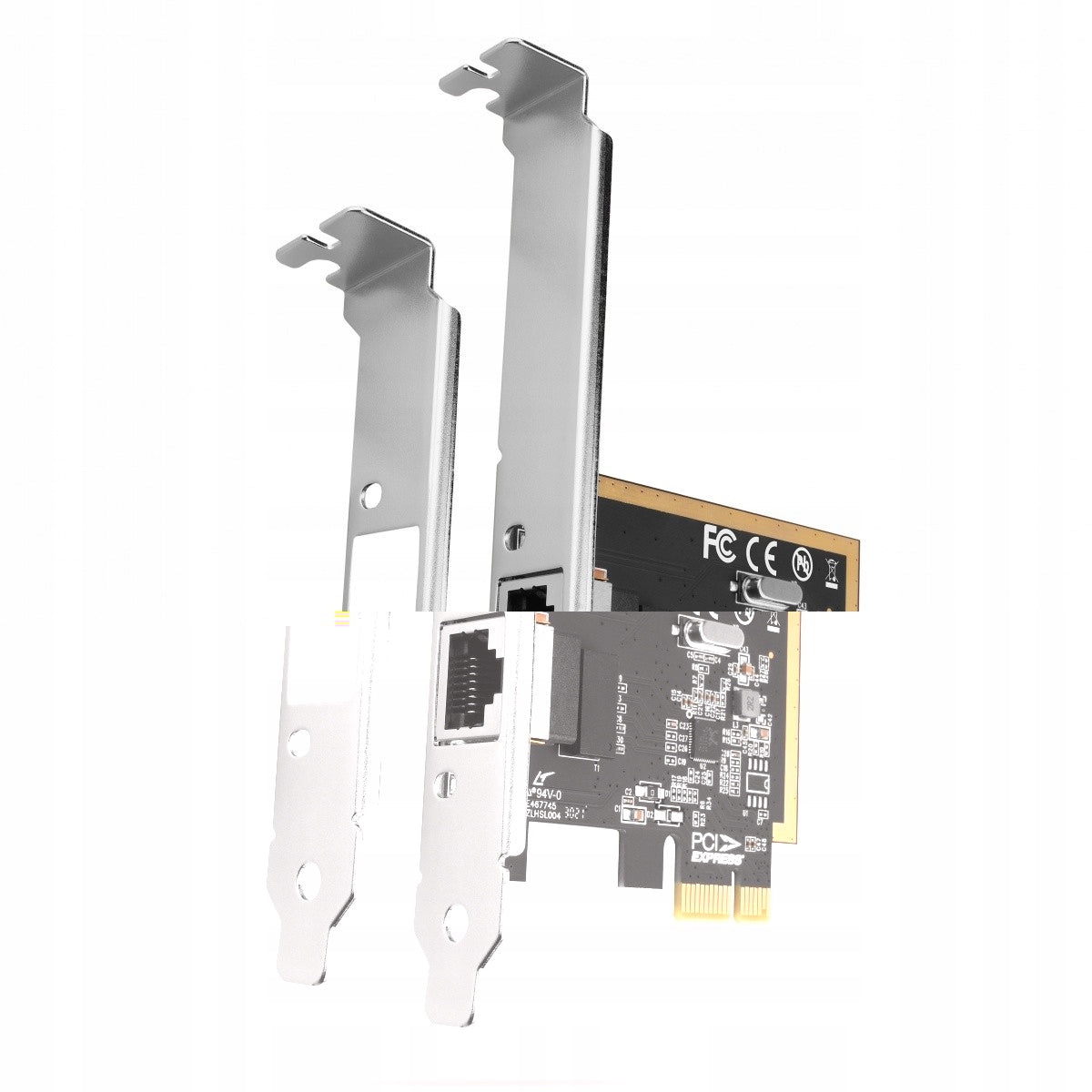

In addition to the adapter with standard dimensions herring, the package also includes a low profile track that allows the adapter to be mounted to a low profile housing.

Input:

PCI-Express 1.1 interface, compatible with PCI-Express 1.0a/2.0. / 2.1 / 3.0.

Number of 1-Lane lines (x1), compatible with x1/x4/x8/x16 PCIe slots.

1-Lane PCI-Express 1.1 bus 2.5 Gbps.

Output:

Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.

Supported Ethernet bandwidth 10/100/1000 Mbps.

Supported specification IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.

Further properties:

Total Plug and Play support.

10/100/1000 Mbit/s auto-discovery.

Support Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce CPU load combined.

Support Segmentation Task-offload (Large Send V1 a Large Send V2).

Support Full Duplex transmission with IEEE 802.3x flow control.

Support IEEE 802.1P Layer 2 priority encoding.

Support IEEE 802.1Q VLAN tagging.

IEEE 802.3az (EEE) Energy Efficient Ethernet support - reducing wear at rest.

Auto MDI/MDIX support - crossover detection and autocorrection eliminate the need for crossover cables.

Support hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) functions.

Support Pair Swap/Polarity/Skew Correction.

Two LEDs for announcing activity and network connection.

Realtek RTL8111E/F chipset used.

Support Wake-on-LAN function in different modes:

Support sleep and remote wake-up mode with AMD Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and Link Change wake-up.

Support ECMA-393 proxZzzy for sleeping hosts standard to order the network connection of dormant hosts using a server proxy.

Advanced Power Management Features:

The network adapter supports advanced power management of reducing loss in the idle state. It also supports advanced power savings when disconnected from an Ethernet cable.

Support Advanced Configuration Power Management Interface (ACPI).

Power Management offload (ARP&NS) support.

PCI MSI (Message Signaled Interrupt) and MSI-X support.

Supported operating systems:

MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported all 32-bit and 64-bit versions of Windows OS), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4. x/ 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver).

Package includes:

PCI-Express Gigabit Ethernet card with standard herring,

herring low profile,

installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,

packed in a cardboard box.

• Type:LAN
• Chipset:Realtek RTL8111E/F
• Interface:PCIe
• I/O ports:1 x 10/100/1000 Mbit/s
• Standards:802.3,802.3ab,802.3u
• Supported operating systems:FreeBSD,Linux,Unix,Mac OS,Windows XP,Windows Server 2003,Windows Vista,Windows Server 2008,Windows 7,Windows Server 2012,Windows 8,Windows 8.1,Windows 10,Windows Server 2016,Windows 11
• Accessories Included:PCI-Express Gigabit Ethernet Card with Standard Herring Track Low Profile Installation Instructions Packed in Carton Box
• Other parameters:Input:PCI-Express 1.1 interface, compatible with PCI-Express 1.0a / 2.0. / 2.1 / 3.0. Number of 1-Lane lines (x1), compatible with x1/x4/x8/x16 PCIe slots. 1-Lane PCI-Express 1.1 bus 2.5 Gbps.Output: Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection. Supported Ethernet interface transmission rates 10/100/1000 Mbps. Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specification.
