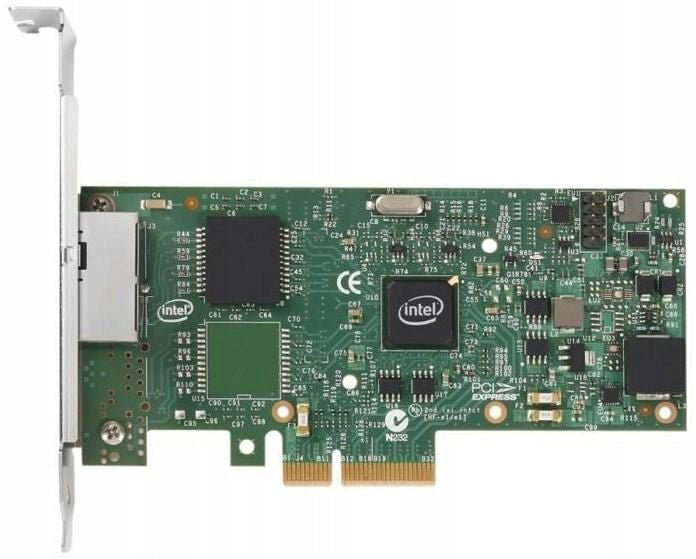

Tinklo plokštė Intel PCI-Express I350T2V2, I350T2V2BLK

Trumpai apie prekę

Prekė: Tinklo plokštė Intel PCI-Express I350T2V2, I350T2V2BLK. Kategorija: Tinklo plokštės.

• Gamintojas: Intel
• Modelis: I350T2V2BLK

Intel PCI-Express I350T2V2 BULK, I350T2V2BLK

Intel PCI-Express I350T2V2 BULK OEM

• Length: 6,89
• Width: 15,10
• EAN: 5032037066105
• Manufacturer: Intel
• Manufacturer code: I350T2V2BLK
• Country of origin: CN

Intel Ethernet Server Adapter I350-T2V2, retail wholesale

Based on the new Intel® Ethernet I350 controller series, the Intel® Ethernet Server Adapter I350 represents the next step in the evolution of enterprise and data center GbE networks. It introduces new levels of performance with industry-leading enhancements for both virtual and integrated network environments using a small computer system interface over the Internet (iSCSI). This new family of adapters also includes new power management technologies such as energy-efficient Ethernet (EEE) and memory access coalescence (DMAC).

Specifications for I350T2V2BLK

design

ChipsetIntel® I350Server ComponentInternalYesPCI Card Form FactorFull Height (Low Profile)Recommended ApplicationServer

Logistics data

Harmonized System (HS) code 8517620090

Network

Cabling Technology 10/100/1000BaseT(X) Ethernet LAN Yes Ethernet LAN Data Speed 1000 Mbit/s Full Duplex Yes LAN Controller Intel® I350 Maximum Data Transfer Rate 1000 Mbit/s Maximum Operating Distance 100 m Network Standards IEEE 802.1as / IEEE 802.1Q / IEEE 802.3 / IEEE 802.3ab / IEEE 802.3az / IEEE 802.3u / IEEE 802.3x / IEEE 802.3z Supported Network Protocols TCP, UDP, IP

Operating conditions

Operating temperature (TT)0 - 55 °CRelative humidity during storage (HH)35 - 90%Storage temperature (TT)-40 - 70 °C

Other features

Bracket HeightLow Profile (LP) / Full Height (FH) Bracket HeightLow Profile and Full HeightCable TypeCat 5 up to 100mCable TypeCat 5 up to 100mChipsetIntel I350Commodity Classification Automated Tracking System (CCATS)Controller TypeIntel I350Ethernet Adapter IDARK84804Export Control Classification Number (ECCN)5A991. B.4. AHalogen-freeNoHarmonized System (HS) Code85176990Intel Ethernet Power ManagementYesIntel Flexible Port SplittingYesIntel Intel Device Queues (VMDq)YesIntel Virtualization Technology for Connectivity (VT-c)YesIntelligent OffloadsYesInterface TypePCIe v2.1 (5.0 GT/s)iWARP/RDMANoLast Change63903513Release DateQ3'14Low-Halogen Options AvailableNoMarket SegmentServerNetwork Interface Card Cable MediumCopperNetwork Interface Card TypeServerOn-Chip QoS and Traffic ManagementYesPCI-SIG*SR-IOV CapableYesProcessor FamilyGigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)Product CodePowervilleProduct Intel Server Adapter Gigabit Product Series Intel® I350 Product Type Network Interface Card Slot Speed and Width 5.0 GT/s, x4 Lane Status Launched Storage Over EthernetiSCSI, NFSStorage-over-ethernetYes Maximum Power Designation (TDP) 4.4 W

Package dimensions (verified)

Verified depth 15.1 cm Verified gross weight 0.164 kg Verified height 3.2 cm Verified width 22.2 cm

Ports and interfaces

Connectivity technology Wired Ethernet LAN ports (RJ-45) 2 Host interface PCI Express Interface Ethernet PCI card form factor Full height (low profile) PCI version 2.1

Power supply

Typical power consumption 5 W

Product dimensions

Net weight (product, kg) 0.16 kg Product depth 13.54 cm Product width 6.89 cm

System requirements

Technical details

Harmonized System (HS) Code 8517620090 Brand Name Intel

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Intel
Parametry	Interface	PCI-E
Parametry	Card type	internal
Parametry	Port type	Ethernet (RJ-45)
Parametry	Number of ports	2
Parametry	Number of LAN (RJ-45) ports	2
Parametry	Two-way transmission	Full Duplex
Parametry	Product weight with unit packaging	0.13 kg
Parametry	EAN (GTIN)	735858286114
Parametry	Manufacturer code	I350T2V2BLK
Parametry	Certificates of conformity	CE
