Trumpai apie prekę
Prekė: Tinklo plokštė Intel I350-T2 V2, PCIe, 2x RJ45. Kategorija: Tinklo plokštės.
- Gamintojas: Intel
- Modelis: 5032037066082
Function and purpose
The Intel I350-T2 V2 network adapter is an internal adapter mounted in the PCI Express slot, designed to support wired Ethernet connections in servers and workstations. The device provides two RJ45 ports compliant with the 10/100/1000Base-T standard, allowing direct connection of copper cables.
Network performance and functions
Each port supports transmission up to 1000 Mbit/s and full duplex operation. The Intel I350 controller provides hardware offloads and features to accelerate traffic and I/O virtualization, including SR-IOV, VT-c, VMDq and flexible port partitioning. The card also supports iSCSI and traffic management and bandwidth prioritization (QoS) mechanisms.
Energy management and reliability
Built-in energy-saving mechanisms reduce consumption during idle operation and adjust power consumption to load. Typical power consumption is just over a few watts, and the low thermal design (TDP) makes the card suitable for working in densely packed server environments.
Compatibility and Work Environment
The card uses the PCI Express v2.1 interface on the x4 bus, it is available with a low-profile or full-size handle, which makes it easy to install in various enclosures. It supports standard TCP/UDP/IP network protocols and Ethernet standards, including IEEE 802.3, 802.3ab, 802.3az and 802.1Q. Typical cabling is category 5 (Cat 5) up to 100 m copper connection; the operating range includes typical temperatures and acceptable humidity for server devices.
Construction and installation

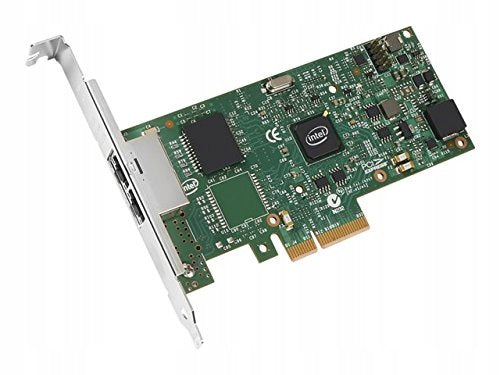

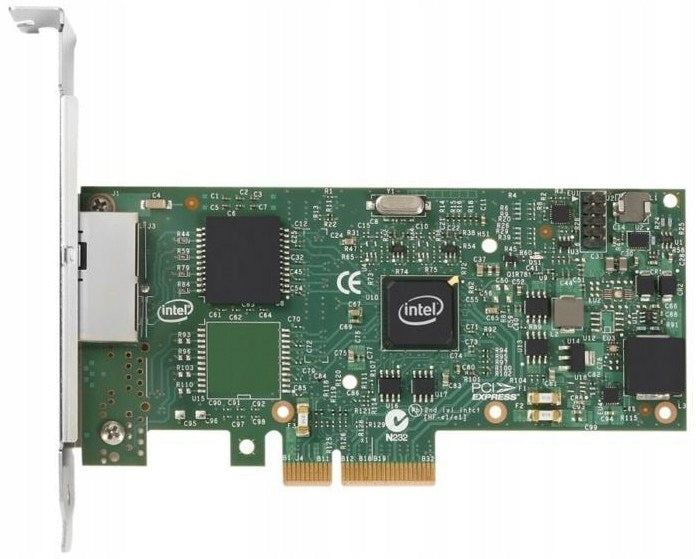

The design includes a board with an Intel I350 controller and two RJ45 connectors, with the possibility of low-profile or full-size mounting. Small dimensions and low heat emission make it easy to install in a limited space. The installation consists of occupying the appropriate PCIe slot and attaching the holder to the housing; after installation, the card works with systems that support drivers for Intel I350.
Specification
- Producer: Intel
- Host Interface: PCI Express (PCIe v2.1)
- Number of Ports: 2
- Wiring Type: Copper (Cat 5 to 100 m)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Intel |
| Parametry | Interface | PCI-E |
| Parametry | Card type | internal |
| Parametry | Port type | Ethernet (RJ-45) |
| Parametry | Number of ports | 2 |
| Parametry | Number of LAN (RJ-45) ports | 2 |
| Parametry | Two-way transmission | Full Duplex |
| Parametry | EAN (GTIN) | 5032037066082 |
| Parametry | Manufacturer code | 5032037066082 |
