Tinklo plokštė GAMING 2.5GbE, MGig, VLAN dot1q

Trumpai apie prekę

Prekė: Tinklo plokštė GAMING 2.5GbE, MGig, VLAN dot1q. Kategorija: Tinklo plokštės.

• Gamintojas: TOKMA
• Modelis: TK-206M25G

In the era of high-speed broadband, inevitably coming multi-gigabit transmissions on 5G networks of GSM operators, do you have the impression that your old cable connection is running slower than the Internet? The answer to the growing need to transmit more data at higher speeds is:

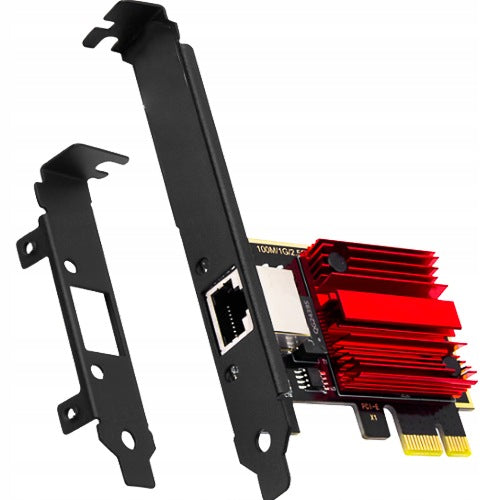

TOKMA TK-206M25G with additional low-profile handle

In addition, additional, massive heat sink increasing the stability of transmission with an extended transmission load of 2.5 Gb/s

• Operating modes: 10M/100M/1G/2.5G
• Support for Gigabit LITE < 1Gb/s - gigabit cards on USB 2.0
• compatibility with existing CAT5e and POE/POE+ networks
• autonegotiation half / full duplex
• support for without and with screen
• full integration with the operating system Windows 10 32/64bit, Windows 11
• Compatibility with Windows 7, Windows 7 64bit, Windows 8, Windows 8.1, Windows 10 32/64 bit, WIndows 11, DOS, Windows Server 2003, 2008, 2008 R2, 2012, Novell (selected editions), Linux (selected editions), MAC OS (selected editions)

The device enables comfort and superfast connection of the computer to the computer network including the Internet (via the operator's router). Place the LAN cable in the card port, connect the other end of the cable to the switch or operator router. Communicate at great speed with an endless range of devices: TV, IP camera, phone, other computer, printer, fax, camera, tablet, game console, home theater, SMART household appliances or surveillance cameras

Unlike WIFi networks - cable links can work in full-duplex mode (so-called double duplex). Thanks to this, after gigabit with CF-P25 you will achieve almost twice the data transfer speed than on gigabit wirelessly. Nowadays, widely available gigabit WiFi networks do not yet have such a possibility.

• TK-206M25G network card
• instruction manual in Polish from the distributor in Poland
• FAQ guide for beginners - also in Polish
• handle with standard profile 120mm
• additional low-profile handle 80mm
• disk with mini CD drivers 80mm
• mounting screw
• mail technical support throughout the use of the device and at the first start-up

Matte finish of the body, and contrasting LEDs attract attention with their elegance and ensure the highest quality of electronic components. Miniaturized to the limit housing and under its massive heat sink powerful processor REALTEK 8125B - recommended for users who value unprecedented, branded design, stability, as well as the possibility of system expansion

With the admission of ultra-fast LAN links (from 1Gbps up), the topic of energy costs becomes important. Switching on Energy Efficient Ethernet (EEE) mode on all devices connected to the switch can save up to 80% of energy (Infoworld.com). As the link speed increases, the savings will be even greater. In the United States alone, up to $450 000 000 a year can remain in the pockets of users using Energy Efficient Ethernet (according to Lawrence Berkeley Laboratory - Wikipedia).

• Operating speed 10M/100M/1G/2.5G
• Support for Gigabit LITE < 1Gb/s - gigabit cards on USB 2.0
• autonegotiation half / full duplex
• recommended wiring at least CAT5e
• Slot width: PCI-E 1X
• Support for PCI Express 2.1 1-Lane 2.5/5Gbps
• support pair swap/polarity/skew correction
• crosstalk detection and auto-correction
• fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz
• support IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
• support IEEE 802.1P Layer 2 (prioritizing traffic)
• support for IEEE 802.1Q VLAN (tagging)
• support IEEE 802.1Qav credit-based shaper algorithm
• Support for IEEE 802.3az-2010 (Energy Efficient Ethernet [EEE]- Green Ethernet)
• support IEEE 802.1ad (double VLAN)
• Full Duplex flow control support (IEEE 802.3x)
• support wake-up based on change of link status
• Wake-On-LAN (WoL) and ‘RealWoW! ’ (remote awakening)
• Support 32- and 128-byte Wake-Up Frame fit wake-up frame pattern
• Supports Microsoft WPI (Wake Packet Indication)
• embedded OTP memory (one-time write memory)
• hardware support for ECC (Error Correction Code)
• hardware support for CRC (Cyclic Redundancy Check)
• Transmit/Receive on-chip buffer support
• MSI (Message Signaled Interrupt) and MSI-X PCI support
• support power down/link down power saving/PHY disable mode
• Editable status of LEDs
• editable flickering frequency of LEDs and load cycle
• 128-pin LQFP ‘Green’ package
• ECMA-393 support ProxZzzy Standard for sleeping hosts
• LAN disable with GPIO pin
• Supports LTR (Latency Tolerance Reporting)
• Supports PCIe L1 Substate L1.1 and L1.2
• Support Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2)
• support for jumbo frames up to 16K bytes
• Quad core Receive-Side Scaling (RSS) support
• Protocol Offload support (ARP & NS)
• dimensions 120mm x 72mm x 16mm
• dimensions of the low-profile handle 80mm x 16mm
• weight approx. 48g
