Tinklo plokštė ADE-25RC, 2.5 Gb Ethernet

Trumpai apie prekę

Prekė: Tinklo plokštė ADE-25RC, 2.5 Gb Ethernet. Kategorija: Tinklo plokštės.

• Gamintojas: Axagon
• Modelis: ADE-25RC

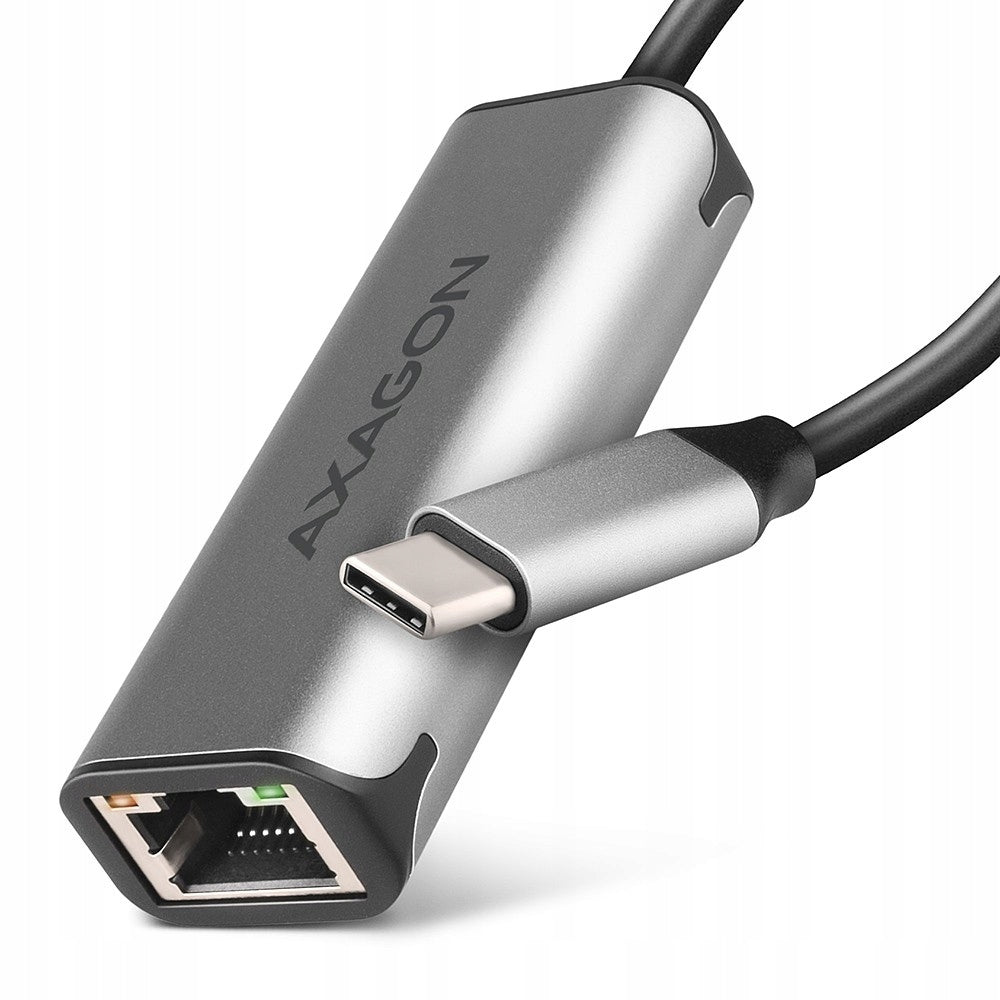

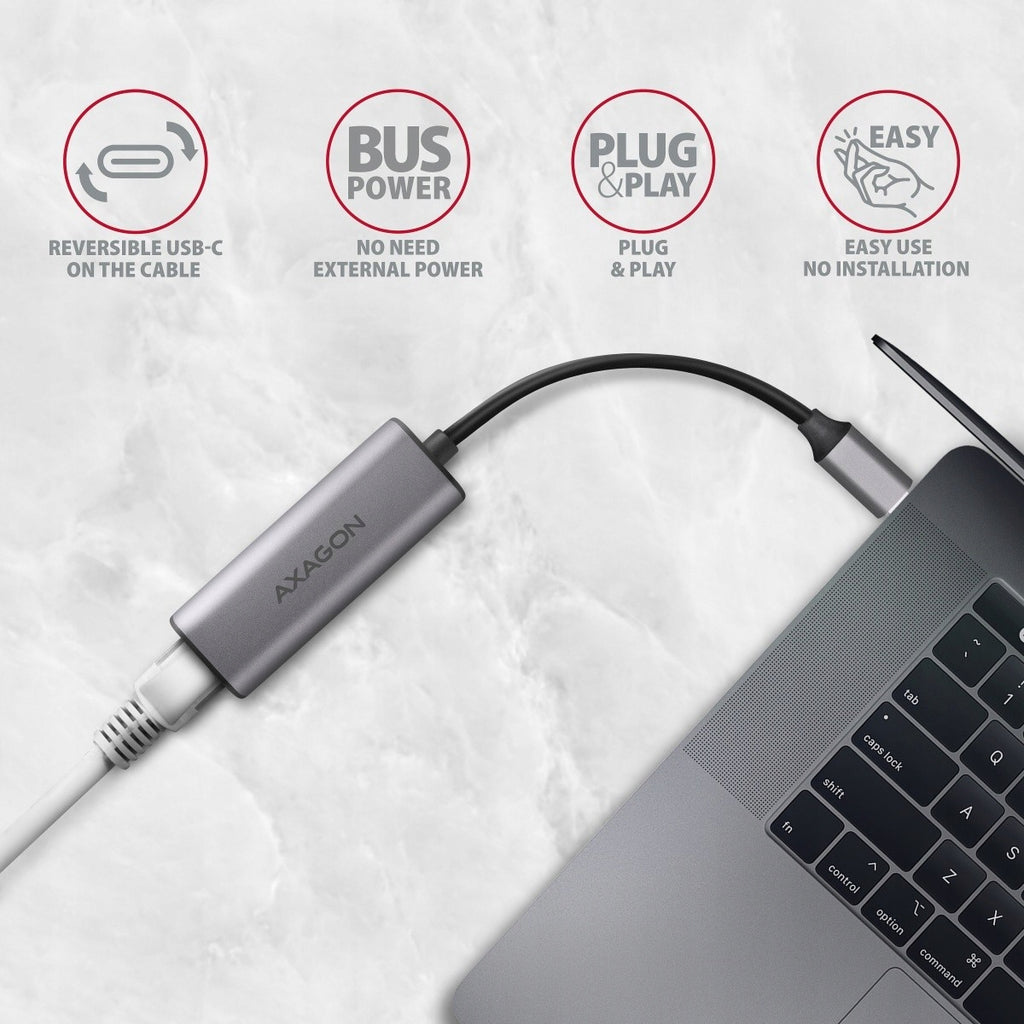

The external AXAGON ADE-25RC network card will easily change the USB-C 3.2 Gen 1 (USB 3.0) port to a high-speed 2.5 Gigabit Ethernet port. It is compatible with transfer speeds of 10/100/1000/2500 Mbit/s. The 2.5 Gbps network card extends the computer with a very fast and stable network connection, adds the missing RJ-45 network connector, another network card or replaces the original, non-working network connection.

In addition to 2.5-gigabit bandwidth, the LAN adapter offers a wide range of features such as. IPv4/IPv6 checkusm to reduce CPU load by checksums, cross-detection and automatic correction, offloading large TCP shipments, support for various Wake-on-LAN function modes, working with virtual VLAN and advanced power management features. The advantage of IEEE 802.3bz is that ordinary Cat 5e and Cat 6 Ethernet cables up to 100 m in length can be used to transfer data at a rate of 2.5 Gbps.

The metal adapter cover is made of aluminum and provides excellent mechanical protection and excellent heat dissipation. With its compact size and minimal weight, it's the perfect addition to your laptops. Support for current versions of Windows, macOS and Linux operating systems allows you to use the adapter on any desktop, laptop or ultrabook equipped with a modern double-sided USB Type-C connector.

On modern operating systems, from Windows 8.1 and later, the adapter offers easy automatic installation without the need to connect to the Internet.

Input:

1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector.

Backwards compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.

Compatible with Thunderbolt 3 and 4.

Support 5.000 / 480 / 12 / 1.5 Mbps (SuperSpeed / High / Full / Low speed).

USB connection port with type C male (male) connector located on a fixed cable with a length of 15 cm.

Output:

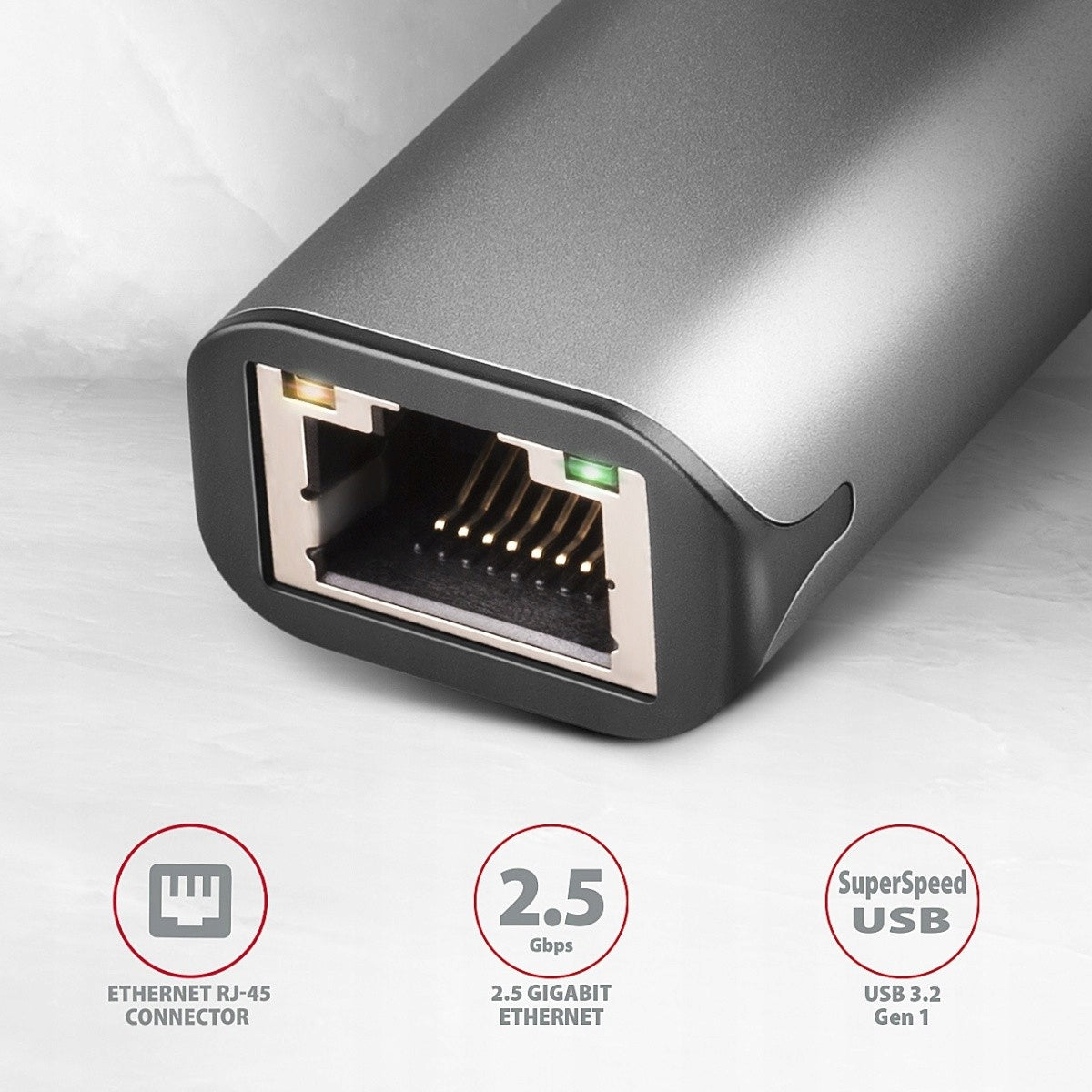

Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.

Supported Ethernet bandwidth 10/100/1000/2500 Mbps.

Supported specifications IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5GBase-T.

10/100/1000/2500 Mbps auto-discovery.

Support NBASE-T specification - allows data transfer rates up to 2.5 Gbps using standard UTP Cat5e cables.

Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load total IPv4 IP/TCP/UDP/ICMP/IGMP&IPv6 TCP/UDP/ICMPv6 control and checksum generation.

Support TCP Large Send Offload V1 and V2.

IEEE 802.1P Layer 2 priority encoding&decoding support.

Support IEEE 802.1Q VLAN tagging.

IEEE 802.3az EEE (Energy Efficient Ethernet) support – reduce power consumption at rest.

Support Jumbo frame.

It supports full duplex transmission with IEEE 802.3x flow control and half duplex transmission with reverse flow control.

Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables.

Hardware support for Cyclic Redundancy Check (CRC) to discover transmission errors.

Support Pair Swap/Polarity/Skew Correction.

Further properties:

Total Plug and Play and Hot Plug support.

CDC-ECM support - automatic installation of drivers on various operating systems.

Powering the adapter via USB bus (bus power) - no further additional power supply is required.

Two LEDs to indicate network activity and connect the adapter to the network.

Dimensions 64 x 24 x 14 mm.

Weight 26 g (total cable).

Length of USB cable 15 cm.

Realtek RTL8156B chipset used.

Support Wake-on-LAN function in different modes:

Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change wake-up.

Support ECMA-393 proxZzzy for sleeping hosts standard to order the network connection of dormant hosts using a server proxy.

Support for RealWoW technology! enables remote excitation via the Internet.

Advanced Power Management Features:

The adapter supports advanced power management of reducing loss in idle or poor network traffic. It also supports advanced power savings when disconnected from an Ethernet cable.

Support for Advanced Configuration Power Management Interface (ACPI).

Power Management offload (ARP&NS) support.

Support for Microsoft Always On Always Connected (AOAC).

Intel Converged Platform Power Management (CPPM) support.

Support Link Power Management (LPM).

Support Operating System-directed Power Management (OSPM).

IEEE 802.3az EEE (Energy Efficient Ethernet) support.

Supported operating systems:

MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported all versions of OS Windows 32-bit and 64-bit), Mac OS X 10.6 and higher, Linux with kernel 2.6.14 and higher.

Package includes:

2.5 Gigabit Ethernet adapter with 15 cm USB-C cable permanently,

multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

packed in a cardboard box with a hole for hanging.

• Type: LAN
• Chipset: Realtek RTL8156B
• Interface: USB-C
• Ports: 1 x 10/100/1000/2500 RJ-45 Port
• Standards: 802.3, 802.3ab, 802.3u
• Supported Operating Systems: Linux, Mac OS, Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7, Windows Server 2012, Windows 8, Windows 8.1, Windows 10, Windows Server 2016
• Included Accessories: 2.5 Gigabit Ethernet Adapter with permanently attached 15 cm USB-C cable, Multilingual Manual, Packaged in a cardboard box with a hanging hole
• Dimensions: 64 x 24 x 14 mm, USB Cable Length: 15 cm
• Weight: 26 g
• Other Specifications: Input: 1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector. Backward compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0. Compatible with Thunderbolt 3 and 4. Supports transmission speeds of 5000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low speed). USB connection port with a male Type-C connector on a permanently attached 15 cm cable. Output: Gigabit Ethernet interface with RJ-45 connector for connection with UTP or STP cable. Supported Ethernet interface transmission speeds: 10/100/1000/2500 Mb/s. Supports IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5GBase-T specifications. 10/100/1000/2500 Mb/s auto-detection. Supports NBASE-T specification – allows data transmission at speeds up to 2.5 Gbps using standard Cat5e UTP cables. Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum calculation and generation. Supports TCP Large Send Offload V1 and V2. Supports IEEE 802.1P Layer 2 priority encoding & decoding. Supports IEEE 802.1Q VLAN tagging. Supports IEEE 802.3az EEE (Energy Efficient Ethernet) – reduces power consumption in idle state. Supports Jumbo frames. Supports full-duplex transmission with IEEE 802.3x flow control and half-duplex transmission with backpressure flow control. Supports Auto MDI/MDIX – crossover detection and auto-correction eliminates the need for crossover cables. Supports hardware Cyclic Redundancy Check (CRC) for detecting transmission errors. Supports Pair Swap/Polarity/Skew Correction. Wake-on-LAN Function Support in Various Modes: Supports sleep modes and remote wake-up via Magic Packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change wake-up. Supports ECMA-393 proxZzzy standard for managing network connections of sleeping hosts via proxy servers. Supports RealWoW! technology for remote wake-up over the internet. Advanced Power Management Features: The adapter supports advanced power management to reduce losses in idle or low network traffic states. It also supports advanced power saving when disconnected from the Ethernet cable. Supports Advanced Configuration Power Management Interface (ACPI). Supports Power Management Offload (ARP & NS). Supports Microsoft Always On Always Connected (AOAC). Supports Intel Converged Platform Power Management (CPPM). Supports Link Power Management (LPM). Supports Operating System-directed Power Management (OSPM). Supports IEEE 802.3az EEE (Energy Efficient Ethernet).
