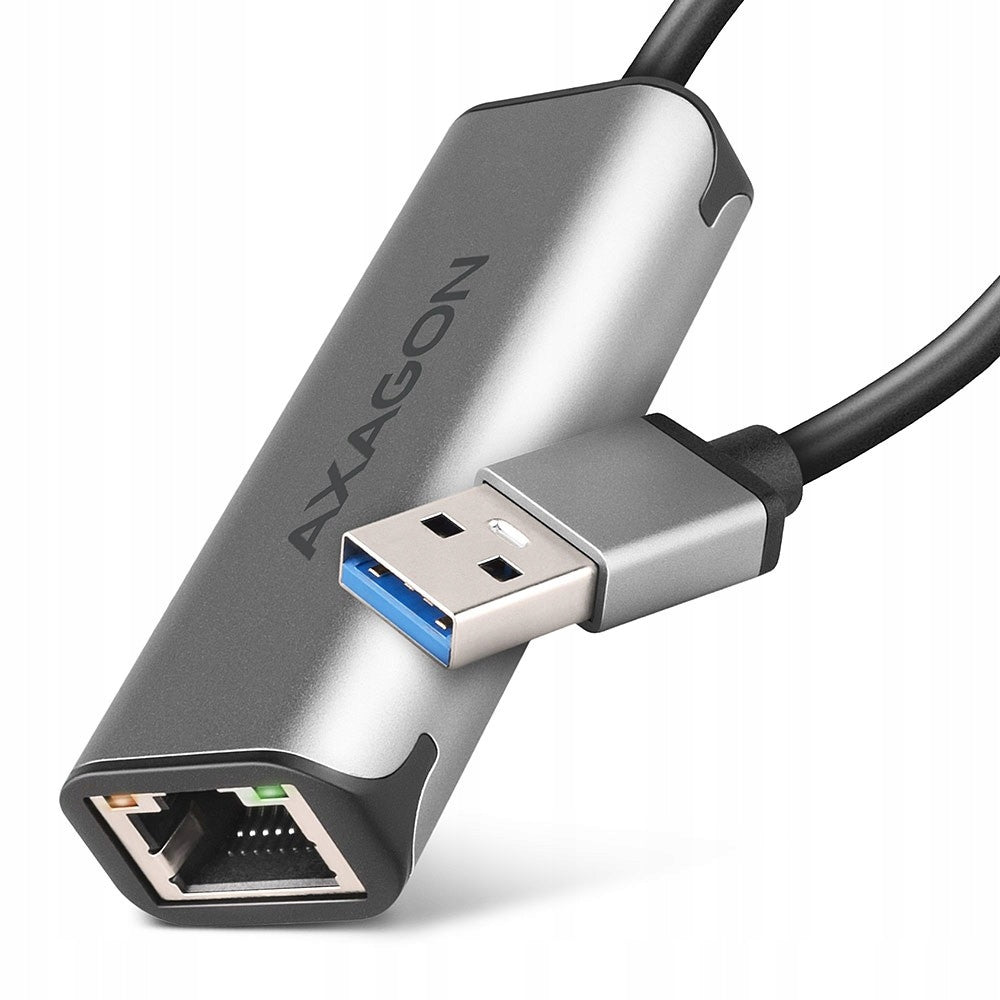

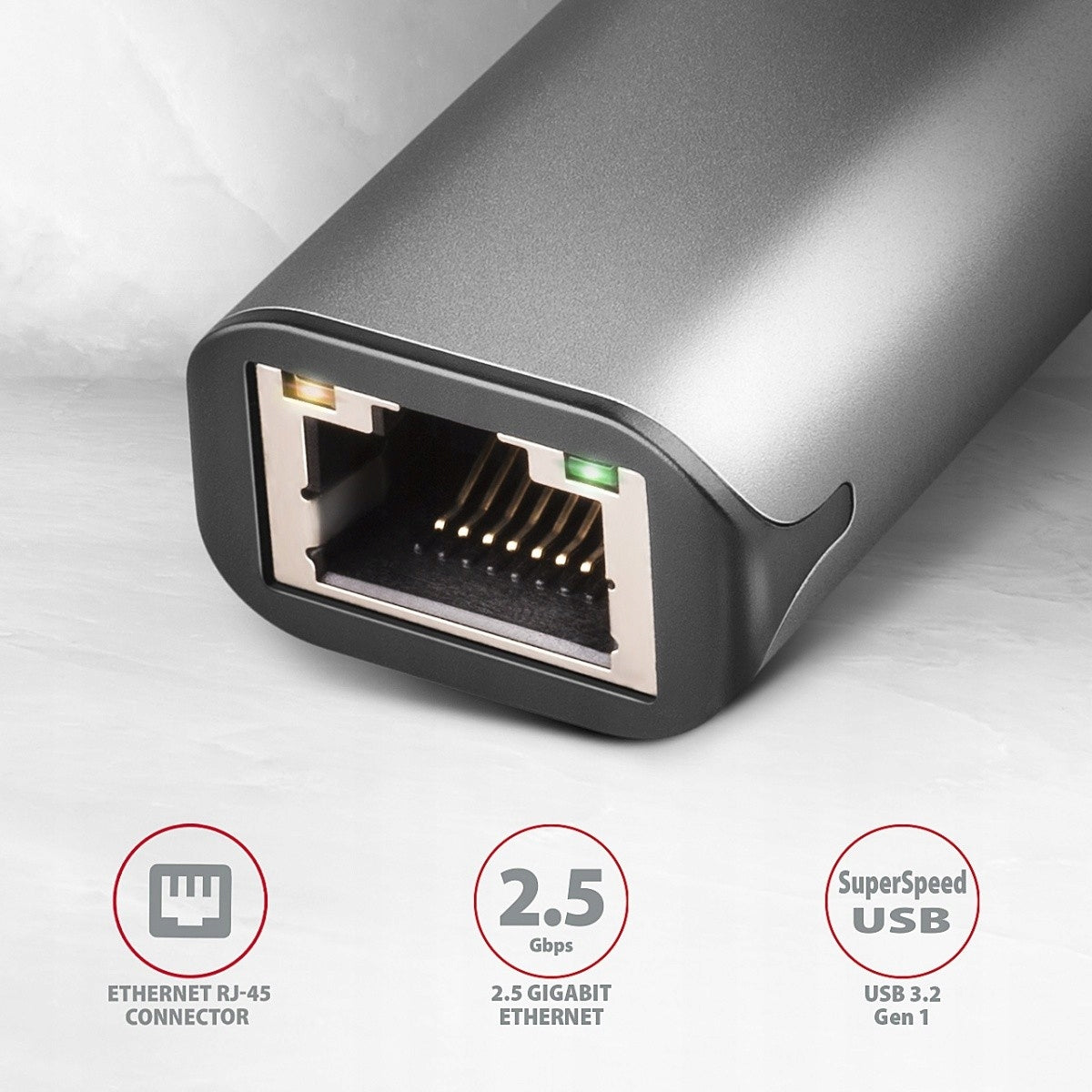

Tinklo plokštė ADE-25R, 2.5 Gb Ethernet

Trumpai apie prekę

Prekė: Tinklo plokštė ADE-25R, 2.5 Gb Ethernet. Kategorija: Tinklo plokštės.

• Gamintojas: Axagon
• Modelis: ADE-25R

The external AXAGON ADE-25R network adapter will easily change the USB-A 3.2 Gen 1 (USB 3.0) port to a high-speed 2.5 Gigabit Ethernet port. It is compatible with transfer speeds of 10/100/1000/2500 Mbit/s. The 2.5 Gbps network card extends the computer with a very fast and stable network connection, adds the missing RJ-45 network connector, another network card or replaces the original, non-working network connection.

The LAN card offers a wide range of features in addition to 2,5 gigabit bandwidth, e.g. IPv4/IPv6 checkusm to reduce CPU load by checksums, cross-detection and automatic correction, offloading large TCP shipments, support for various Wake-on-LAN function modes, working with virtual VLAN and advanced power management features. The advantage of IEEE 802.3bz is that ordinary Cat 5e and Cat 6 Ethernet cables up to 100 m in length can be used to transfer data at a rate of 2.5 Gbps.

The metal adapter cover is made of aluminum and provides excellent mechanical protection and excellent heat dissipation. With its compact size and minimal weight, it's the perfect addition to your laptops. Support for current versions of Windows, macOS, and Linux operating systems allows you to use the adapter on any desktop, laptop, or ultrabook computer.

On modern operating systems, from Windows 8.1 and later, the adapter offers easy automatic installation without the need to connect to the Internet.

Input:

1x USB 3.2 Gen1/SuperSpeed USB port, USB-A male connector.

Backwards compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.

Support 5.000 / 480 / 12 / 1.5 Mbps (SuperSpeed / High / Full / Low speed).

USB connection port with type A male (male) connector placed on a fixed cable with a length of 15 cm.

Output:

Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.

Supported Ethernet bandwidth 10/100/1000/2500 Mbps.

Supported specification IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5GBase-T.

10/100/1000/2500 Mbps auto-discovery.

Support NBASE-T specification - allows data transfer rates up to 2.5 Gbps using standard UTP Cat5e cables.

Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load total IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 control and checksum generation.

Support TCP Large Send Offload V1 and V2.

IEEE 802.1P Layer 2 priority encoding & decoding support.

Support IEEE 802.1Q VLAN tagging.

IEEE 802.3az EEE (Energy Efficient Ethernet) support – reduce power consumption at rest.

Support Jumbo frame.

Support full-duplex transmission with IEEE 802.3x and half-duplex transmission with reverse flow control.

Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables.

Hardware support for Cyclic Redundancy Check (CRC) to discover transmission errors.

Support pair swap/polarity/skew correction.

Further properties:

Total Plug and Play and Hot Plug support.

CDC-ECM support - automatic installation of drivers on various operating systems.

Powering the adapter via USB bus (bus power) - no further additional power supply is required.

Two LEDs to indicate network activity and connect the adapter to the network.

Dimensions 64 x 24 x 14 mm.

Weight 26 g (total cable).

Length of USB cable 15 cm.

Realtek RTL8156B chipset used.

Support Wake-on-LAN function in different modes:

Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change wake-up.

Support ECMA-393 proxZzzy for sleeping hosts standard to order the network connection of dormant hosts using a server proxy.

Support for RealWoW technology! enables remote excitation via the Internet.

Advanced Power Management Features:

The adapter supports advanced power management of reducing loss in idle or poor network traffic. It also supports advanced power savings when disconnected from an Ethernet cable.

Support for Advanced Configuration Power Management Interface (ACPI).

Power Management offload (ARP & NS) support.

Support for Microsoft Always On Always Connected (AOAC).

Intel Converged Platform Power Management (CPPM) support.

Support Link Power Management (LPM).

Support Operating System-directed Power Management (OSPM).

IEEE 802.3az EEE (Energy Efficient Ethernet) support.

Supported operating systems:

MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported all versions of OS Windows 32-bit and 64-bit), Mac OS X 10.6 and higher, Linux with kernel 2.6.14 and higher.

Package includes:

2.5 Gigabit Ethernet adapter with 15 cm USB-A cable permanently,

multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

packed in a cardboard box with a hole for hanging.

• Type:LAN
• Chipset:Realtek RTL8156B
• Interface:USB
• I/O ports:1 x 10/100/1000/2500 RJ-45 port
• Standards:802.3,802.3ab,802.3u
• Supported operating systems:Linux,Mac OS,Windows Server 2008,Windows 7,Windows Server 2012,Windows 8,Windows 8.1,Windows 10,Windows Server 2016,Windows Server 2019,Windows Server 2022,Windows 11
• Accessories included:2.5 Gigabit Ethernet Adapter with USB-A Cable 15 cm Permanently Multilingual Manual Packaged in Cardboard Box with Hole for Hanging
• Dimensions:64 x 24 x 14 mm USB cable length 15 cm
• Weight:26 g
• Other parameters:Input:1x USB 3.2 Gen1 / SuperSpeed USB port, USB-A male connector. Backwards compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0. Support 5.000 / 480 / 12 / 1.5 Mbps (SuperSpeed / High / Full / Low speed). USB connection port with type A male (male) connector placed on a fixed cable with a length of 15 cm. Output: Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection. Supported transmission rates of the Ethernet interface are 10/100/1000/2500 Mb/s. Supported specification IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5GBase-T. 10/100/1000/2500 Mbps auto detection. Support NBASE-T specification - allows data transfer rates up to 2.5 Gbps using standard UTP Cat5e cables. Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load total IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 control and checksum generation. Support TCP Large Send Offload V1 and V2. IEEE 802.1P Layer 2 priority encoding & decoding support. Support IEEE 802.1Q VLAN tagging. IEEE 802.3az EEE (Energy Efficient Ethernet) support – reduce power consumption at rest. Support Jumbo frame. Support full-duplex transmission with IEEE 802.3x and half-duplex transmission with reverse flow control. Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables. Hardware support for Cyclic Redundancy Check (CRC) to discover transmission errors. Support pair swap/polarity/skew correction. Support Wake-on-LAN in various modes: Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and Link Change wake-up. Support ECMA-393 proxZzzy for sleeping hosts standard to order the network connection of dormant hosts using a server proxy. Support for RealWoW technology! enables remote excitation via the Internet. Advanced Power Management Features:Adapter supports advanced power management for reducing loss in idle or poor network traffic. It also supports advanced power savings when disconnected from an Ethernet cable. Support for Advanced Configuration Power Management Interface (ACPI). Power Management offload (ARP & NS) support. Support for Microsoft Always On Always Connected (AOAC). Intel Converged Platform Power Management (CPPM) support. Support Link Power Management (LPM). Support Operating System-directed Power Management (OSPM). IEEE 802.3az EEE (Energy Efficient Ethernet) support.
