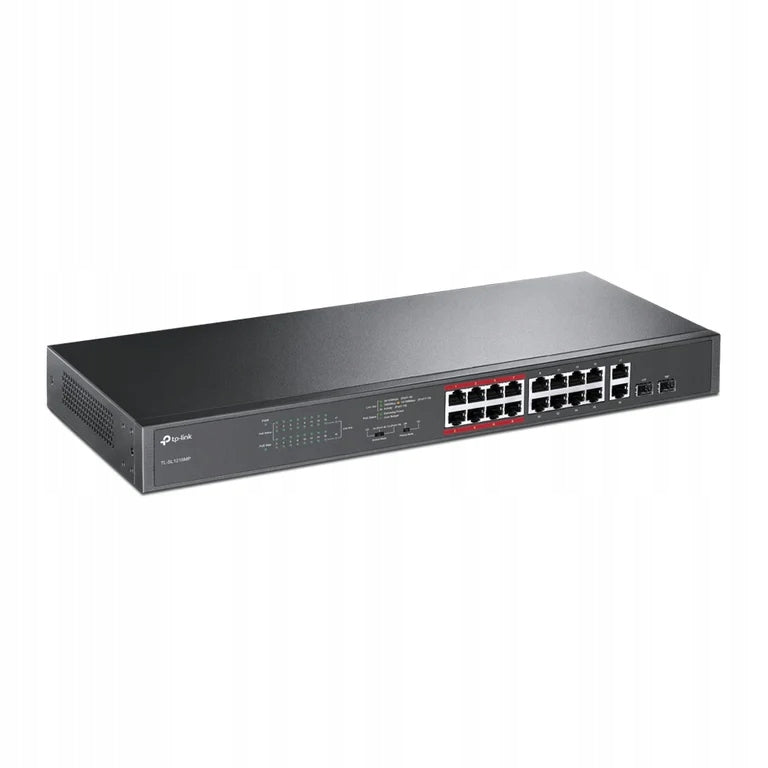

Tinklo komutatorius TP-Link TL-SL1218MP, 18 prievadų, Fast Ethernet, nevaldomas

Trumpai apie prekę

Prekė: Tinklo komutatorius TP-Link TL-SL1218MP, 18 prievadų, Fast Ethernet, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SL1218MP

TP-Link TL-SL1218MP. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 16. Address table size: 8000 inputs, Routing/switching throughput: 7,2 Gbit/s. Communication standards: IEEE 802.3af, IEEE 802.3at. PoE support. Possibilities of mounting in the frame

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 7,2 Gbit/s
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 10000
• Data transfer - Packet buffer memory: 4,1 MB
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 16
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 192 W
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 16
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Ports and interfaces - Number of Fast Ethernet ports (copper): 16
• Ports and interfaces - Number of Gigabit Ethernet ports: 2
• Ports and interfaces - Number of SFP Combo ports: 2
• Performance - LEDs: LAN, PoE, Status
• Performance - Automatic MDI/MDI-X: Yes
• Power - Power supply included: Yes
• Power - Power consumption: 18,7 W
• Power - Power Source: AC
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - PoE Support: Yes
• Power - Heat emission: 741,15 BTU/h
• Design - Stackable product: No
• Protection - MAC Address Filtering: Yes
• Construction - Rack mounting options: Yes
• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Network - Flow control support: Yes
• Features - Communication standards: IEEE 802.3af, IEEE 802.3at
• Features - Colour of product: Black
• Features - Number of fans: 2 went.
• Management Features - Switch Type: Not Managed
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 90%
• Working conditions - Temperature range (operation): 0 - 40 °C
• Packaging data - Quick Start Guide: Yes
• Packaging data - User's guide: Yes
• Logistics data - Harmonised system code (HS): 85176990
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 180 mm
• Weight and sizes - Product height: 44 mm
• Content of the package - Cables: LAN (RJ-45)
• Contents of the package - User Manual: Yes
• Classification - Manufacturer code: TL-SL1218MP
• Classification - EAN: 1210002617147
• Classification - Product ID: 79344078
