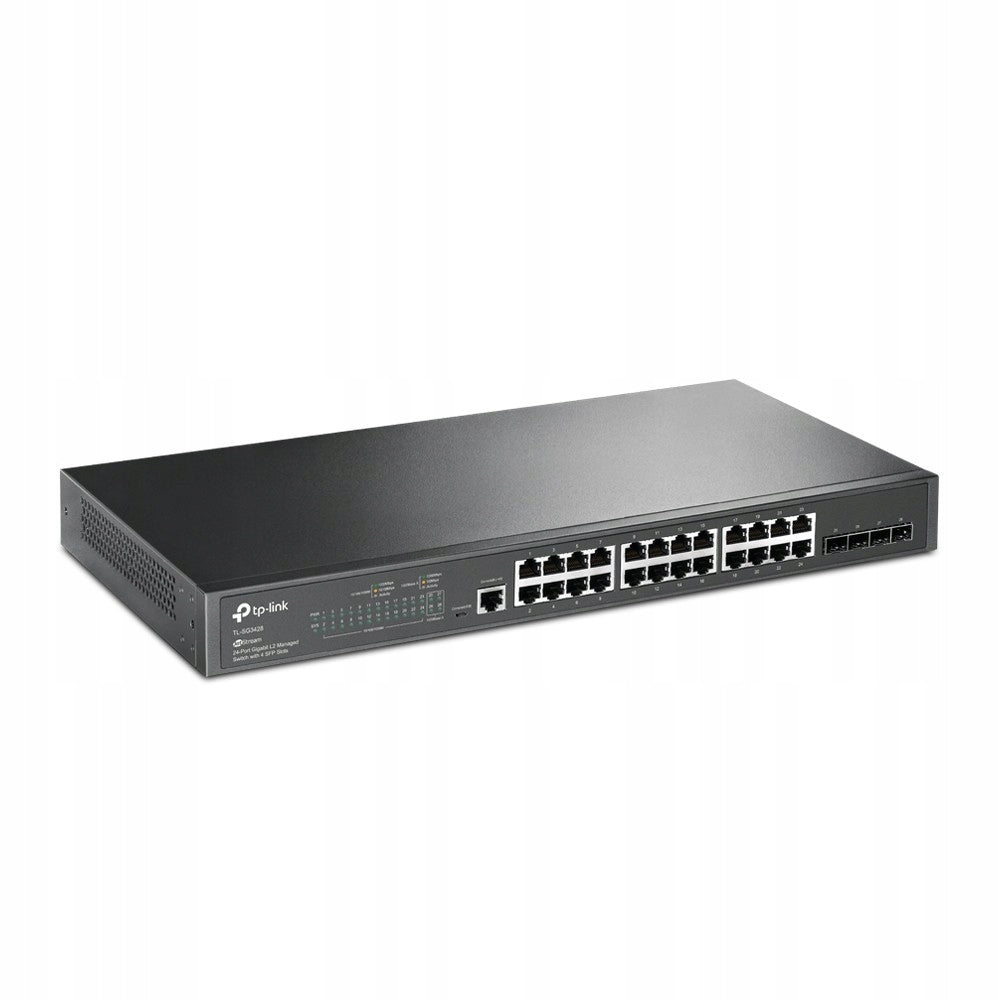

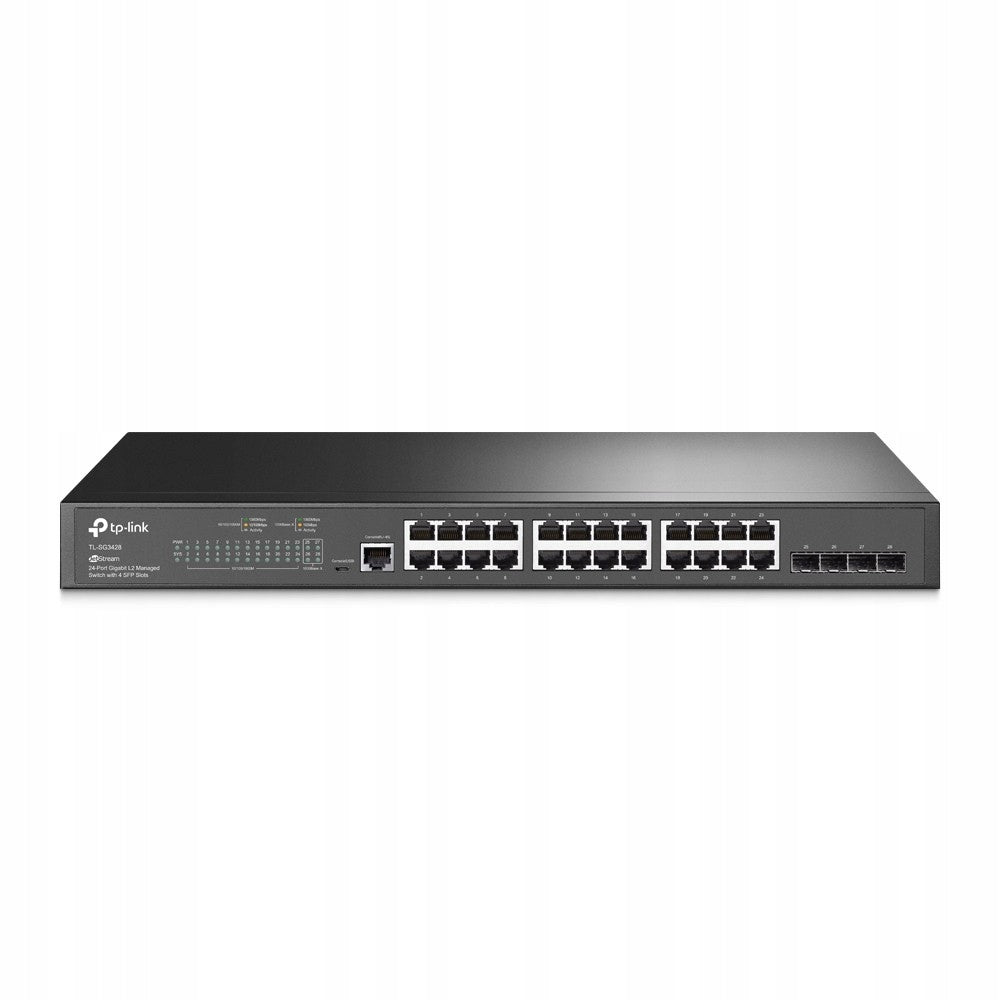

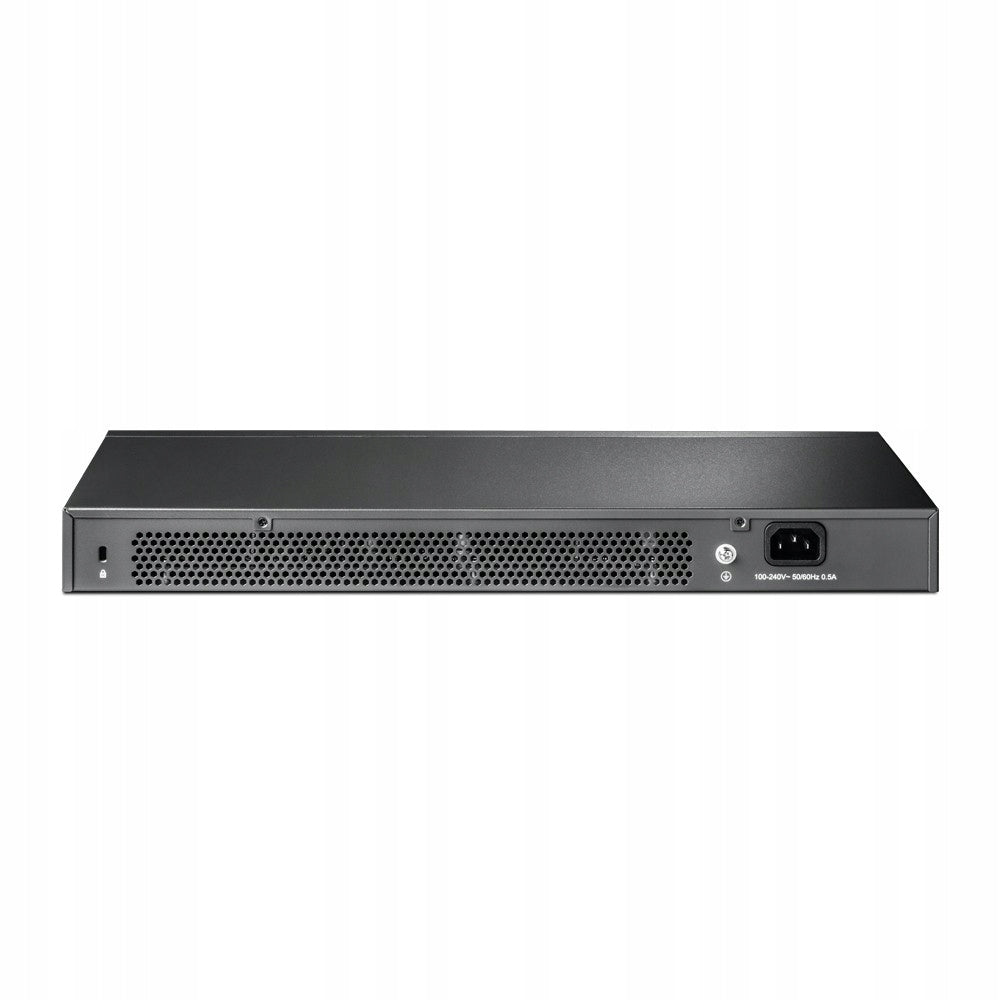

Tinklo komutatorius TP-LINK SG3428

Trumpai apie prekę

Prekė: Tinklo komutatorius TP-LINK SG3428. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: SG3428

• Manufacturer: TP-LINK
• Manufacturer code: SG3428
• EAN code: 1210002611886

Comprehensive Gigabit Switch for Completing the Omada Platform

• Software-defined network infrastructure (SDN) control with cloud access
• Omada's software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing end-to-end central management from the cloud. Omada enables you to create a highly scalable network that is fully controlled through a single interface. This translates into seamless wired and wireless connections that are essential in hospitality, education, retail, offices and many other industries and places.

• Switch class:Manageable
• Application:Medium and large companies
• Switching modes:L2,L2+,L3,L4
• Network architecture :GigabitEthernet
• Number of ports 10/100/1000 Mbps:24
• Number of SFP ports:4
• Forward mode:Store-and-forward
• Capacity:56 GB/s
• Forwarding speed:41.66 MB/s
• MAC address array size:8
• Support Jumbo frames:No
• Jumbo frame size:9 KB
• VLAN:VLAN Groups Max Groups 4K VLAN 802.1Q Tagged VLAN MAC VLAN: 12 entries VLAN Protocol: Protocol 16 Template, VLAN 16 GVRP VLAN VPN Protocol (QinQ) QinQ based on port Selective QinQ Voice VLAN
• Supported protocols and standards:8 priority queues Prioritizing 802.1p CoS/DSCP Planning SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Bandwidth control Port/Flow based bandwidth limitation Smoother performance Action for Flows Mirror (to supported interface) Redirect (to supported interface)

• QoS:Advanced QoS features To provide better audio, data and video transmission in a single network traffic, network administrators can prioritize e.g. for individual IP addresses, MAC addresses, TCP or UDP ports, etc. This ensures that audio and video transmission is smooth, clear, and lag-free.
• Security:Network SecuritySwitch functions such as: IP-MAC-Port bindings, port protection, Storm Control, DHCP Snooping protect against many network attacks. The use of access control lists (ACLs, L2 to L4) prevents access to specific network resources; the refusal to send packets can be set for specific source or destination MAC addresses, IP addresses, TCP/UDP ports and even VLAN IDs. In addition, the switch uses 802.1X encryption in conjunction with RADIUS/Tacacs+ server features to authenticate users who want to access the network.
• Management, monitoring, configuration:Management and flexibility at the business levelTL-SG3428 is simple to use and manage. Device management can be done in different ways, e.g. through an intuitive graphical user interface in a web browser (GUI) or command line interface (CLI). Packet transfer can be protected by SSL or SSH encryption. Support for SNMP (v1/v2c/v3) and RMON protocols enables the switch to transmit relevant status information and capture unforeseen events. GUI via Command Line Interface (CLI) via console port, SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 Groups) DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration System Monitoring Processor Diagnostics Cable
• Functions L2:Functions of Layer 2 and Layer 2+ switchIn order to increase the number of possible applications, TL-SG3428 switches are equipped with a number of motion management functions in the second layer,including support for 802.1Q VLAN, port mirroring, STP/RSTP/MSTP,Port aggregation and 802.3x flow control function. IGMP snooping enables intelligent multicast streaming only to specific subscribers,and IGMP throttling and IGMP filtering effectively restrict access to multicast transmissions for unauthorized users. The TL-SG3428 also supports static routing, which allows you to segment your network and increase its performance.
• L3 Features:16 IPv4/IPv6 Interfaces Static Routing 48 Static Routes Static ARP 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay
• Other features:Service provider facilitiesTL-SG3428 is ideal for Internet service providers due to the availability of the following features: QinQ, L2TP, ID Insertion PPPoE, IGMP authentication and many more. OAM 802.3ah and Device Connection Detection Protocol (DLDP) make network monitoring and management easier. IPv6TL-SG3428 support multiple IPv6 functions such as IPv4/IPv6 Dual Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, PMTU Discovery and IPv6 Neighbor Discovery.
• Housing type:Rack
• Fan :No
• Power Supply :Internal
• Power consumption:19.22 W
• Accessories included:TL-SG3428 Switch Power Cable Quick Installation Guide Mounting Hardware Rubber Stands
• Power supply:100-240 V AC~50/60 Hz
• Dimensions:440 × 180 × 44 mm (17.3 × 7.1 × 1.7 inches)
• Other parameters:Working environmentAdmissible operating temperature: 045 (32113 ); Permissible storage temperature: -4070 (-40158 ) Permissible air humidity: 1090% RH without condensation Permissible storage humidity: 590% RH without condensationCertificatesCE, FCC, RoHS
• Data Act:Link
