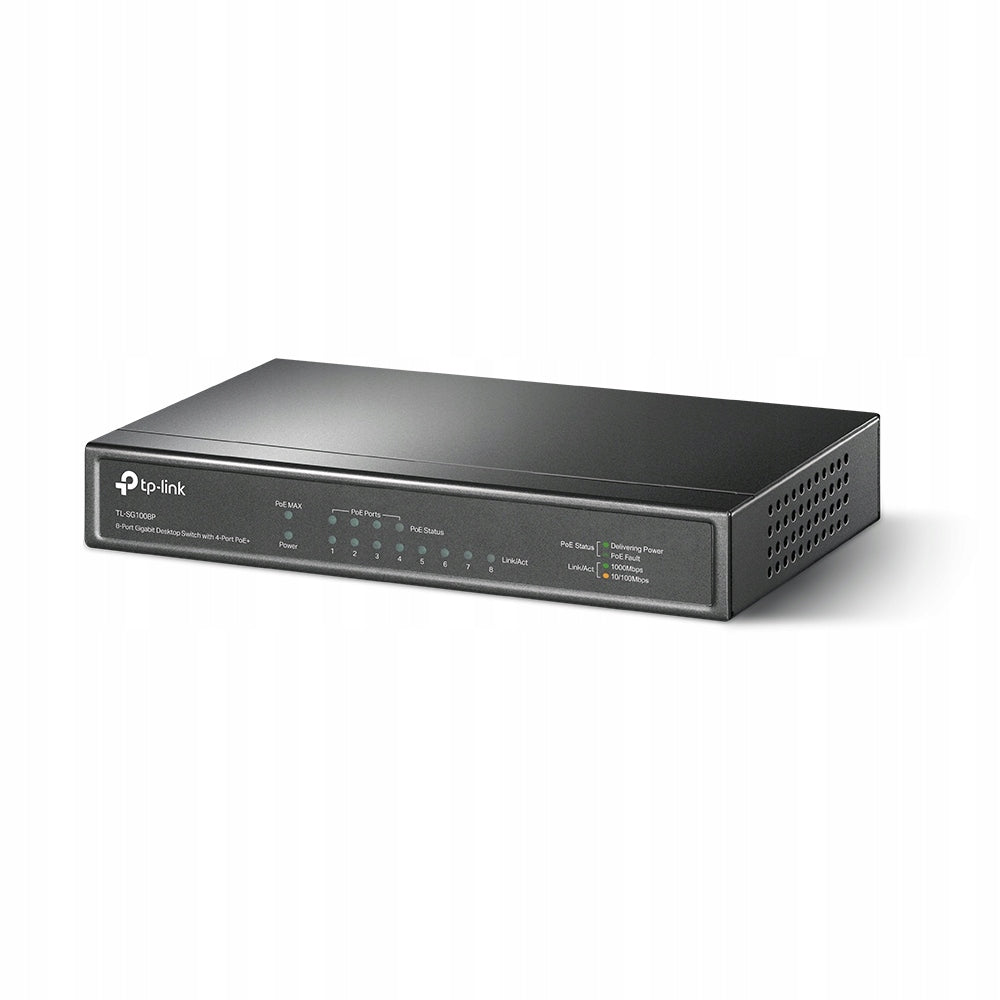

Tinklo komutatorius TP-LINK SG1008P, 8x 10/100/1000 Mb/s, 4x PoE+

Trumpai apie prekę

Prekė: Tinklo komutatorius TP-LINK SG1008P, 8x 10/100/1000 Mb/s, 4x PoE+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG1008P

Desktop Switch, 8 Gigabit Ports, 4 PoE Ports

P/N : TL-SG1008P

Key Features :

• 8 RJ45 10/100/1000 Mbps ports.
• 4 PoE+ ports, power supply and data transfer with one cable.
• Compatible with PoE-powered devices operating in IEEE 802.3af/at standards.
• No need to preconfigure the device.
• QoS 802.1p/DSCP enables seamless data transfer without lag.
• Up to 30W of PoE power on each PoE port.
• Up to 64W total PoE power.

Switch designed for many applications – 4 PoE ports with a total power of 64 W

Compliance with 802.3af/at PoE+ standards means that up to 30W of power is available on each PoE port. Up to 64W of total PoE power* of the switch equipped with 4 PoE ports is the perfect solution for m.in. for monitoring systems, offices, dormitories and small businesses. The device is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Intelligent management of energy consumption

When the total power consumption exceeds 64W, the Intelligent Power Consumption Management feature turns off the lowest priority port power supply to ensure that higher priority ports are powered and thus protect the device from overload. This feature also enables automatic detection of the PoE power required by the device and protects devices with and without PoE support from damage.

Advanced features for enhanced performance

Qos

Smooth network traffic

Using QoS, network administrators can prioritize network traffic by ensuring smooth voice and video transmission.

IGMP

Snooping

Traffic Optimization for IPTV

The IGMP Snooping function ensures optimal media transmission, which significantly improves network performance and thus the operation of services such as IPTV.

Durable metal housing

Protection for sensitive switch components is provided by a durable housing, made of high-quality metal. Such a solid protection guarantees long-term and stable operation of the device. TL-SG1008P is a reliable product, which is confirmed by numerous tests based on rigorous standards.

* Total PoE power was estimated based on laboratory test results. These values are not guaranteed and may vary depending on customer and work environment constraints.

HARDWARE FEATURES

Ports

8 RJ45 10/100/1000 Mbps ports

Automatic connection speed negotiation and automatic patching (Auto-MDI/MDIX)

Network wiring

10BASE-T: UTP cable cat. 3, 4 or 5 (up to 100m)

STP cable EIA/TIA-568 100Ω (up to 100m)

100BASE-TX: UTP cable cat. 5 or 5e (up to 100m)

STP cable EIA/TIA-568 100Ω (up to 100m)

1000BASE-TX: UTP cable cat. 5, 5e, 6 or higher (up to 100m)

STP cable EIA/TIA-568 100Ω (up to 100m)

Fanless

Yes

Physical security

Yes

Power supply

External power supply (output: 53,5 V DC / 1,31 A)

Package redirection speed

11,904 Mp/s

PoE ports (RJ45)

Standards: 802.3 af/at

PoE Ports: Port 1 - Port 4

Total PoE power supply: 64 W

MAC address table

4K

Jumbo frames

16 KB

Switching performance

16 Gbps

Dimensions (S x G x W)

171*98*27 mm (6,7*3,9*1,1 inch)

Max energy consumption

5,39W (220V/50Hz, no connected PoE powered device)

75 W (220 V/50 Hz, with 64 W PoE powered device connected)

Amount of heat generated

18,38 BTU/h (no connected PoE powered device)

225,75 BTU/h (64W connected PoE powered device)

SOFTWARE FUNCTIONS

Method of transmission

Store-And-Forward

Advanced functions

Compatible with PoE devices operating in IEEE 802.3af/at standards

Prioritizing ports

Automatically remember and blank MAC addresses

Flow control IEEE802.3x

QoS 802.1p/DSCP

OTHER

Certificates

FCC, CE, RoHS

Content of packaging

• TL-SG1008P

• Power supply

• Installation instructions

Working environment

Permissible operating temperature: 0℃~40℃ (32℉~104℉)

Permissible storage temperature: -40℃~70℃ (-40℉~158℉)

Permissible air humidity: 10%~90%, non-condensing

Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	1.18 kg
Parametry	Number of ports	8
Parametry	Number of LAN (RJ-45) ports	8
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	0845973021160
Parametry	Manufacturer code	TL-SG1008P
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
