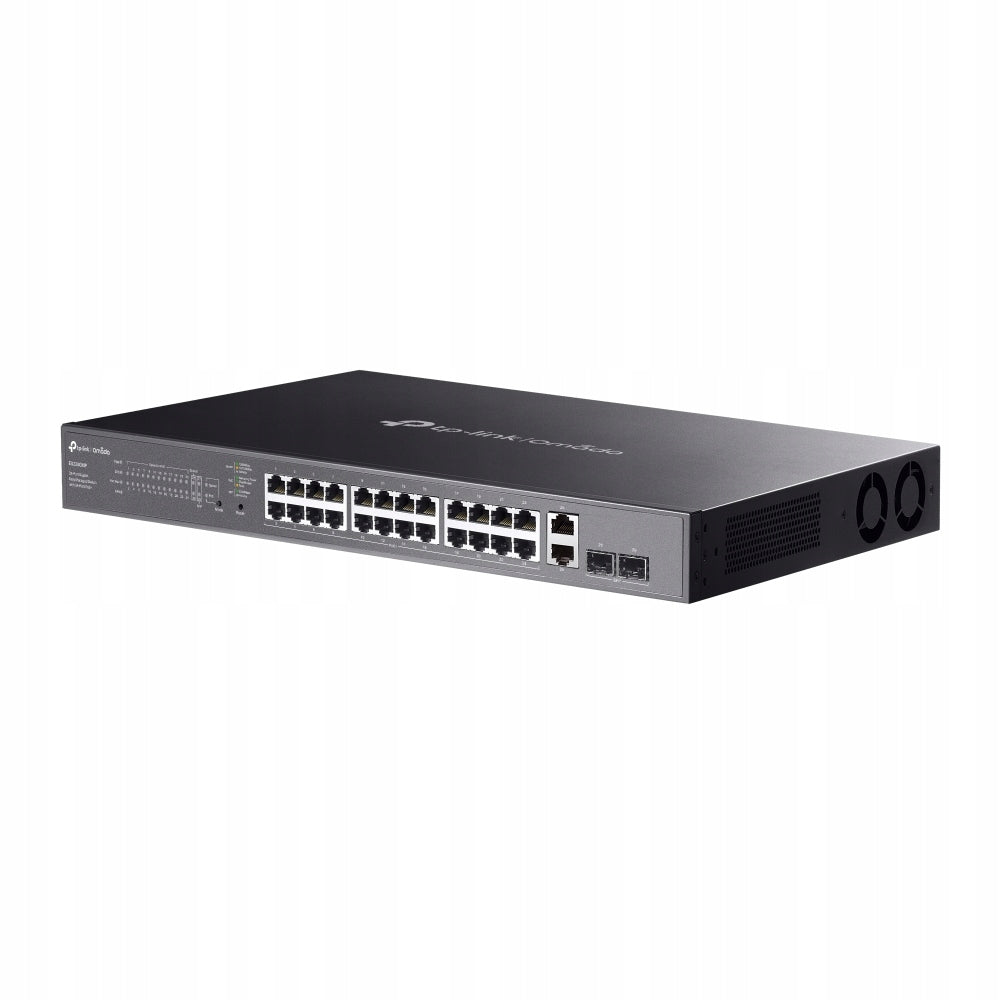

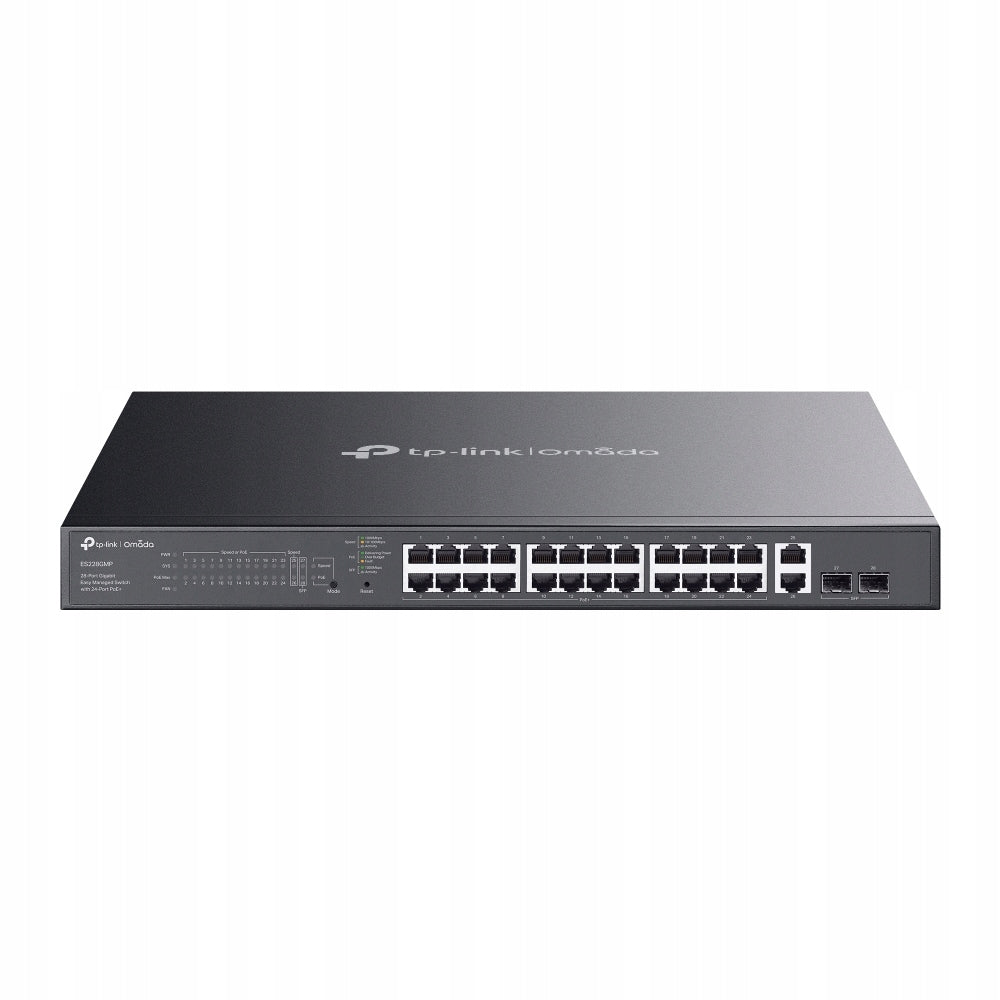

Tinklo komutatorius TP-LINK ES228GMP

Trumpai apie prekę

Prekė: Tinklo komutatorius TP-LINK ES228GMP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: ES228GMP

Omada Easy Managed Switch, 28 Gigabit Ports Including 24 PoE+ Ports

P/N : ES228GMP

Key Features :

• 26 gigabit RJ45 ports (including 24 PoE+ 802.3at/af compatible ports)
• 2 gigabit SFP slots
• Total power supply PoE up to 384W. Up to 30W power on each PoE port*
• Easy to use thanks to Plug-and-Play operation, which allows you to get an instant connection, and simple configuration gives you access to additional functions
• Centralized management in the cloud via the Omada† website or application
• Up to 250m PoE power range**, QoS△, PoE Auto Recovery‡ and Port isolation for reliable monitoring networks
• Automatic loop prevention, VLAN and IGMP Snooping
• Durable metal housing with rack mounting capability

FEATURES EQUIPMENT

Ports

• 24 RJ45 PoE+ 10/100/1000 Mbps ports (802.3af PoE and 802.3at PoE+)

• 2 RJ45 10/100/1000 Mbps ports

• 2 gigabit SFP slots

• Automatic negotiation / Automatic MDI/MDIX

Number of fans

2

Assembly

Can be mounted in the rack

Physical security

Yes

Power supply

100 – 240V AC, 50/60Hz

PoE ports (RJ45)

• Compliance with 802.3af PoE and 802.3at PoE+

• PoE Ports: 24

• Total PoE power supply of 384W on PoE+ ports, up to 30W power per port

• Fast PoE and Perpetual PoE

• PoE Auto Recovery‡

• Up to 250m PoE transmission range**

Dimensions (S x G x W)

440 × 330 × 44 mm

(17,3 × 13,0 × 1,7 inches)

Overvoltage protection

±6kV

PERFORMANCE

• Switching performance: 56 Gbps
• Package redirection speed: 41,67 Mp/s
• MAC address table: 8K
• Package buffer: 4 Mb
• Jumbo frames: 15 KB

SOFTWARE FUNCTIONS

Quality of Service

• QoS based on ports/802.1p/DSCP

• 8 priority queues

• Prioritization schedule mode

WRR (Weighted Round Robin)

• Queue weight configuration

• Bandwidth control

- Port-based transfer speed limitation

• Storm Control

- Multiple control modes (kbps/p/s)

- Broadcast/Multicast/Unknown-Unicast△ transmission control

Features of Layer 2 switch

• Static link aggregation

• Loop Prevention / Loopback Detection

• Flow control

- Flow control 802.3x

• Mirroring

- Port mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port statistics

- Port Mirroring Status

- Traffic statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLANs

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

- Max. 32 groups of VLANs

- 4K VID

Method of transmission

Store-And-Forward

MANAGEMENT

Omada application

Yes. Requires the use of the Omada Hardware Controller, Cloud-based Omada Controller or Omada Software Controller.

Centralized management

• Cloud-based Omada Controller

• Omada hardware controller

• Omada software controller

Access to the cloud

Yes. Requires the use of the Omada Hardware Controller, Cloud-based Omada Controller or Omada Software Controller.

Support-free ZTP configuration

Yes. Requires the use of a cloud-based Omada Controller.

Functions of the management panel

• Web GUI graphical interface

• DHCP client

• Diagnostics of wiring

• Automatic detection of devices†

• Group configuration†

• Group software update†

• Unified configuration†

OTHER

Certificates

FCC, CE, RoHS

Content of packaging

• ES228GMP

• Power cable

• Mounting brackets

• Rubber feet

• Screws

• Installation instructions

Working environment

• Permissible operating temperature: -5℃~45℃ (23℉~113℉)

• Permissible storage temperature: -40℃~70℃ (-40℉~158℉)

• Permissible air humidity: 10%~90%, non-condensing

• Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	4.5 kg
Parametry	Number of ports	28
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	1210002600989
Parametry	Manufacturer code	ES228GMP
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
