Tinklo komutatorius Planet FGSW-2624HPS4

Trumpai apie prekę

Prekė: Tinklo komutatorius Planet FGSW-2624HPS4. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: FGSW-2624HPS4

Planet FGSW-2624HPS4 Custom made

Planet

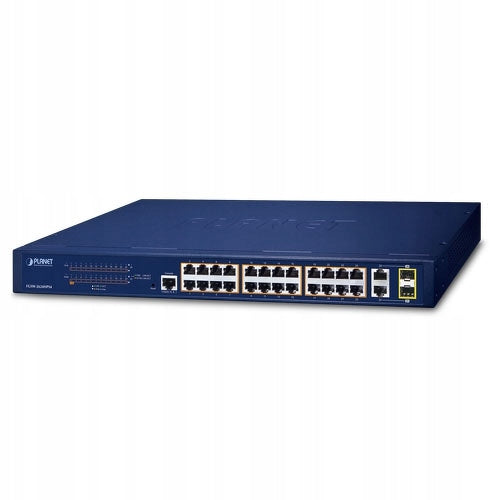

The refreshed PLANET FGSW-2624HPS4 Layer 2 PoE+ Managed Switch is designed for enterprises and industries where the PD network can be centrally managed. Switch management features have been expanded to include intelligent PoE management, IPv6, ACL, GVRP and more.

Cost-optimized managed PoE+ switch with L2/L4 switching and security

PLANET FGSW-2624HPS4 is an ideal managed PoE+ switch that provides a cost-effective advantage to the local area network and is widely accepted in small and medium-sized business office networks. It offers intelligent Layer 2 data packet switching and management features, a user-friendly network interface, and stable operation. The model is IEEE 802.3at Power over Ethernet Plus (PoE+) compliant at an affordable price; the FGSW-2624HPS4 is equipped with 24 10/100BASE-TX Fast Ethernet ports and 2 gigabit TP/SFP combo interfaces with internal power system. With 24 Fast Ethernet ports integrated with the 802.3at PoE+ injector function and a total power budget of up to 370W, it offers an affordable, secure and reliable rack-mountable power solution for small and medium-sized businesses deploying Power over Ethernet networks or requiring enhanced data security and network traffic management.

IPv6 Network Solution

With support for IPv6/IPv4 protocols and easy and user-friendly management interfaces, FGSW-2624HPS4 is the ideal choice for IP surveillance, VoIP and wireless service providers to connect to an IPv6 network. It also helps small and medium-sized businesses enter the IPv6 era with the lowest investment and without having to replace network infrastructure, even if ISPs create an IPv6 FTTx edge network.

Built-in unique PoE features for monitoring management

As a managed PoE switch for monitoring networks, FGSW-2624HPS4 has the following intelligent PoE management features:

• PD Alive Check
• PoE port sequence
• PoE Schedule

Intelligently check the activity of the powered device

FGSW-2624HPS4 can be configured to monitor the status of a connected PD device in real time using a ping action. When the PD device stops working and remains unanswered, the FGSW-2624HPS4 will resume powering the PoE port and bring the PD back to work. This will significantly increase network reliability by resetting the PD power source through the PoE port, thereby reducing the administrator burden of management.

PoE port sequence

To prevent all PoE ports of the FGSW-2624HPS4 switch from being active at the same time after the switch is started, the PoE ports of the FGSW-2624HPS4 switch can be configured so that each port is activated at a specified interval. In addition, the "Delay" setting delays the power supply of each port when the FGSW-2624HPS4 is fully operational.

PoE Schedule for Energy Saving

In addition to its IP monitoring application, the FGSW-2624HPS4 is certainly suitable for building any PoE network, including VoIP and wireless LAN. In line with the energy saving trend around the world and contributing to the protection of the environment on Earth, FGSW-2624HPS4 can effectively control the power supply in addition to the ability to deliver high power. The "PoE Schedule" feature helps you turn PoE power on or off for each PoE port at specific intervals, and it's a powerful feature that helps small and medium-sized businesses and enterprises save energy and budget.

Extending the Ethernet data transmission distance

In "Extended" mode, the FGSW-2624HPS4 operates in 10 Mbps duplex mode per port, but can support PoE output power up to a distance of 250 meters, overcoming the limit of 100 meters on an Ethernet UTP cable.

Solid Layer 2 features

The FGSW-2624HPS4 switch can be programmed for advanced management functions such as Multiple Spanning Tree Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop detection and GVRP, voice VLAN and Link Layer Discovery Protocol (LLDP). The included Layer 2 protocol is designed to help detect basic information about adjacent devices in your local broadcast domain. Other features include port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control.

Increased safety and traffic control

FGSW-2624HPS4 offers a comprehensive list of access control (ACL) from Layer 2 to Layer 4 to enforce security at the network edge. It can be used to restrict network access by rejecting packets based on the source and destination IP/MAC addresses or defined common network applications. FGSW-2624HPS4 also provides DHCP Snooping, ARP Inspection and MAC Verification features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. MAC/IP address binding per port and MAC address binding are also available. A network administrator can now build highly secure enterprise networks with much less time and effort than before.

Cybersecurity networking solution to minimize security risks

Cybersecurity features that require virtually no effort or cost include switch management protection and enhanced security for mission-critical networks. Both SSH and SSL protocols are used to provide strong protection against advanced threats. A network administrator can now build highly secure enterprise networks with much less time and effort than before.

Efficient management

For efficient management, FGSW-2624HPS4 is equipped with Web, Telnet and SNMP management interfaces. With its built-in Web-based management interface, FGSW-2624HPS4 offers easy-to-use, platform-agnostic management and configuration features. With support for the Simple Network Management Protocol (SNMP), FGSW-2624HPS4 can be managed using any standard management software. For text management, you can access the switch through Telnet. What’s more, FGSW-2624HPS4 offers secure remote management with support for SNMPv3 connections that encrypt packet content during each session.

Flexible and extensible Uplink solution

FGSW-2624HPS4 provides 2 additional Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper for connection to network monitoring devices such as NVR, video streaming server or NAS for easy monitoring management. In turn, SFP fiber optic sockets occupied by 1000BASE-SX/LX SFP (small form-factor pluggable) fiber optic transceivers allow connection of the device to a backbone switch and a long-distance monitoring center. The distance can be increased from 550 meters to 2 km (multimode fiber) to 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for industrial data center and distribution applications.

• Redundant Power Supply: No
• Managed: Yes
• Main Port Type: RJ45
• Main Port Bandwidth: Fast Ethernet
• PoE Support: Yes
• PoE Power Budget: 370 W
• Number of PoE Ports: 24
• Quantity per Master Pack: 4
• Height: 4.4 cm
• Width: 44.12 cm
• Depth: 20.75 cm
• Weight: 2.787 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711605281249
Parametry	Manufacturer code	FGSW-2624HPS4
