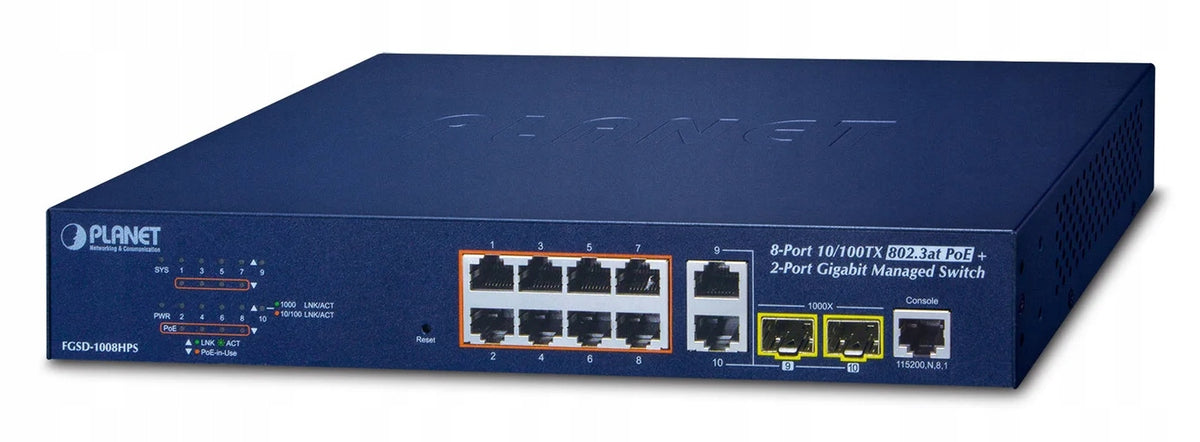

Tinklo komutatorius PLANET FGSD-1008HPS, valdomas, 8x Fast Ethernet (10/100)

Trumpai apie prekę

Prekė: Tinklo komutatorius PLANET FGSD-1008HPS, valdomas, 8x Fast Ethernet (10/100). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: FGSD-1008HPS

PLANET FGSD-1008HPS. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 8. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 5,5 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE... PoE support

✏️ Key Technical Specifications:

• Management Features - Switch Type: Managed
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Traffic Classification: Yes
• Management Features - Device Software Updates: Yes
• Data Transmission - Routing/Switching Throughput: 5.5 Gbit/s
• Data Transmission - Throughput: 4.17 Mpps
• Data Transmission - MAC Address Table Size: 16000 entries
• Data Transmission - Store-and-Forward: Yes
• Data Transmission - Number of Queues: 2
• Data Transmission - Jumbo Frames Support: Yes
• Data Transmission - Jumbo Frame Size: 16000
• Security - System Event Log: Yes
• Security - DHCP Features: DHCP server, DHCP client
• Security - IGMP Snooping: Yes
• Multicast Features - Multicast Support: Yes
• Performance - Management Protocols: SNMP v1 / v2c
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Power over Ethernet (PoE) Power per Port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 120 W
• Network - 10G Support: No
• Network - Networking Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Copper Ethernet Cabling Technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Network - Auto MDI/MDI-X: Yes
• Network - Auto-Negotiation: Yes
• Network - Port Mirroring: Yes
• Network - Full Duplex: Yes
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - MAC Address Auto-Learning Support: Yes
• Network - MAC Address Auto-Aging Support: Yes
• Network - VLAN Support: Yes
• Network - VLAN Features: Tagged VLAN, Port-based VLAN
• Network - Number of VLANs: 4094
• Design - Product Color: Blue
• Design - Built-in On/Off Switch: Yes
• Design - Number of Fans: 1 fan
• Design - Reset Button: Yes
• Design - LED Indicators: Yes
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 8
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Type: Fast Ethernet (10/100)
• Ports & Interfaces - Number of Fast Ethernet (copper) Ports: 8
• Ports & Interfaces - SFP Combo Ports Quantity: 2
• Ports & Interfaces - Fiber Optic Connector: SFP
• Weight & Dimensions - Product Width: 280 mm
• Weight & Dimensions - Product Depth: 180 mm
• Weight & Dimensions - Product Height: 44 mm
• Weight & Dimensions - Product Weight: 1.5 kg
• Power - Maximum Power Consumption: 121 W
• Power - AC Input Voltage: 100 - 240 V
• Power - Input Current: 2.5 A
• Power - AC Input Frequency: 50 - 60 Hz
• Operating Conditions - Relative Humidity Range: 5 - 90%
• Operating Conditions - Storage Temperature Range: -10 - 70 °C
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Operating Conditions - Relative Humidity: 5 - 90%
• Operating Conditions - Heat Dissipation: 413 BTU/h
• Logistics Data - Harmonized System (HS) Code: 85176990
• Classification - Manufacturer Code: FGSD-1008HPS
• Classification - EAN: 4711605281034
• Classification - Product ID: 27322190
