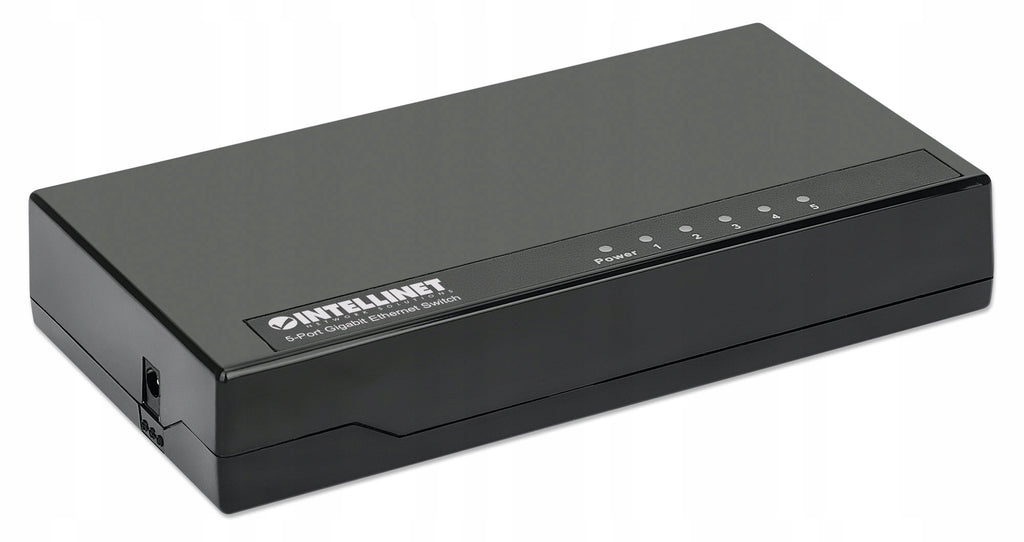

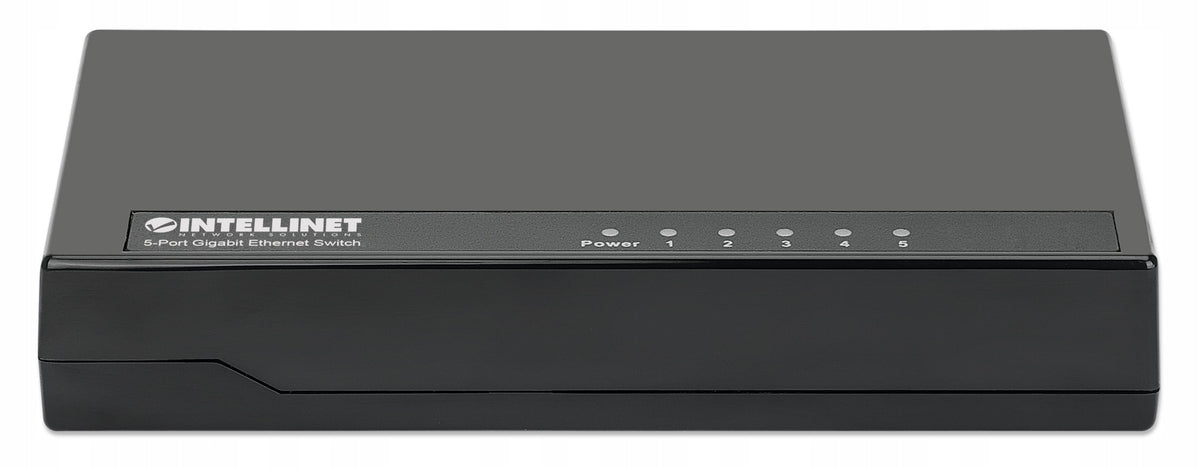

Tinklo komutatorius Intellinet 5 portų, Gigabit, stalinis

Trumpai apie prekę

Prekė: Tinklo komutatorius Intellinet 5 portų, Gigabit, stalinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Intellinet
• Modelis: 561747

➡ Compact Ethernet switch with five Gigabit ports requiring no configuration

➡ Simple plug-and-play installation - simply plug into power and start using

➡ Green Ethernet power reduction technology deactivates unused ports and adjusts power levels based on cable length

➡ Automatic detection of optimal network speed 10/100/1000 on each port

➡ Supports any combination of network devices with 10 Mbps, 100 Mbps or 1 Gbps transfer speeds

➡ Internal bus bandwidth: 10 Gbps

➡ Support MAC addresses up to 2k entries with auto-learning and auto-aging

➡ Memory buffer 1,5 MB

➡ Support Jumbo frames up to 16 kB

➡ Extremely compact design

➡ Fanless design for quiet operation

➡ Store-and-Forward switching

➡ IEEE 802.3 10Base-T Ethernet

➡ IEEE 802.3u 100Base-TX Fast Ethernet

➡ IEEE 802.3ab (Gigabit Ethernet)

➡ IEEE802.3x with flow control and back-pressure mechanism

➡ IEEE 802.3az (Energy Efficient Ethernet)

➡ Number of ports: 5x RJ45 10/100/1000 Mbps

➡ Wiring: Cat3, 4, 5, 6 UTP/STP

➡ Duplex mode: for all ports (up to 200 Mbps)

➡ Uplink: all ports with MDI/MDX auto-crossing (Automatic Uplink)

➡ Switching architecture: store and forward

➡ Packet forwarding speed: 745 000 pps

➡ Memory buffer: 1,5 MB

➡ MAC address array: 2000 entries

➡ Bus bandwidth: 10 Gbps

➡ Support Jumbo frames up to 16 kB

➡ Certificates: FCC Class B, CE Mark, RoHS

• Power supply:
• Link / Activity
• Speed

• External power supply: 5.0 VDC, 1.0 A
• Power consumption 1.6 W (max.)

➡ Plastic housing

➡ Dimensions (L. x W x H ) 81 x 48 x 22 mm

➡ Weight: 0,19 kg

➡ Operating temperature: 0 - 40°C

➡ Storage temperature: -40° - 70°C

➡ Operating humidity: 10 - 90% (non-condensed)

➡ Humidity during storage: 5 - 90% (non-condensed)

➡ 5-Port Gigabit Ethernet Switch

➡ Power supply

➡ Quick installation instructions

P/N: 561747

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Intellinet
Parametry	Product weight with unit packaging	0.19 kg
Parametry	Number of ports	5
Parametry	EAN (GTIN)	0766623561747
Parametry	Manufacturer code	561747
