Tinklo komutatorius Catalyst 9200L, 24 prievadų, 4×1G, Network Essentials

Trumpai apie prekę

Prekė: Tinklo komutatorius Catalyst 9200L, 24 prievadų, 4×1G, Network Essentials. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: 9200L

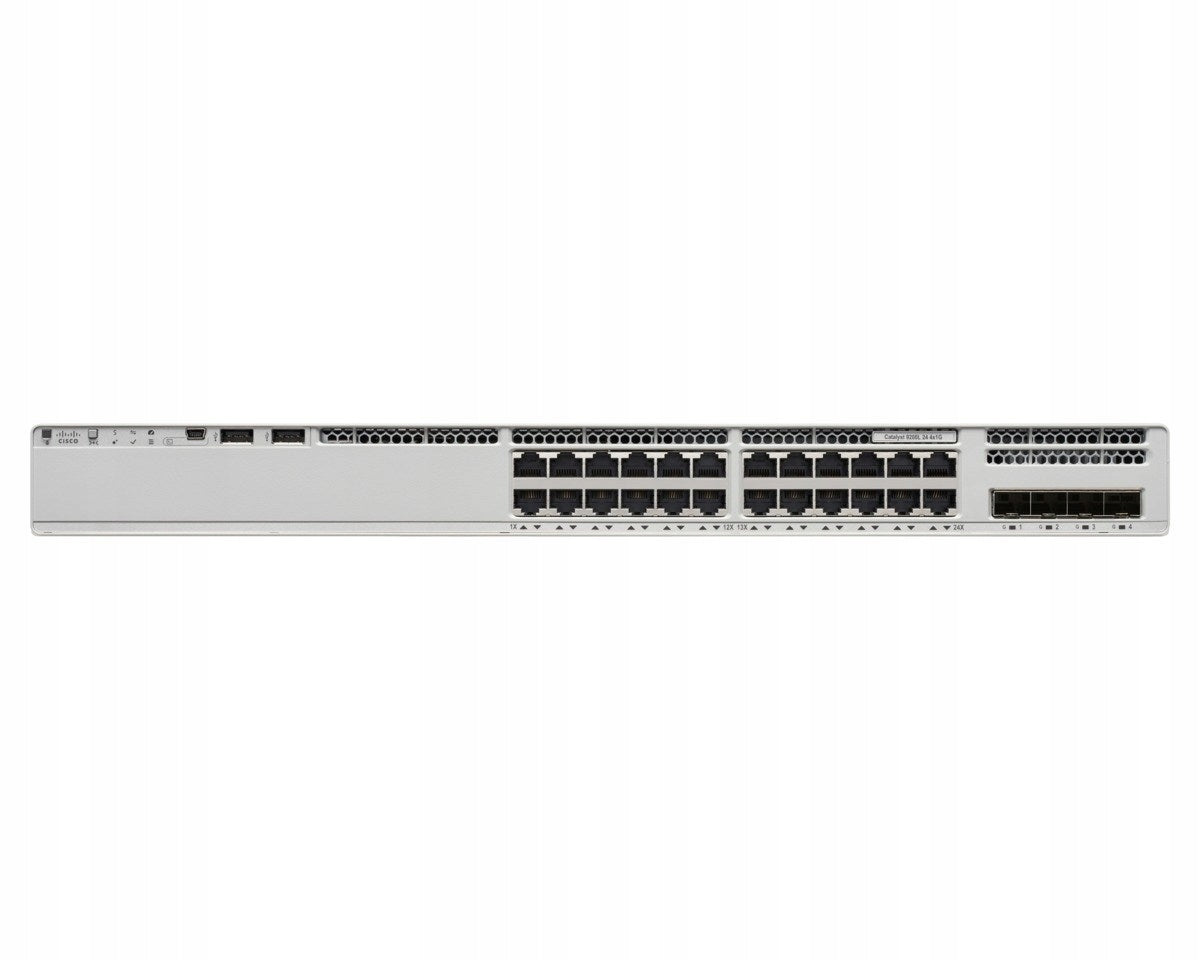

Catalyst 9200L 24-port data 4×1G Network Essentials

CISCO

The Cisco Catalyst 9200 switches are advanced network devices that offer a wide range of features and technological innovations. Equipped with full PoE+ capabilities, power and fan redundancy, as well as up to 160 Gbps bandwidth, these switches ensure uninterrupted operation and data security. With the programmability of UADP ASIC technology and support for Layer 3, the 9200 Series switches enable easy integration into modern networks and future innovations.

• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Switch type: Managed
• Switch layer: L3
• MIB support: BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB,CISCO-BULK-FILE-MIB,CISCO-CABLE-DIAG-MIB,CISCO-CALLHOME-MIB,CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB,CISCO-CONFIG-COPY-MIB,CISCO-CONFIG-MAN-MIB,CISCO-DEVICE-LOCATION-MIB,CISCO-DHCP-SNOOPING-MIB,CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB,CISCO-ENTITY-FRU-CONTROL-MIB,CISCO-ENTITY-SENSOR-MIB,CISCO-ENTITY-VENDORTYPE-OID-MIB,CISCO-ERR-DISABLE-MIB,CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB,CISCO-FTP-CLIENT-MIB,CISCO-HSRP-EXT-MIB,CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB,CISCO-IETF-PPVPN-MPLS-VPN-MIB,CISCO-IETF-PW-MPLS-MIB,CISCO-IF-EXTENSION-MIB,CISCO-IGMP-FILTER-MIB,CISCO-IMAGE-LICENSE-MGMT-MIB,CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB,CISCO-IP-STAT-MIB,CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB,CISCO-IPSEC-FLOW-MONITOR-MIB,CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB,CISCO-IPSLA-AUTOMEASURE-MIB,CISCO-IPSLA-ECHO-MIB,CISCO-IPSLA-JITTER-MIB,CISCO-L2-CONTROL-MIB,CISCO-L2L3-INTERFACE-CONFIG-MIB,CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB,CISCO-LOCAL-AUTH-USER-MIB,CISCO-MAC-NOTIFICATION-MIB,CISCO-MDI-METRICS-MIB,CISCO-MEDIA-METRICS-MIB,CISCO-MEMORY-POOL-MIB,CISCO-MPLS-LSR-EXT-STD-MIB,CISCO-NBAR-PROTOCOL-DISCOVERY-MIB,CISCO-NHRP-EXT-MIB,CISCO-NTP-MIB, CISCO-PAGP-MIB,CISCO-PORT-SECURITY-MIB,CISCO-PORT-STORM-CONTROL-MIB,CISCO-POWER-ETHERNET-EXT-MIB,CISCO-PRIVATE-VLAN-MIB,CISCO-PROCESS-MIB,CISCO-PRODUCTS-MIB,CISCO-RF-MIB, CISCO-RTP-METRICS-MIB,CISCO-RTTMON-ICMP-MIB,CISCO-STACKWISE-MIB,CISCO-STP-EXTENSIONS-MIB,CISCO-SYSLOG-MIB, CISCO-TCP-MIB,CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB,ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB,IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB,MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB,OLD-CISCO-CHASSIS-MIB,OLD-CISCO-CPU-MIB,OLD-CISCO-INTERFACES-MIB,OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB,OLD-CISCO-SYS-MIB,OLD-CISCO-TCP-MIB,OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB,RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB,SONET-MIB, TCP-MIB, UDP-MIB
• ARP inspection: Yes
• Traffic classification: Yes
• Configuring Location Settings (CLI): Yes
• Gigabit Ethernet (copper) ports quantity: 4
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity: 24
• Power connector: AC-in jack
• Fast Ethernet (copper) ports quantity: 20
• Flow control support: Yes
• Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• VLAN support: Yes
• Number of VLANs: 4096
• Full duplex: Yes
• Copper ethernet cabling technology: 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
• 10G support: Yes
• Spanning tree protocol: Yes
• IP routing: Yes
• Routing entries: 3000
• Jumbo frames support: Yes
• MAC address table: 16000 entries
• Switching capacity: 56 Gbit/s
• Forwarding rate: 41.66 Mpps
• Jumbo frames: 9198
• Packet buffer memory: 6 MB
• Security algorithms: 128-bit AES
• Access Control List (ACL): Yes
• Multicast support: Yes
• IPv4 multicast entries: 3000
• IPv6 multicast entries: 1500
• Multicast MAC address table: 1000 entries
• Management protocols: SNMPv1/v2c/v3
• Routing protocols: CDP,EIGRP,OSPF,RIP,VRRP
• Product colour: Grey
• Certification: RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1
• Electromagnetic compatibility: 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
• Internal memory: 2000 MB
• Flash memory: 4000 MB
• Memory type: DRAM
• AC input frequency: 50 - 60 Hz
• AC input voltage: 100 - 240 V
• Power consumption (typical): 125 W
• Input current: 1.6 - 0.7 A
• Redundant power supply (RPS) support: Yes
• Power supply included: Yes
• Power over Ethernet (PoE): No
• Operating temperature (T-T): -5 - 45 °C
• Operating relative humidity (H-H): 5 - 90 %
• Storage temperature (T-T): -40 - 70 °C
• Operating altitude: 0 - 3000 m
• Width: 445 mm
• Depth: 288 mm
• Height: 44 mm
• Package type: Box
• Harmonized System (HS) code: 85176990
