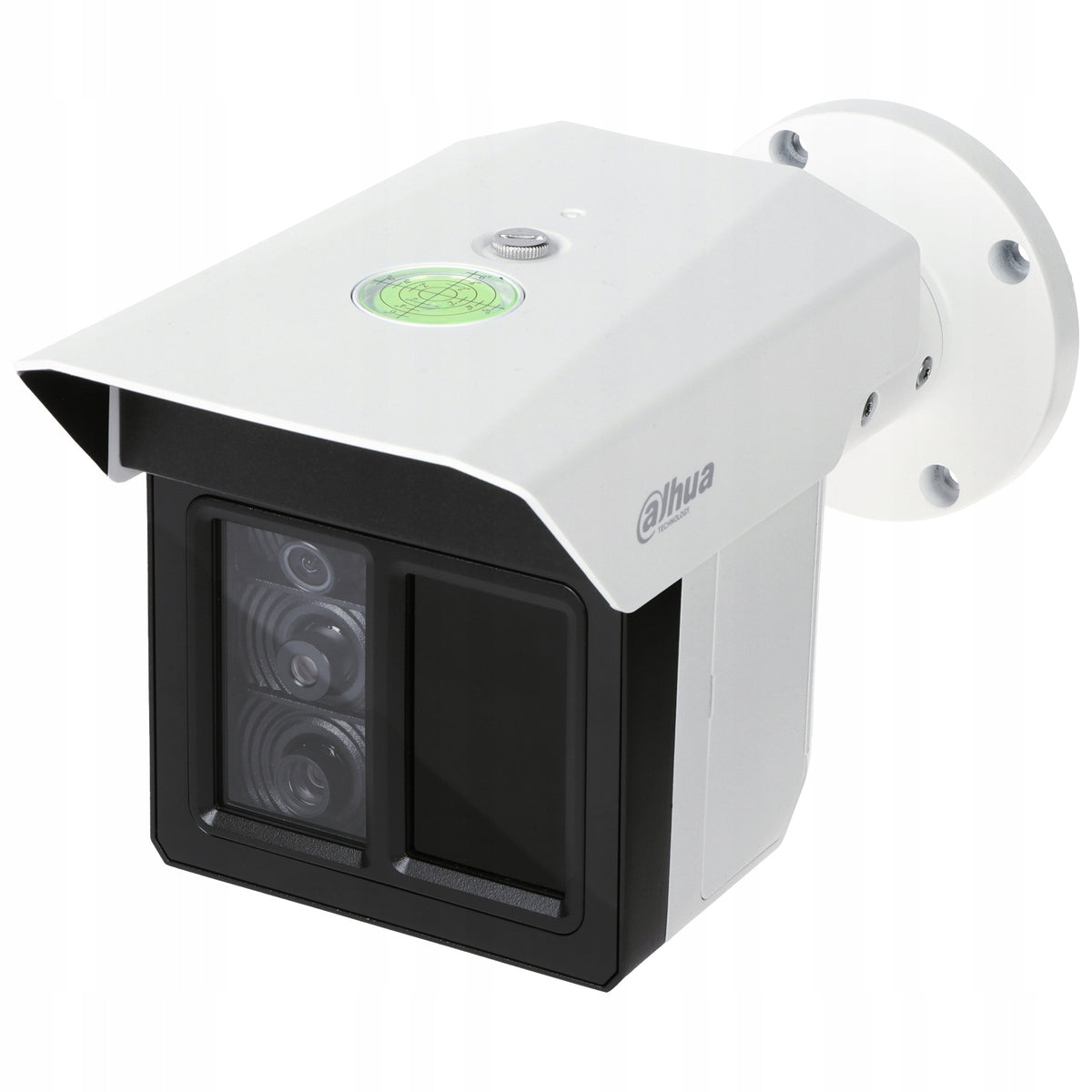

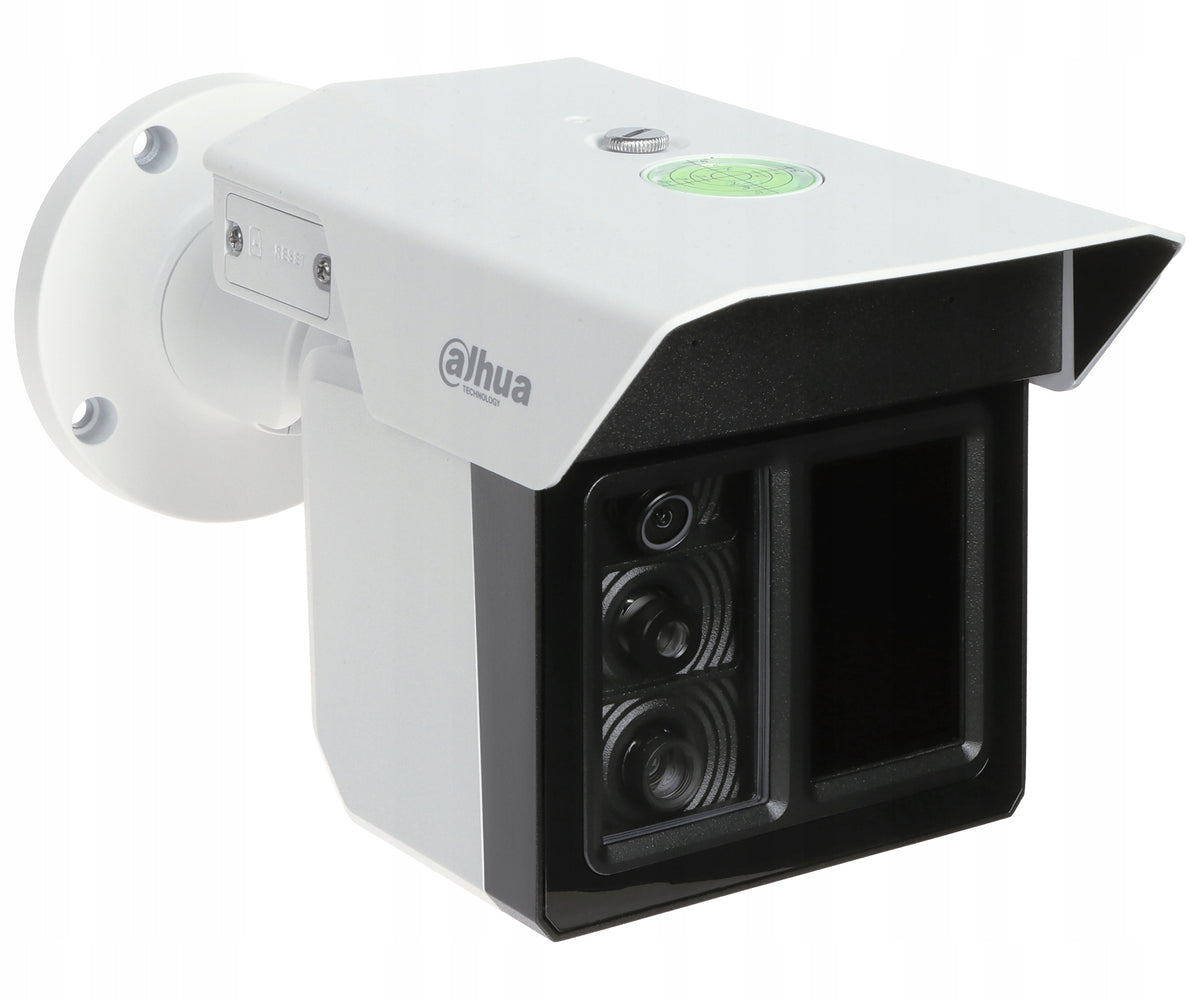

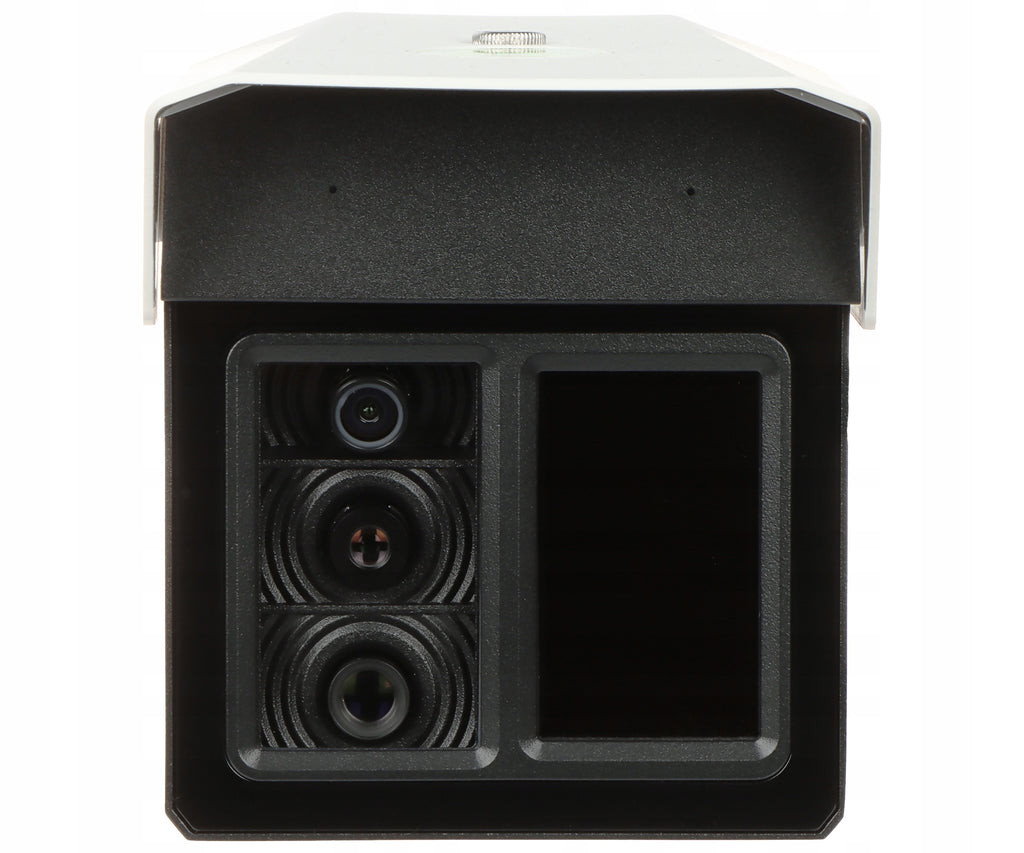

Tinklo kamera DAHUA IPC-MFW5241T2-E3-ASE, 3x2MP, IR, bullet tipo

Trumpai apie prekę

Prekė: Tinklo kamera DAHUA IPC-MFW5241T2-E3-ASE, 3x2MP, IR, bullet tipo. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: IPC-MFW5241T2-E3-ASE-0360/1200/2500B

The IPC-MFW5241T2-E3-ASE-0360/1200/2500B camera from the DAHUA WizMind series is designed for comprehensive peripheral protection functions. The use of 3 camera modules with lenses with different focal lengths allows continuous observation of the environment from the camera itself to a distance of approx. 100m using advanced perimeter protection functions in the area seen by the camera. PoE power capability, according to the 802.3af standard, makes the device even more versatile and easier to install. The device is equipped with ePoE technology that allows transmission up to 800 m at 10 Mb/s or 300 m at 100 Mb/s via UTP twisted pair cable.

• Series: WizMind
• Standard: IP
• Resolution: 3 x 1920 x 1080 -1080p
• Transducer: 3 x 1/2.8 " Progressive Scan CMOS
• Lens: 3.6 mm - Channel 1 + 12 mm - Channel 2 + 25 mm - Channel 3
• Viewing angle: 100.4 ° - Channel 1 ,29.5 ° - Channel 2 ,14.9 ° - Channel 3
• IR illuminator range: 100 m
• Memory card slot: Micro SD card support up to 1TB
• Image compression method: H.265/H.264/H.264H/H.264B
• Alarm inputs/outputs: 2 / 2
• Audio: 2 x Built-in microphone, Network audio transmission, Audio input, Audio output
• Main stream transmission speed: 25kl/s@ 2.1Mpx
• Interface: Yes
• WEB Server: Built-in
• Max. Number of users online: 20
• ONVIF: Yes
• Intelligent image analysis: classification of people and vehicles, intrusion, line crossing
• Mobile phone access: Android: Free DMSS app, iOS (iPhone): Free DMSS app
• Default IP address: 192.168.1.108
• Default administrator login / password: admin / -Administrator password should be set at first startup
• Access ports via PC app: 37777
• Mobile application access port: 37777
• ONVIF port: 80
• RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
• Power supply: 12 VDC/ 700 mA, PoE (802.3af), ePoE
• Power consumption: ≤ 22.1 W @ 12 VDC≤ 23.6 W @ PoE
• Housing: Plastic
• Color: White
• Mechanical protection class: IK10
• Protection class: IP67
• Operating temperature: -30 °C ... 60 °C
• Weight: 2.4 kg
• Dimensions: 279 x 140 x 124 mm
• Supported languages: Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Italian
• Manufacturer / Brand: DAHUA

Selected functions:

• D-WDR - Wide range of lighting dynamics
• AGC - Automatic image gain adjustment
• ROI - improving the quality of selected image fragments
• Smart Illumination - automatic adjustment of illuminator power to avoid overexposure of the image
• 3D-DNR - Digital Noise Reduction in Images
• BLC - reverse light compensation (background)
• HLC - Strong light compensation (point)
• NAS support - Network Attached Storage
• Ability to change resolution, quality and bandwidth
• Customizable: brightness, contrast, saturation
• Privacy Zones - max. 8
• Built-in level for easy installation
• Motion detection

Full name: TRIPLE IPC-MFW5241T2-E3-ASE-0360/1200/2500B WizMind 3 x 1080p 3.6 mm + 12 mm + 25 mm DAHUA
