Tinklo jungiklis Zyxel GS1200-8HPV3-EU0101F, 8 prievadų

Trumpai apie prekę

Prekė: Tinklo jungiklis Zyxel GS1200-8HPV3-EU0101F, 8 prievadų. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Zyxel
• Modelis: GS1200-8HPV3-EU0101F

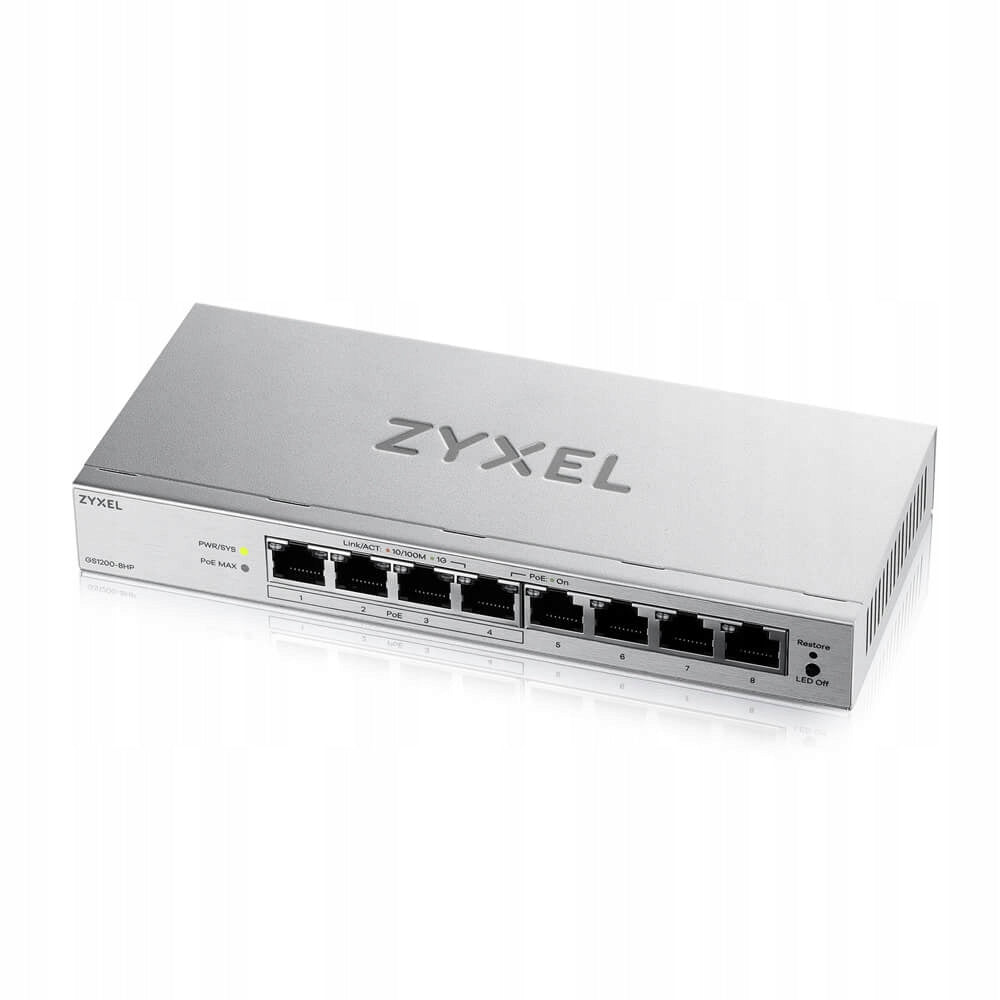

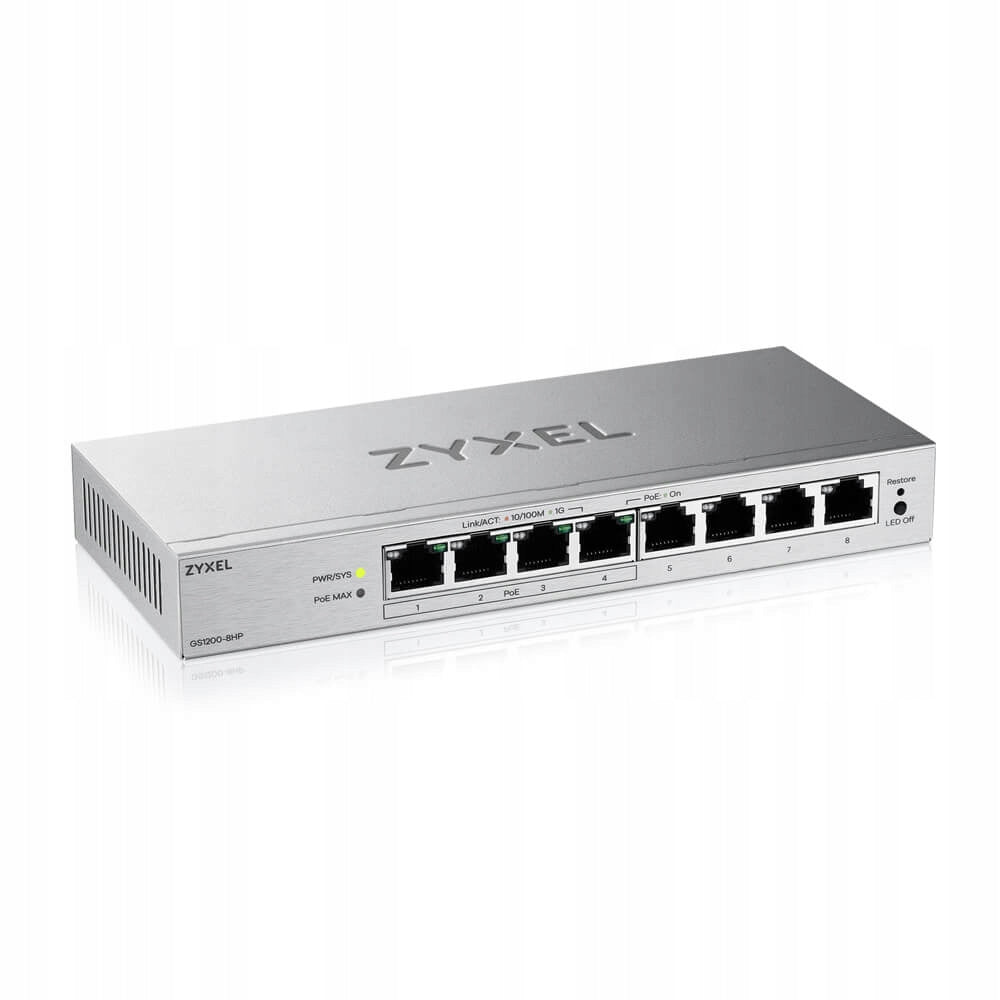

Switch Zyxel GS1200-8HPV3-EU0101F

Intuitive network management for small offices

The Zyxel GS1200-8HP v3 switch is a manageable class solution designed for home users and small offices who need control without unnecessary complexity. The device offers a simple and friendly graphic interface, which allows you to configure advanced functions with a few clicks. Thanks to the Gigabit Ethernet architecture, the switch provides fast and stable data exchange, eliminating delays inside the local IT structure.

Efficient PoE+ power supply for IP devices

This model is equipped with 8 ports 10/100/1000 Mbps, of which 4 ports support the PoE+ standard (IEEE 802.3at). This allows for simultaneous data transmission and power supply of devices such as surveillance cameras, wall access points or IP phones, without the need for additional electrical wires. The total power budget and support for the 802.3af standard make it a versatile hub for modern automation and security systems.

Advanced motion optimization features

Despite its affordable form factor, the switch offers the necessary professional features such as VLAN (802.1Q) for network isolation, QoS (802.1p) for traffic prioritization and IGMP eavesdropping for stable multicast transmissions. The device also supports link aggregation (LACP), which allows you to increase the bandwidth of connections between key network nodes. With a bandwidth of 16 GB/s and a forwarding speed of 11.9 Mpps, you can work smoothly even under heavy port loads.

Solid and energy-efficient fanless design

The housing with dimensions 193 x 85 x 26 mm is characterized by the lack of a fan, which translates into completely silent operation, ideal for office rooms. The use of the IEEE 802.3az (Energy Efficient Ethernet) standard allows for the reduction of power consumption during periods of low traffic. The high reliability of the device is confirmed by the MTBF indicator at the level of 1 749 682 hours, and the compact weight of 337 g facilitates installation in various spatial configurations.

Specification:

Performance and Communication

• Switch class: Managed
• Number of ports 10/100/1000 Mbps: 8
• Number of PoE+ ports: 4
• Capacity: 16 GB/s
• Transfer speed: 11.9 Mpps
• MAC address table: 4000 entries
• Support Jumbo frames: Yes (up to 15 KB)

Functions and Protocols

• Management: Web graphical interface
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x (Flow Control), 802.3az (EEE)
• L2 functions: VLAN (802.1Q), QoS (802.1p), LACP (802.3ad), IGMP Snooping, Port mirroring
• PoE power supply: IEEE 802.3af, IEEE 802.3at (PoE+)

Power Supply and Environment

• Power supply: 100 - 240 V AC, 50/60 Hz
• Power consumption: Maximum 81 W
• Working temperature: from 0 to 40°C
• Cooling: Passive (no fan)
• MTBF: 1 749 682 h

Physical parameters

• Dimensions: 193 × 85 × 26 mm
• Weight: 337 g
