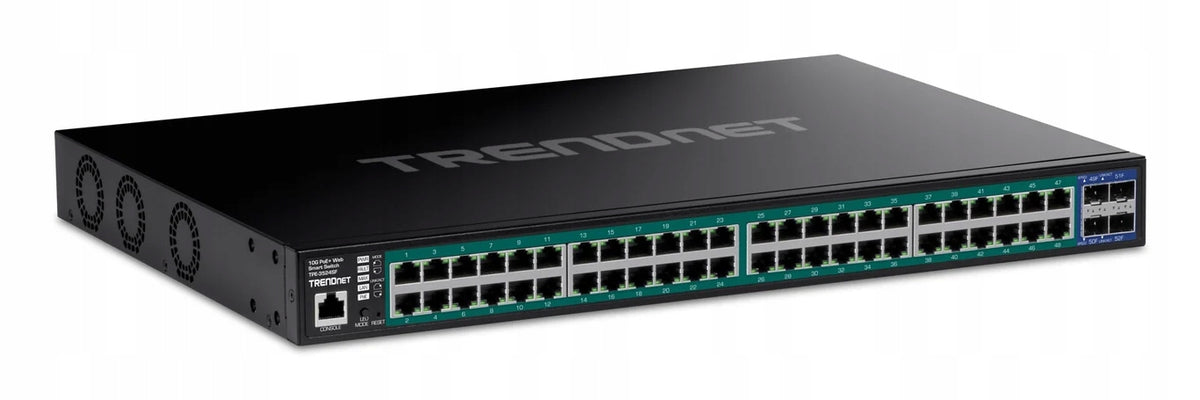

Tinklo jungiklis Trendnet TPE-3524SF, valdomas, Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis Trendnet TPE-3524SF, valdomas, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: TPE-3524SF

Trendnet TPE-3524SF. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 48, Console Port: RJ-45. Full duplex. Address table size: 32000 inputs, Routing/switching throughput: 176 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... PoE support

✏️ Key Technical Specifications:

• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - PoE Power Per Port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 740 W
• Construction - Number of Fans: 3 fans
• Performance - Management Protocols: SNMP v1, v2c, v3
• Ports and Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 48
• Ports and Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports and Interfaces - SFP+ Module Slots Quantity: 4
• Network - 10G Support: Yes
• Network - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Jumbo Frames Support: Yes
• Network - Jumbo Frames Extension: 9000
• Network - VLAN Support: Yes
• Network - Full Duplex: Yes
• Network - Half Duplex: Yes
• Network - Link Aggregation: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Head-of-line (HOL) Blocking: Yes
• Network - Virtual LAN Features: Private VLAN, Tagged VLAN, Voice VLAN
• Network - VLANs Quantity: 4094
• Data Transfer - Routing/Switching Capacity: 176 Gbit/s
• Data Transfer - Forwarding Rate: 130.95 Mpps
• Data Transfer - MAC Address Table: 32000 entries
• Weight and Dimensions - Product Height: 44 mm
• Weight and Dimensions - Product Weight: 4.72 kg
• Weight and Dimensions - Product Width: 440 mm
• Weight and Dimensions - Product Depth: 310 mm
• Management Features - Switch Type: Managed
• Features - Noise Level: 42.7 dB
• Protection - DHCP Features: DHCP snooping
• Features - MTBF (Mean Time Between Failures): 70599 h
• Protection - IGMP Snooping: Yes
• Ergonomics - Certificates: CE FCC UL
• Power - Maximum Power Consumption: 52 W
• Power - AC Input Voltage: 100 - 240 V
• Power - AC Input Frequency: 50/60 Hz
• Power - Power Protection Features: Overcurrent, Short circuit
• Technical Details - Console Port: RJ-45
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Classification - Manufacturer Part Number: TPE-3524SF
• Classification - EAN: 0710931162523
• Classification - Product ID: 110388895
