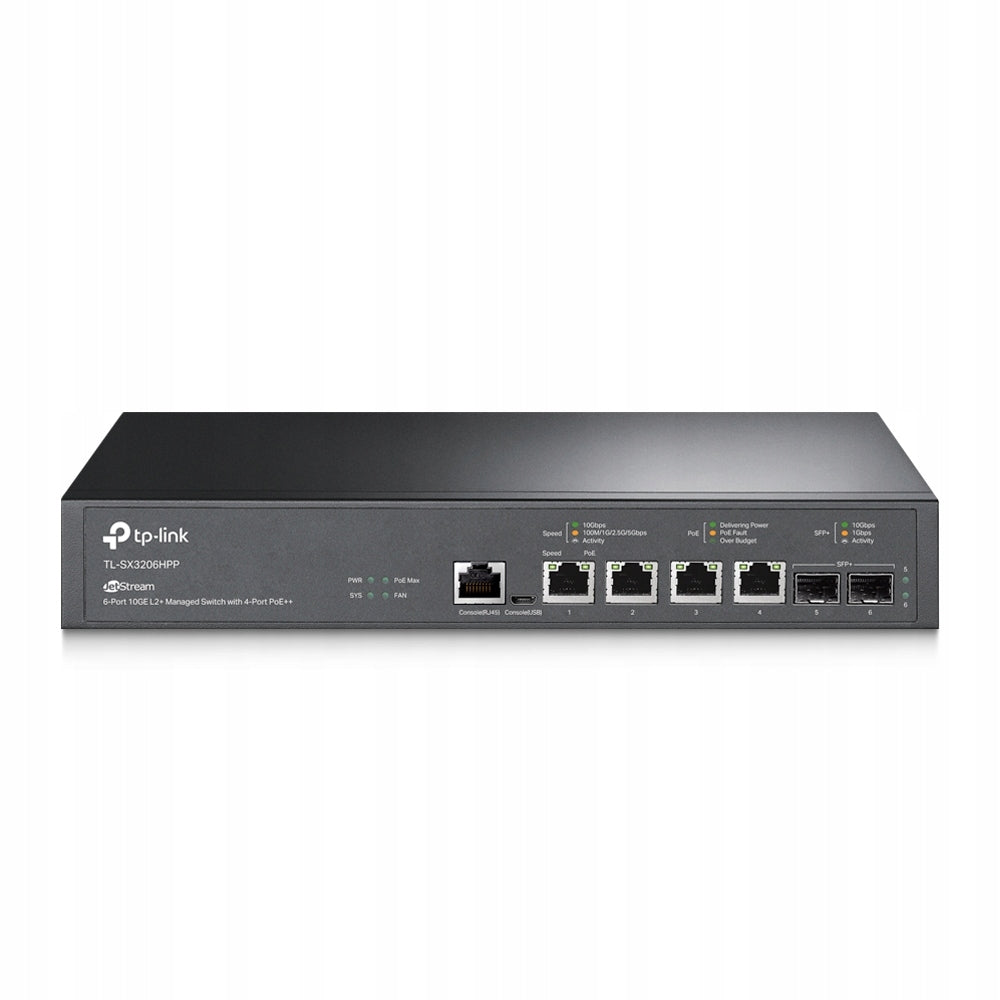

Tinklo jungiklis TP-Link SX3206HPP, 6x10Gb/s, 4x PoE++

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-Link SX3206HPP, 6x10Gb/s, 4x PoE++. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SX3206HPP

TL-SX3206HPP

• Instant 10G connectivity: 2× 10-Gabit SFP+ slots and 4× 10-Gabit RJ45 ports provide high bandwidth and switching capabilities.
• PoE++ power supply with a total power of 200 W†: 4 10G ports, compliant with PoE++ 802.3af/at/bt standards and the ability to power PoE up to 60 W on each of them, are ideal for deploying Omada WiFi 6 Access Points and WiFi 6E Access Points. ‡
• Reliable L2 and L2+ features: Support for a complete line of L2 and L2+ features including Static Routing, Industrial-Grade QoS and IGMP Snooping.
• Strong security strategies: LAN protection is provided by integrated features such as IP-MAC-Port Binding, ACL, Port Security, and 802.1X authentication.
• Static Routing: Allows you to route network traffic for efficient use of network resources.
• Centralized cloud management: Integration with the Omada SDN platform enables easy and convenient access from the cloud and remote management.
• Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image give great management capabilities.

• Instant 10G connections
• 4 RJ45 10GE ports and 2 10GE SFP+ slots with a total switching capacity of 120Gb/s
• Outputs 802.3bt PoE++
• Four RJ45 10GE ports offer PoE++ 802.3bt power up to 60W each and a total power of 200W†
• Centralized management in the cloud
• SDN integration for high network performance
• Reliable L3 and L2+ Functions Static Routing, DHCP Server, DHCP Relay, IP Inferfaces, IGMP Snooping, and more

Instantly fast connections with 10GE ports

Build and expand your ultra-fast network with the fully managed TL-SX3206HPP switch featuring RJ45 10GE ports, fiber optic ports, and 120 Gbps switching performance. Four RJ45 10GE ports with 5 speed auto-negotiation (100Mbps, 1G, 2,5G, 5G, and 10G) ensure optimal performance. Two 10GE SFP+ slots allow you to maintain non-blocking switching performance and ultra-low latency, so you can easily create stable and ultra-fast connections to servers and switches.

Meet WiFi 6 and WiFi 6E requirements with 10G PoE++ ports

Four RJ45 10GE ports offer PoE++ 802.3bt up to 60W on each and a total power of 200W. They allow you to achieve the full potential of WiFi 6 Access Points, WiFi 6E and PoE devices with high power consumption. † PoE (802.3af), PoE+ (802.3at) and PoE++ (802.3bt) standards are supported, so you don’t need to mount new electrical circuits to power your devices. ‡

Seamless integration with Omada Cloud SDN

Omada’s software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing end-to-end central management from the cloud. Omada enables you to create a highly scalable network — fully controlled through a single interface. This translates into seamless wired and wireless connections that are essential in hospitality, education, retail, offices, and many other industries and facilities.



Advanced Layer 3 Features

The extensive features of L2+ and L3 help you build a highly scalable and well-secured network that is reliable and efficient – ideal for offices, campuses and service providers.

• Static Routing
• Support for IPv6
• DHCP Server
• DHCP relay
• IP interfaces

• Effective safeguards
• IP-MAC-Port binding, port protection, Storm Control and DHCP Snooping are the features of the TL-SX3206HPP switch that protect your network from threats. The device also gives you the ability to define the most common DoS attacks, so you can detect and prevent them early. In contrast, the ACL function (L2 to L4) applies when blocking access to specific network resources. The packet submission denied can be set for specific source or destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. In addition, the switch uses 802.1X encryption to authenticate users seeking access to the network.
• Functions of the L2+ layer
• Thanks to the extensive features of the second layer (L2+), including support for VLAN 802.1Q tag, port mirroring, STP/RSTP/MSTP, port aggregation and 802.3x flow control function, TL-SGX3206HPP switches are characterized by versatility of operation. The IGMP Snooping feature allows you to intelligently target multicast streams only to specific subscribers, and the IGMP Throttling and IGMP Filtering features effectively restrict unauthorized users from accessing multicast streams. The switch also supports static routing, which allows you to segment your network and increase its performance.
• Advanced QoS features
• To ensure better audio and video transmission in a single network traffic, network administrators can prioritize e.g. for individual IP addresses, MAC addresses, TCP or UDP ports, etc. This ensures that audio and video transmission is smooth and lag-free.
• Functions for service providers**
• TL-SX3206HPP is a great solution for ISPs due to the availability of the following features: DDM, sFlow, QinQ, L2PT, PPPoE ID Insertion and IGMP authentication. OAM 802.3ah and Device Connection Detection Protocol (DLDP) make it easier to monitor and manage your entire network.
• Support IPv6
• The switch supports many IPv6 functions, such as dual IPv4/IPv6, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 interface, PMTU Discovery and IPv6 Neighbor Discovery, so that the network fully fits into the NGN (Next Generation Network) standards, and the replacement of equipment with a new one will not be necessary.

HARDWARE FEATURES:

• Ports:
• • 4 RJ45 100/1000/2500/5000/10000 Mbps ports
• • 2 SFP+ 10G Slots
• • 1 RJ45 console port
• • 1 Micro-USB console port
• Fanless: 2
• Power supply: 100-240 V AC~50/60 Hz
• PoE ports (RJ45):
• • Compliance with standards: 802.3bt/at/af
• • PoE+ ports: 4 Ports, up to 60W per port
• • Total power supply: 200 W
• Dimensions (S x G x W): 294× 180 × 44 mm
• (11,6 × 7,1 × 1,7 inches)
• Installation:
• • Rack cabinet
• • Desk
• Max Energy consumption:
• • 27,29 W (without PD connected)
• • 244,90 W (with connected devices PD 200 W)
• Amount of heat generated:
• • 93,12 BTU/h (without PD connected)
• • 835,67 BTU/h (with connected PD 200W devices)

EFFICIENCY:

• Switching performance: 120 Gbps
• Package redirection speed: 89,28 Mpps
• MAC address table: 32 K
• Jumbo frames: 9 KB

SOFTWARE FEATURES:

• Quality of Service:
• • 8 priority queues
• • Support 802.1p CoS/DSCP prioritization
• • Prioritization Schedule Mode:
• - SP (Strict Priority)
• - WRR (Weighted Round Robin)
• - SP+WRR
• • Bandwidth control
• - Limiting transfer speed based on port/data flow
• • Smoother operation
• • Actions for flows
• - Mirror (for supported interface)
• - Redirect (to supported interface)
• - Speed limit
• - QoS Remark
• L2 and L2+ functions:
• • Link Aggregation
• - Static link aggregation
• - 802.3ad LACP
• - Up to 8 aggregation groups, containing 8 ports per group
• • Spanning Tree Protocol
• - 802.1d STP
• - 802.1w RSTP
• 802.1s MSTP
• - STP Security: TC Protect, BPDU Filter, Root Protect
• • Loop Detection
• - Port-based
• - VLAN-based
• • Flow Control
• - 802.3x Flow Control
• - HOL Blocking Prevention
• • Mirroring
• - Port Mirroring
• - CPU Mirroring
• - One-to-One
• - Many-to-One
• - Tx/Rx/Both
• L2 Multicast:
• • IGMP Snooping
• - IGMP v1/v2/v3 Snooping
• - Fast Leave
• - IGMP Snooping Querier
• - IGMP authentication
• • IGMP authentication
• • MLD Snooping
• - MLD v1/v2 Snooping
• - Fast Leave
• - MLD Snooping Querier
• - Static group configuration
• - Limited IP Multicast forwarding
• • MVR
• • Multicast transmission filtering: 256 profiles and 16 profile entries
• VLANs:
• • VLAN Groups
• - Max. 4K VLAN groups
• • Tagging 802.1Q VLAN
• • MAC VLAN address: 10 entries
• • VLAN protocol: Protocol 16 template, VLAN 16 protocol
• • Private VLAN
• • GVRP
• • VLAN VPN (QinQ)
• - QinQ based on ports
• - Selective QinQ
• • Voice VLAN
• Access control lists:
• • Time-based ACL
• • MAC ACL
• - Source MAC
• - Target MAC
• - VLAN ID
• - User Priority
• - Ether Type
• • IP ACL
• - Source IP
• - Target IP
• - Fragment
• - IP protocol
• TCP Flag
• - TCP/UDP Port
• - DSCP/IP TOS
• - User Priority
• • Combined ACL
• • Contents of the ACL package
• • IPv6 ACL
• * Policy
• - Mirroring
• - Redirect
• - Rate Limit
• - QoS Remark
• • ACL applied to Port/VLAN
• Security of transmission:
• • Binding IP, MAC and port addresses
• - 512 entries
• - DHCP snooping
• - ARP inspection
• - Protection of source IPv4 address: 100 entries
• • Binding IPv6, MAC and ports
• - 512 entries
• - DHCPv6 Snooping
• - ND detection
• - Protection of source IPv6 address: 100 entries
• • Protection against DoS attacks
• • Protect ports through their static/dynamic/constant configuration
• - Up to 64 MAC addresses per port
• • Storm Control Broadcast/Multicast/Unicast
• - control mode (kbps/indicator)
• • 802.1X authentication
• - Port-based authentication
• - MAC address-based authentication
• - VLAN allocation
• - HAS B
• - VLAN for guests
• - Authentication and authorization via Radius
• • AAA (including TACACS+)
• • Port isolation
• • Secure web management via HTTPS with SSLv3/TLS 1.2 encryption
• • Secure CLI management with SSHv1/SSHv2 encryption
• • IP/port/MAC access control
• IPv6:
• • IPv6 Dual IPv4/IPv6
• • Multicast Listener Discovery (MLD) Snooping
• • IPv6 ACL
• • IPv6 Interface
• • Static IPv6 routing
• • IPv6 neighbor discovery (ND)
• • Maximum transmission unit (MTU) path detection
• • Internet Control Message Protocol (ICMP) version 6
• • TCPv6/UDPv6
• • IPv6 applications
• - DHCPv6 Client
• - Ping6
• - Tracert6
• - Telnet (v6)
• - IPv6 SNMP
• - IPv6 SSH
• - IPv6 SSL
• - Http/Https
• - IPv6 TFTP
• Features of the L3 switch:
• • 16 IPv4/IPv6 interfaces
• • Static routing
• - 48 static routes
• • Static ARP
• - 128 Static entries
• • Proxy ARP
• • Gratuitous ARP
• • DHCP Server
• • DHCP relay
• - DHCP Interface Relay
• - DHCP VLAN Relay
• • DHCP L2 Relay
• Advanced features:
• • Automatic detection of devices
• • Batch configuration
• • Batch software update
• • Intelligent network monitoring
• • Warnings about unusual events
• • Unified configuration
• • Restart schedule
• MIBs:
• • MIB II (RFC1213)
• MIB interface (RFC2233)
• • Ethernet MIB interface (RFC1643)
• • Bridge MIB (RFC1493)
• • P/Q-Bridge MIB (RFC2674)
• • RMON MIB (RFC2819)
• • RMON2 MIB (RFC2021)
• • Radius Accounting Client MIB (RFC2620)
• • Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• • Support for private TP-Link MIB

MANAGEMENT:

• Omada app: Yes. Requires the use of an OC300 controller, OC200 controller, cloud-based Omada controller or Omada software controller.
• Central management:
• • Cloud-based Omada Controller
• • Omada hardware controller (OC300)
• • Omada hardware controller (OC200)
• • Omada software controller
• Cloud access: Yes. Requires the use of an OC300 controller, OC200 controller, cloud-based Omada controller or Omada software controller.
• Support-free ZTP configuration: Yes. Requires the use of a cloud-based Omada Controller.
• Management panel functions:
• • GUI
• • CLI command line interface
• • SNMP v1/v2c/v3
• - Trap/Information
• - RMON (groups 1, 2, 3, 9)
• • SDM Template
• • DHCP/BOOTP client
• • 802.1ab LLDP/LLDP-MED
• • DHCP self-installation
• • Dual Image, Dual Configuration
• • Monitor CPU usage
• • Cable diagnostics
• • EEE
• • Password recovery
• • SNTP
• • System logs

OTHER:

• Certificates: CE, FCC, RoHS

Content of the package:

• • TL-SX3206HPP switch
• • Power cord
• • Quick installation instructions
• • Rack Mounting Kit
• • Rubber feet

System requirements:

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Working environment:

• • Permissible operating temperature: 0? ~50? (32? ~122? );
• • Permissible storage temperature: -40? ~70? (-40? ~158? );
• • Permissible air humidity: 10%~90%, non-condensing
• • Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	2.62 kg
Parametry	Number of ports	2
Parametry	EAN (GTIN)	6935364006617
Parametry	Manufacturer code	TL-SX3206HPP
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE,WEEE
