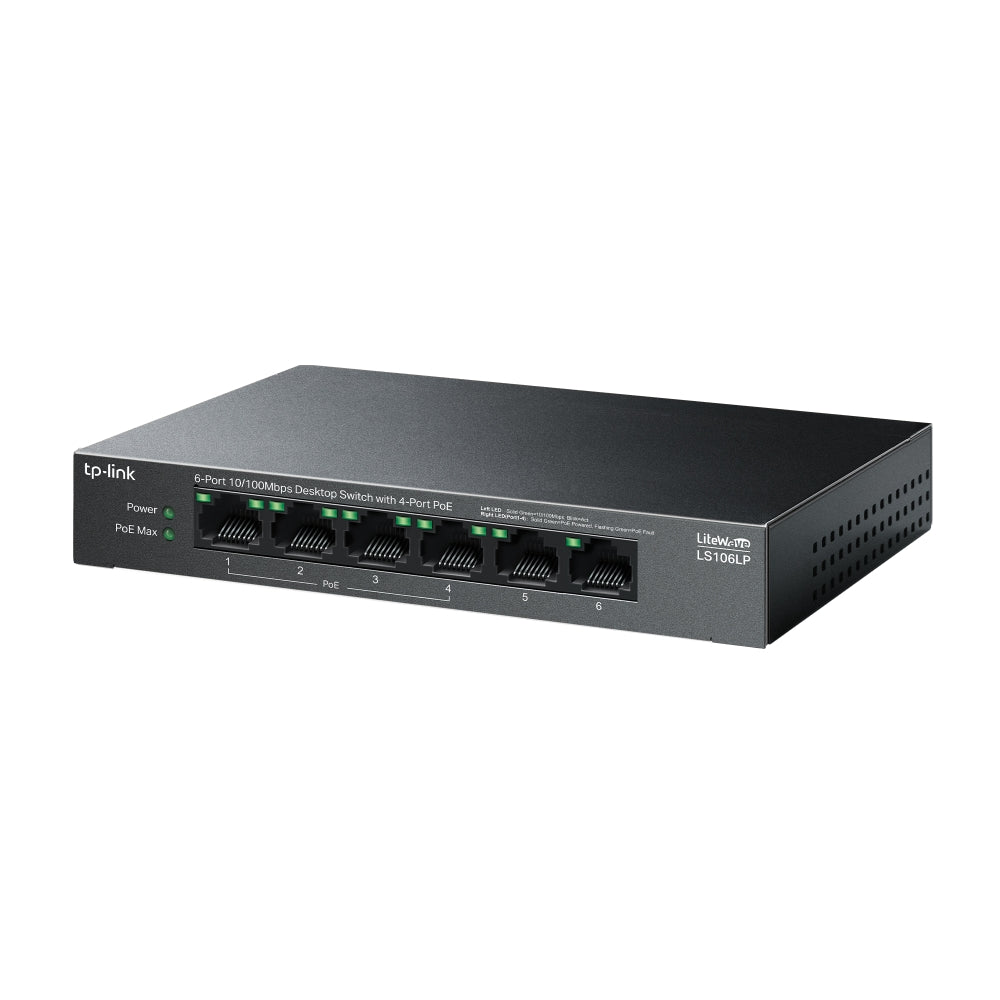

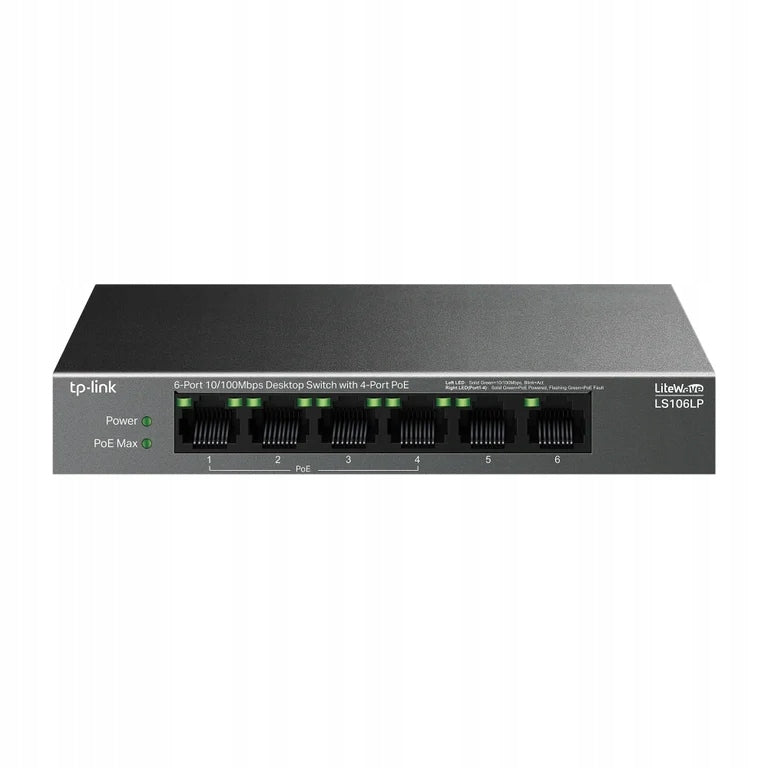

Tinklo jungiklis TP-LINK LS106LP

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-LINK LS106LP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: LS106LP

TP-LINK LS106LP Switch

TP-Link LiteWave LS106LP. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 6. Address table size: 2000 inputs, Routing/switching throughput: 1,2 Gbit/s. Communication standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. PoE support. Wall Mount / Ceiling Projection

✏ The most important technical parameters:

• Design - LEDs: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 6
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Network - 10G support: No
• Network - Communication standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX
• Network - Flow control support: Yes
• Network - Automatic MDI/MDI-X: Yes
• Network - Auto-Negotiation: Yes
• Ergonomics - Wall mounting / ceiling projection: Yes
• Power - Power Source: DC/PoE
• Power - AC input voltage: 220 V
• Power - AC input frequency: 50 Hz
• Power - Input current: 0.81 A
• Power - Power supply included: Yes
• Power - DC input voltage: 53.5 V
• Power - Maximum power consumption: 47,76 W
• Content of the package - User's guide: Yes
• Weight and sizes - Product width: 158 mm
• Weight and sizes - Product height: 25 mm
• Weight and sizes - Product depth: 101 mm
• Features - Supported cable types: Cat3, Cat4, Cat5, Cat5e
• Features - Colour of product: Black
• Features - Certificates: CE, FCC, RoHS
• Management Features - Switch Type: Not Managed
• Management Features - Service Quality Support (QoS): Yes
• Data transfer - Routing/switching bandwidth: 1,2 Gbit/s
• Data transfer - Forwarding speed: 0,8928 Mpps
• Data transfer - Address table size: 2000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Performance - Without windmill: Yes
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 90%
• Working conditions - Heat emission: 162,38 BTU/h
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Temperature range (storage): -40 - 70 °C
• Packaging data - Packaging type: Box
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 4
• Power over Ethernet (PoE) - Power over Ethernet (PoE) power over port: 15,4 W
• Classification - Manufacturer code: LS106LP
• Classification - EAN: 4895252504606
• Classification - Product ID: 118305628

Specifications
