Tinklo jungiklis Tenda TEF1106P-4-63W, 6xFE, 4xPoE

Trumpai apie prekę

Prekė: Tinklo jungiklis Tenda TEF1106P-4-63W, 6xFE, 4xPoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Tenda
• Modelis: TEF1106P-4-63W

• 6x RJ45 10/100 Mbps ports (PoE on 1-4 ports) with auto-negotiation function
• 4x IEEE 802.3af/at PoE ports
• 2x uplink ports
• expansion mode, NVR, QoS function
• Maximum output power of each PoE port: 30 W
• Maximum switch output power: 63 W
• Metal desktop enclosure
• For transmission over distances up to 250 meters, outside the one hundred-meter transfer limit
• 6 KV lightning protection for uplink ports and 4KV for power

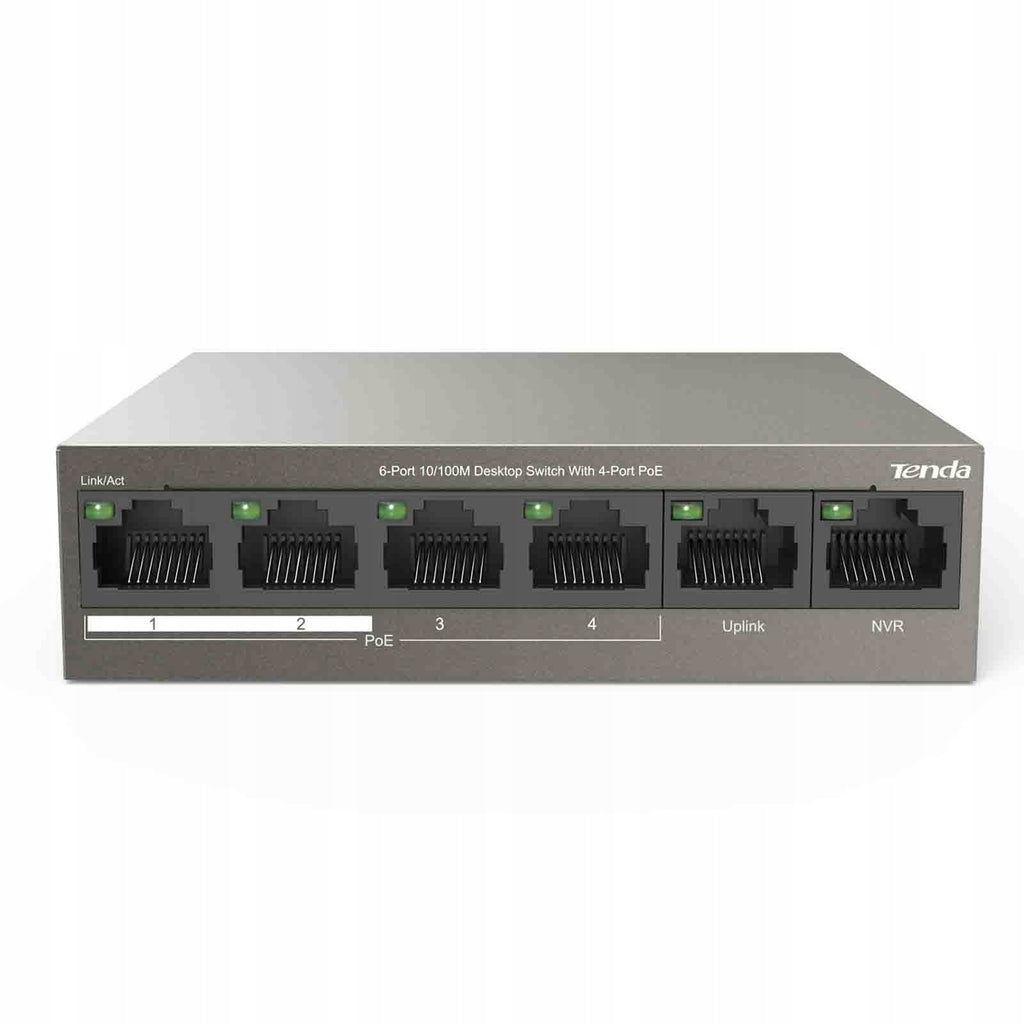

Switch Tenda TEF1106P-4-63W is an unmanaged 6 port Fast Ethernet switch with 4 PoE ports and 2 uplink ports

It is designed for surveillance thanks to double ports uplink and NVR and QoS. The switch has a metal desktop case. Ideally suited for WLAN and IP, as well as transmission up to 250 meters outside the limit of 100-meter transmission.

The switch is compliant with IEEE 802.3at/af standards, can intelligently identify PoE powered devices.

The switch provides maximum PoE power of 63W and 30W for one port.

1-2 ports support the QoS function, which prioritizes them when overcoming network congestion. This ensures stable and smooth video transmission from surveillance without interruption. Ports can be used to power and exchange data with access points and IP cameras.

The switch is equipped with 6KV lightning protection for uplink and 4KV ports for energy, which can protect the device from inductive lightning strikes coming from the storm. In many projects, access points and cameras are often installed outdoors or in elevated locations, which increases the chance of lightning hitting cameras and PoE switches. As a result, individual devices are damaged, and with them the entire network.

The TEF11 series switches have a professional lightning protection design for ports and power that effectively suppresses lightning current. During a storm, the Tenda TEF11 switch can also provide stable and reliable surveillance network operation and guarantee normal image transmission.

Due to the complex monitoring environment, when creating cabling and networks, very often there is a problem of insufficient network transmission distance, when the distance of each camera terminal from the monitoring center varies.

The Tenda TEF11 series PoE switches use a common existing twisted pair cable and can support data transmission up to 250 meters.

• Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Ports: 6x 10/100BASE-TX ports (1-4 PoE ports)
• Port functions: 10/100 Mbps in duplex, 20/200 Mbps in half duplex
• Switching bandwidth: 1,2 Gbps
• Power supply: DC: 51V /1.25A power supply, Max. Output power of each PoE port: 30 W, Max. Switch output power: 63 W
• MAC address table: 1K
• PoE power supply: Ports 1 to 4 - IEEE802.3 af/at standard, Max. Output power of each PoE port: 30 W
• Lightning protection: 6kV
• Dimensions: 100 x 100 x 26 mm
• LED: 6x Link/Ack, 1x Power
• Working temperature: 0℃~45℃
• Working humidity: 10%～90%, non-condensing
