Tinklo jungiklis POE DS-3T1306P-SI/HS, 4 SFP prievadai, Hikvision

Trumpai apie prekę

Prekė: Tinklo jungiklis POE DS-3T1306P-SI/HS, 4 SFP prievadai, Hikvision. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: 569556561

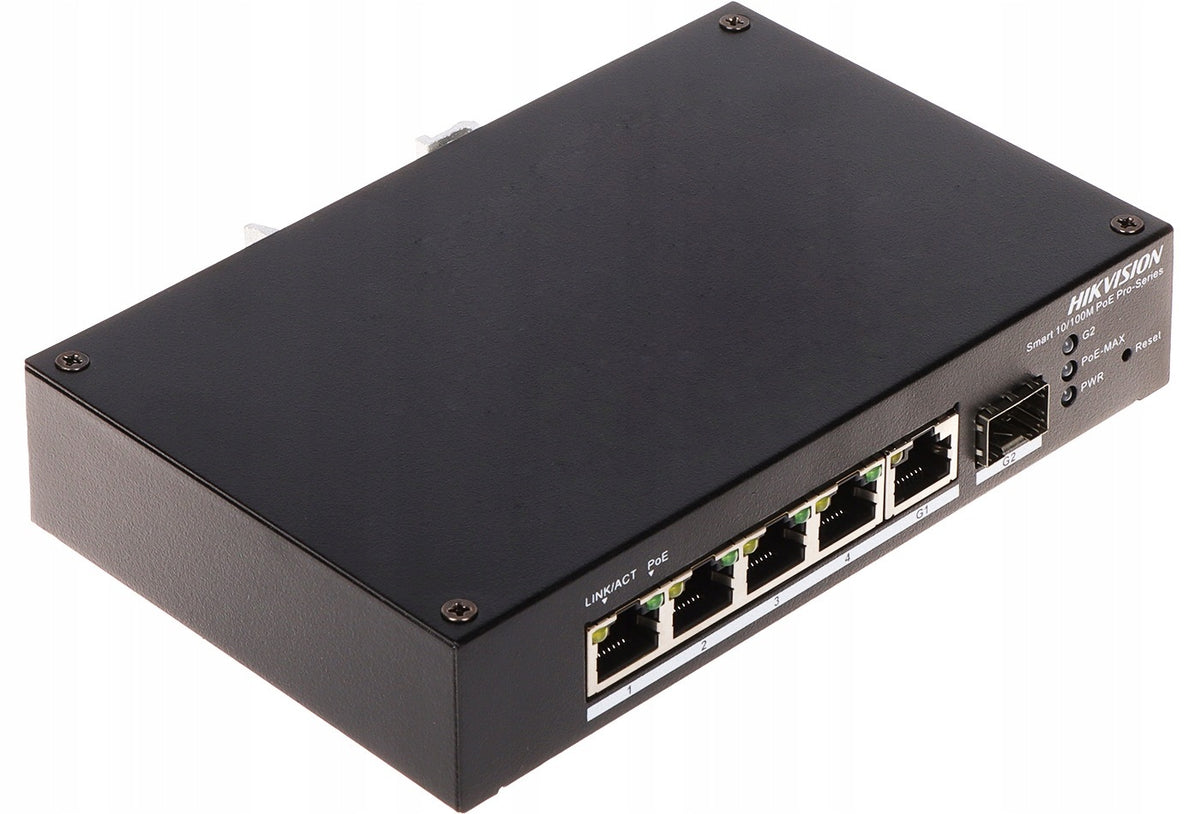

POE SWITCH DS-3T1306P-SI/HS 4-PORT SFP Hikvision

DS-3T1306P-SI/HS

With its reliability and high-quality transmission, the 4-port DS-3T1306P-SI/HS 10/100 Mbps desktop PoE switch is the ideal solution for expanding your home or office network

4 ports support Power over Ethernet (PoE)

DS-3T1306P-SI/HS is designed for mounting on a 35 mm DIN rail

LAN ports:

• 4 x RJ45 10/100 Base-T (4 x PoE (802.3af/at) ),
• 1 x RJ45 10/100/1000 Base-T - Uplink,
• 1 x SFP 1000 Base-X - Uplink

Transmission rate:

• 10 / 100 Mbps - 4 LAN & PoE ports,
• 10 / 100 / 1000 Mbps - RJ45 (Uplink),
• 1000 Mbps - SFP (Uplink)

Maximum output power:

30 W / PoE port

Maximum total power:

60 IN

MAC Address Table:

2k

Management:

Default IP address:

192.168.1.64

Default administrator login/password:

admin / -

Operating modes:

• Extend - Ports 1 ... 4 : 300 m, 10 Mb/s @ UTP cat. 5e, 6
• Port Isolation - Ports 1 ... 4
• Watchdog PoE - Ports 1 ... 4

LEDs: Power, Link/Act, PoE, PoE Max, G1, G2 Selected features:

• Preview of topology and network status
• The device supports 8-pin power supply - conductors: 1-2(-), 3-6(+), 4-5(+), 7-8(-)
• Endspan mode support - conductors : 1-2(-), 3-6(+)
• Midspan mode support - conductors : 4-5(+), 7-8(-)
• Remote software update
• System logs
• Control of data flow
• Watchdog function
• Storm Control function
• Port mirroring function
• Port isolation
• QoS : Establishing the priority queue SP, WRR, SP+WRR
• VLAN : 4094 groups
• Spanning Tree STP/RSTP
• Spanning Tree ERPS
• SNMPv1/v2c
• Compliance with the LLDP protocol
• DHCP
• DIN rail mounting devices, TS-35
• Designed for industrial applications in a wide temperature range.

Certificates: CE, RoHS, FCC, WEEE, REACH Security: Housing: Metal, Desktop, DIN Rail (TS-35) Power Supply:

• 48 ... 57 V DC - 2 inputs
• 48 V AC / 1.36 A (power supply included)

Power Consumption:

max. 65 W

Operating temperature:

-30 °C ... 65 °C

Weight:

0.39 kg

Dimensions:

158 x 102 x 32 mm

Manufacturer / Brand:

Hikvision

SAP Code:

301802344

3 years

CE

Manufacturer's data sheet EN

Quick start instructions EN

User manual EN

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Hikvision
Parametry	Number of ports	4
Parametry	EAN (GTIN)	5908066548434
Parametry	Manufacturer code	569556561
