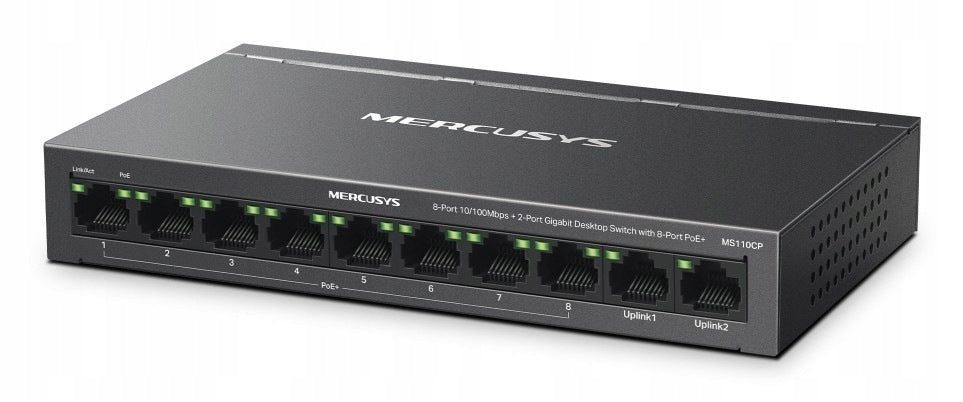

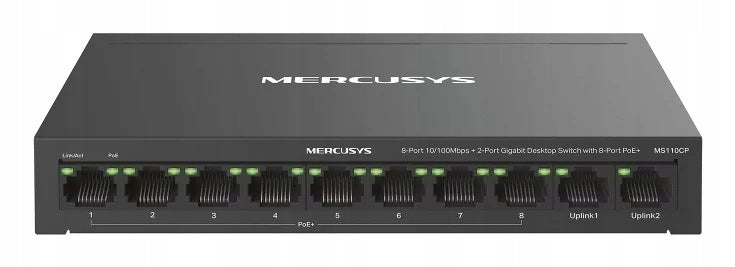

Tinklo jungiklis Mercusys MS110CP, 10/100 Mb/s, su PoE palaikymu

Trumpai apie prekę

Prekė: Tinklo jungiklis Mercusys MS110CP, 10/100 Mb/s, su PoE palaikymu. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Mercusys
• Modelis: MS110CP

EAN: 6957939003692

SKU: MS110CP

> Basic RJ-45 switching Number of Ethernet ports: 10

> Address table size: 2000 inputs Routing/switching throughput: 5,6 Gbit/s

> DC/PoE Power adapter included PoE support

Mercusys MS110CP. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 10. Full duplex. Address table size: 2000 inputs, Routing/switching throughput: 5,6 Gbit/s. Communication standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. PoE support. Wall Mount / Ceiling Projection

Weight and sizes

• Product height: 27 mm

• Product width: 171 mm

• Product depth: 98 mm

Power

• AC input frequency: 50 Hz

• Power source: DC/PoE

• Input current: 1.31 A

• Power consumption: 3.5000

• Power supply included: Yes

• DC input voltage: 53.5 V

• AC input voltage: 220 V

• Maximum power consumption: 74.9300

Data transmission

• Jumbo Frames extension: 2

• Compatible with Jumbo Frames: Yes

• Address table size: 2000 inputs

• Routing/switching throughput: 5.6 Gbit/s

Contents of the pack

• Wires: Alternating current

• Short instruction manual: Yes

Working conditions

• Temperature range (operation): -10 - 40

• Heat emission: 255.51 BTU/h

• Relative humidity range: 5 - 90

• Temperature range (storage): -40 - 70

• Relative humidity allowed: 10 - 95

Design

• Housing material: Metal

• Wall mount / ceiling projection: Yes

• Stackable product: No

• Product color: Black

• Frame mounting options: No

Network

• Automatic MDI/MDI-X: Yes

• Auto-Negotiation: Yes

• Full duplex: Yes

• Half-duplex: Yes

• Flow control support: Yes

• Communication standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

• Data transfer speed over Ethernet LAN: 10,100 Mbit/s

• Support 10G: No

Ports and interfaces

• Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)

• Basic RJ-45 switching Number of Ethernet ports: 10

Power over Ethernet (PoE)

• Total Power over Ethernet (PoE) budget: 65.0000

• Power over Ethernet Plus (PoE+) number of ports: 8

• Supported Power over Ethernet (PoE) type: PoE+

• PoE support: Yes

Fiber Optics

• Transmission distance (maximum): 0.25 km

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Mercusys
Parametry	Number of ports	10
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	6957939003692
Parametry	Manufacturer code	MS110CP
