Tinklo jungiklis IPOX, 8 PoE prievadai + 2 RJ45, 100W, 2Gbps

Trumpai apie prekę

Prekė: Tinklo jungiklis IPOX, 8 PoE prievadai + 2 RJ45, 100W, 2Gbps. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 1822

Description

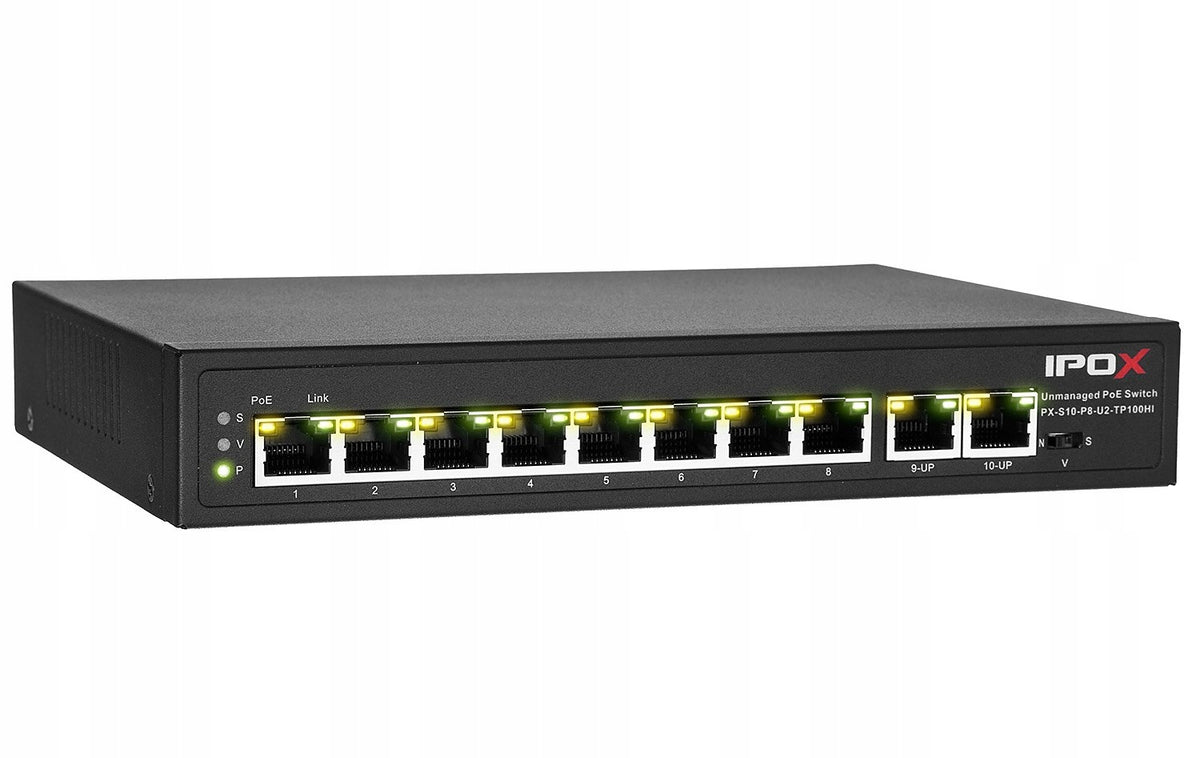

Switch PX-S10-P8-U2-TP100HI is a PoE switch designed to power IP cameras operating in IEEE802.3af/at and Hi-Poe standards (port 1). Signed by the IPOX brand, it is the latest version of technologically advanced products designed to function within IP monitoring structures. Switch on ports 1 to 8 has the functions of automatic detection of devices powered in the PoE+/PoE++ standard. UpLink ports are used to connect additional network devices via the RJ45 port. On the front panel there is an indication of the operating status of the device realized on LEDs. The use of the device is very simple, and thanks to the plug & play technique, the installation is seamless.

The most important features

For reliable operation as part of IP monitoring, the PX-S10-P8-U2-TP100HI network switch is equipped with 16 10/100Mbps PoE ports. In addition, the PoE power supply, which is located on all 8 ports, allows for quick detection of connected devices and allows for dynamic allocation of energy for each device. The PoE switch has built-in MDI/MDIX self-detection, therefore it does not require the use of patch cables and automatically detects and sets the speed and mode of data transmission.

PoE+ and Hi-PoE technology

PoE+ and Hi-PoE is an improved version of PoE technology that allows you to provide power to peripheral devices that are elements of the network using an Ethernet cable. The technique based on the IEEE 802.3at and Hi-PoE protocol allows users to power peripheral devices with power up to 60 W. An important advantage of the improved version of the technology is also high quality and high data transfer rate (up to 1000 Mb/s). Thanks to such high data transfer capabilities, the PoE solution has been widely used in extensive monitoring networks. PoE+ and Hi-PoE technology allows you to transfer images from 4K cameras in real time while maintaining full smoothness.

The advantage of the PX-S10-P8-U2-TP100HI switch is the ability to produce up to 30W (except for the first port with Hi-PoE support, which can deliver power up to 60W) of output power transmitted to one device. If the power of all powered devices exceeds 100W, the switch will automatically disconnect the communication port with the lowest priority. This will protect the installation from overload and ensure the proper and uninterrupted functioning of the remaining equipment.

Application of IPOX switch

Using the wide functionality of the IPOX switch in professional IP surveillance installations, it is possible to comprehensively power IP cameras in places free from power sources and, as a result, implement effective security systems.

Highest level of performance and easy installation

Installation of the IPOX switch is very simple and hassle-free thanks to Plug & Play technology. MDI/MDIX autodetection detects the cable used, therefore it does not require the use of patch cables and automatically sets the speed and mode of data transmission. Secure packet transmission, ensuring correctness by checking checksums carried out by Store-and-forward data transmissions, is necessary in IP monitoring systems.

Solid metal housing

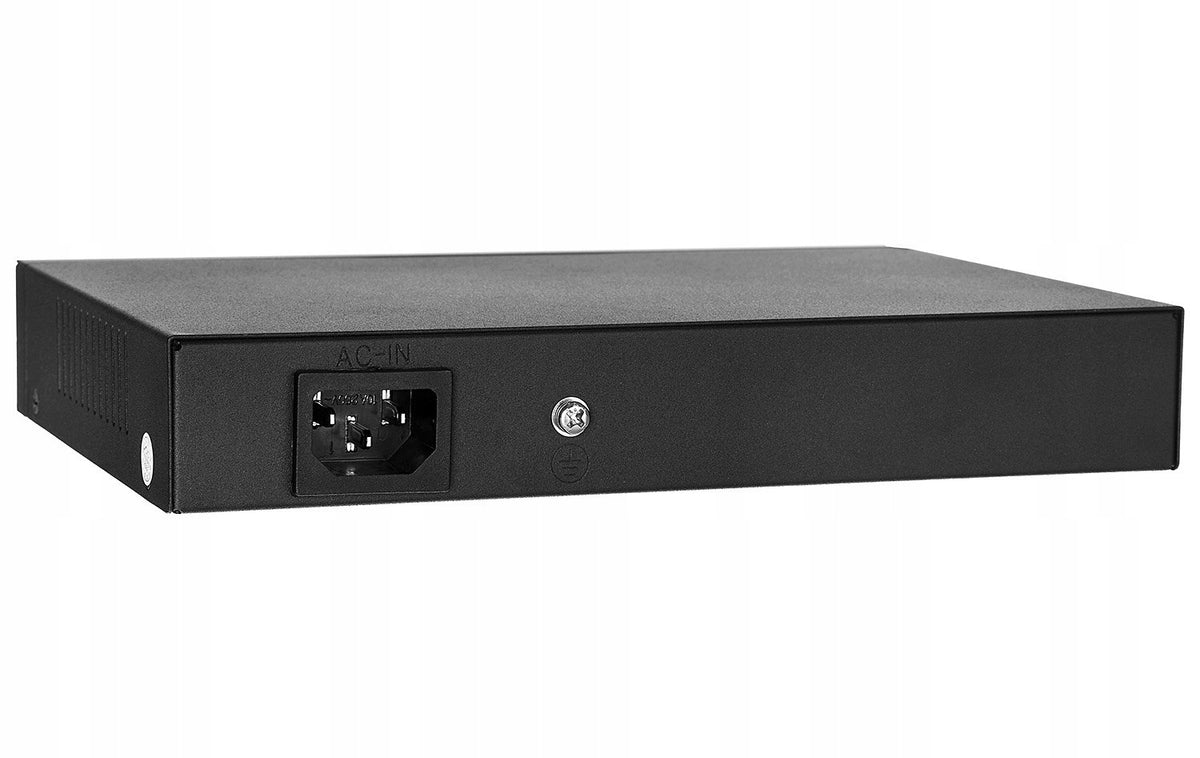

The durable housing made of high-quality metal provides protection for sensitive switch components. Such a solid protection guarantees long-term and stable operation of the device. The housing is equipped with a clamp to connect the protective cable.

Specification

MAIN

Application: Installation of IP cameras and peripherals in the network (Simultaneous signal and power transmission)

Interface:

• 1x RJ45 Hi-PoE port (10/100Mbps, Auto MDI/MDX)
• 7x RJ45 PoE port 802af/at (10/100 Mbps)
• 2x RJ45 UpLink port (10/100Mbps)

PoE budget: 100 W

Maximum power per port: Hi-PoE < 60W - port 1, at< 30W - port 2~8< /p>

Range:

• Normal mode: 100 m
• CCTV mode: 250 m

Capacity: 2 Gbps

Package forwarding speed: 7.2 Mpps

Housing type: Desktop

FUNCTIONALITY

Supported standards: IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af/at/PoE++, IEEE802.3x

Working modes:

• V - VLAN: All PoE ports can only communicate with uplink ports, communication between PoE ports is impossible
• S - Super Mode - CCTV Mode: Transmission distance up to 250m at 10Mbps on PoE ports
• N - Normal: Works as a normal network device, and all ports communicate freely

MAC array size: 1 K

Forwarding method: Store and Forward

LED optical signaling: Yes

Technology: Plug and play, End-span, PoE+, VLAN

Protective cable clamp: Yes

Support for IP cameras and network devices: Yes

OTHER

Material: Metal

Color: Black

Power Supply: AC 230 V 50-60Hz

Storage temperature: -40°C ~ 75°C

Working temperature: -10°C ~ 55°C

Moisture: 5~90% (non-condensing)

Contents of the set:

• 1x PoE Switch
• 1x Power Cable

Weight: 0.8 kg

Dimensions (Width /length /H ): 210x150x35 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5904194155667
Parametry	Manufacturer code	1822
Parametry	Certificates of conformity	CE
