Trumpai apie prekę
Prekė: Tinklo jungiklis Hikvision DS-3T1306P-SI/HS. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Hikvision
- Modelis: DS-3T1306P-SI/HS
Product description:

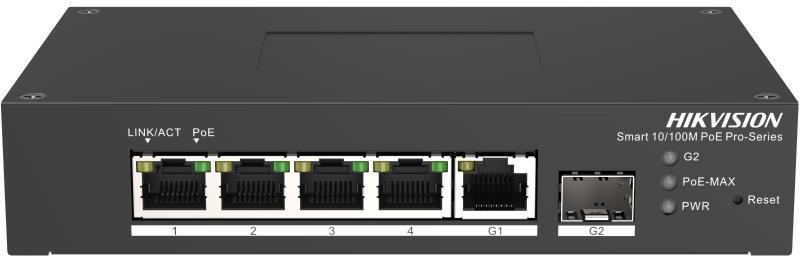

Hikvision DS-3T1306P-SI/HS switch
Model: DS-3T1306P-SI/HS
Key features
4-Port Fast Ethernet Smart Harsh PoE Switch
Visual network topology management
Network health monitoring
Layer 2 features: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
Wide operating temperature range: from -30 °C to 65 °C, adapted to work in difficult environmental conditions
Technical specifications
Model DS-3T1306P-SI/HS
Metal housing
Net weight 0.4 kg (0.8 lb)
Gross weight 1.0 kg (2.2 lb)

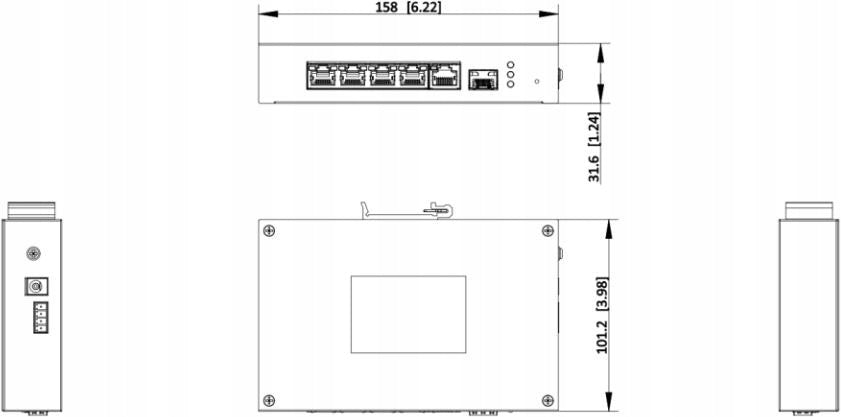

Dimensions (W × H × D) 158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'')
Operating temperature -30 °C to 65 °C (-22 °F to 149 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (non-condensing)
Relative humidity 5% to 95% (non-condensing)
Power supply 48 VDC, 1.36 A
Installation Mode: Desk-top, DIN rail
Max. power consumption 65 W
Power consumption (no load) 5 W
6 kV surge protection
Network Ports: 4 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit Fiber Optic
2K MAC Address Table
Switching capacity – 14 Gbps device
Switching capacity – 4.8 Gbps ports
Packet forwarding speed – device 10.42 Mpps
Packet forwarding speed – ports 3.57 Mpps
Buffer memory 1 Mbit
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pins 8-pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Ports 1-4
Max. power per PoE port 30 W
PoE power budget 60 W
Long Range Mode Ports 1-4: Up to 300 m
Port Isolation Ports 1–4
PoE Watchdog Ports 1–4
QoS Port Priorities, SP, WRR
VLAN 802.1Q, ID 1–4094, Trunk/Access mode
Loop Prevention 802.1D STP, 802.1w RSTP
Web Management, Hik-Central Pro, Hik-Partner Pro
DHCP Client
Super IP 10.180.190.200
Cable Diagnostics Detection of breaks, short circuits and cable length
LLDP IEEE 802.1ab
Port mirroring Yes
Port Bandwidth Limiting Yes
Storm Control Broadcast, multicast, unknown unicast
DHCP Snooping Yes (disabled by default)
EMC compliance EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014), CE-LVD (EN 62368-1:2014+A11:2017)
Environmental compliance CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (EC) No. 1907/2006
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Hikvision |
| Parametry | Product weight with unit packaging | 0.4 kg |
| Parametry | Number of ports | 6 |
| Parametry | LAN port operating standard | 10/100 Mbps |
| Parametry | EAN (GTIN) | 5906832523586 |
| Parametry | Manufacturer code | DS-3T1306P-SI/HS |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
