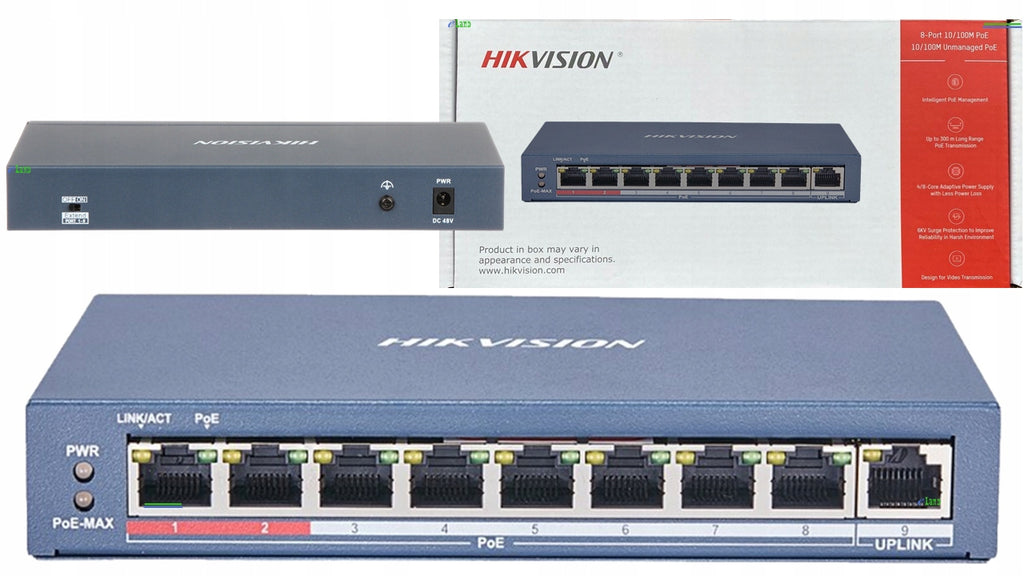

Tinklo jungiklis Hikvision DS-3E0109P-E(C), 9 PoE prievadai

Trumpai apie prekę

Prekė: Tinklo jungiklis Hikvision DS-3E0109P-E(C), 9 PoE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3E0109P-E(C)

9-Port Switch (8xPoE) 115W

The 9-port, unmanaged PoE DS-3E0109P-E(C) 10/100M desktop switch is the perfect solution for IP CCTV.

PoE switch (FastEthernt) dedicated for IP CCTV installation, equipped with 8 PoE/PoE+ ports, 1 UPLINK port (1x10/100M)

The switch has a built-in EXTEND function, which allows power supply and data transmission over a distance of up to up to 250 meters.

• Transmission Method: Store-and-forward
• Transmission rate: 8 ports 10/100 Mbps , 1 ports10/100Mbps
• 6KV surge protection
• Power supply: 48 V DC, 2,5 A (power supply included)
• PoE Budget: 115W

• Number of network ports: 8 × 100 Mbps PoE, 1 × 100 Mbps Ethernet
• Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• High priority ports: 1-2
• Long-distance transmission ports: 1-8
• MAC array size: 2K
• Matrix switching speed: 1.8 Gbps
• Maximum upload speed: 1.339 Mpps
• Internal cache: 1 Mbit
• PoE standard: IEEE 802.3af, IEEE 802.3at
• PoE power supply: 8 ports, 1-8
• PoE budget per port: 30W
• Maximum PoE budget (total): 115W
• Maximum power consumption: 120W
• Housing: metal
• Gross weight: 1.01 kg
• Net weight: 0.35 kg
• Dimensions: 170 mm × 27.6 mm × 93.1 mm
• Working temperature: -10°C to 55°C
• Storage temperature: - 40°C to 85°C
• Moisture: 5% is 95% (non-condensing)
• Power supply: 48 VDC, 2.5 A
• Power consumption: 5 W

• original product of the brand Hikvision
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have any doubts, we will be happy to advise and help
