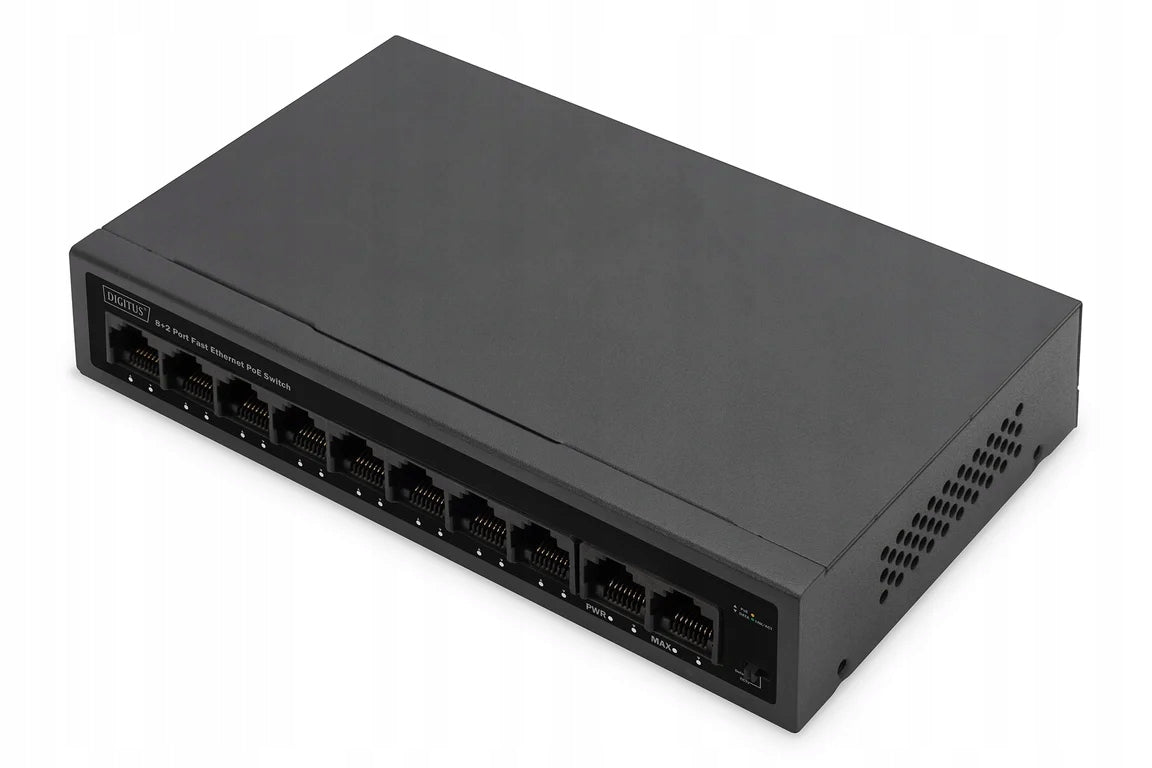

Tinklo jungiklis Digitus PoE, 8+2 FE prievadai

Trumpai apie prekę

Prekė: Tinklo jungiklis Digitus PoE, 8+2 FE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-95354

By providing power and data transmission on the same cable, you can easily extend the network to places where there is no access to power.

- Interface: RJ45 10*10/100 connector

- PoE standard: IEEE802.3af/at

- PoE connection: port 1-8

- Total PoE budget: 60 W

- Power supply: 65 W

- Most important feature: CCTV

- PoE connection power: max. 30 IN

- RJ45 PoE power supply: A mode anode 1/2 cathode 3/6

- Indicator: PWR（green）, LNK/ACT （green）PoE（orange）

- Network media: 10BASE-T: UTP cable category 3,4,5 （≤100m）

- 100BASE-TX: UTP Category 5 cable, 5e （≤100m）

- 1000BASE-T: UTP Category 5 cable, 5e （≤100m）

- MAC address array: 2K, automatic examination, automatic updates

- Jumbo Frame: 1536 bytes

- Package buffer: 448 Kbit

- Packet forwarding speed: 1.488 Mpps

- Bandwidth: 2 Gbps

- Dimensions: 168*93*32 mm

- Energy efficiency: supports IEEE 802.3az standard

- Network input: 100~240 V AC, 50/60 Hz

- Operating temperature: 0°C to 40°C

- Storage temperature: -40°C to 70°C

- Operating humidity: 10% to 90% non-condensing

- Air humidity at the storage site: 5% to 90% non-condensing

- Surge protection: common mode ±2KV, differential mode ±1KV

- MTBF: >50 000 hours

- Electrostatic standard: contact ±6KV, air ±8KV

The Digitus PoE DN-95354 network switch has a CCTV function that allows transmission over ultra-long distances of 250 meters. Users can optionally turn the CCTV function on or off. Improves network security and provides protection against network interference.

✏ The most important technical parameters:

• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-TX, 1000BASE-T
• Network - Data transfer speed over Ethernet LAN: 10,100 Mbit/s
• Network - Supported cable types: Cat3, Cat4, Cat5, Cat5e
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Flow control support: Yes
• Wireless LAN functions - Communication standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
• Features - Protection against sudden voltage increase: Yes
• Features - Bandwidth: 20 Gbit/s
• Features - Country of origin: China
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 10
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Ports and interfaces - Number of Fast Ethernet (PoE) ports: 8
• Ports and interfaces - Number of Fast Ethernet ports (copper): 10
• Ports and interfaces - Power connector: AC input socket
• Performance - MTBF (Mean Interval Period): 50000 h
• Design - Stackable product: No
• Design - LEDs: Operation, Link, PoE, Power supply
• Design - Colour of product: Black
• Power - Power Source: AC
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - Power consumption: 65 W
• Power - Protection against sudden voltage increase: 2 kV
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 90%
• Management Features - Switch Type: Managed
• Data transfer - Forwarding speed: 14,88 Mpps
• Data transfer - Address table size: 2000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9216
• Data transfer - Packet buffer memory: 2 MB
• Power Supply - Power Supply Included: Yes
• Logistics data - Mask with serial number: 85176200
• Weight and sizes - Product height: 32 mm
• Weight and sizes - Product width: 168 mm
• Weight and sizes - Product depth: 93 mm
• Weight and sizes - Weight including packaging: 881,176 g
• Power over Ethernet (PoE) - PoE Support: Yes
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 60 W
• Packaging data - Package depth: 195 mm
• Packaging data - Package capacity: 2051,59 cm³
• Package Contents - Cables: AC
• Content of the package - Quick Start Guide: Yes
• Classification - Manufacturer code: DN-95354
• Classification - EAN: 4016032485919
• Classification - Product ID: 111222347

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Digitus
Parametry	Product weight with unit packaging	0.881 kg
Parametry	Number of ports	8
Parametry	LAN port operating standard	10/100 Mbps
Parametry	EAN (GTIN)	4016032485919
Parametry	Manufacturer code	DN-95354
