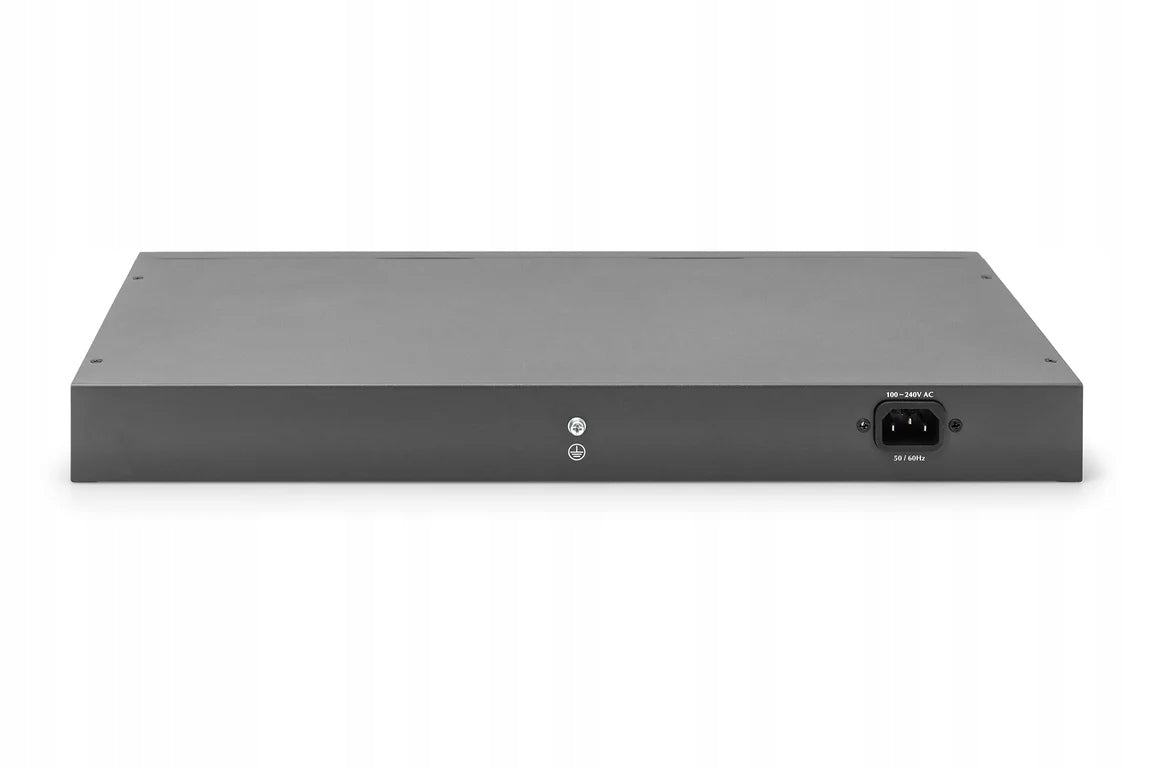

Tinklo jungiklis Digitus, 16 prievadų, gigabitinis, 19 colių, nevaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Digitus, 16 prievadų, gigabitinis, 19 colių, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-95347-2

Digitus 16-Port Gigabit Network Switch, 19-Inch, Unmanaged, 2 Uplink Ports, SFP. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 16. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 36 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE... Power connector: AC input socket. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Management Features - Switch Type: Not Managed
• Data transfer - Routing/switching bandwidth: 36 Gbit/s
• Data transfer - Forwarding speed: 26,78 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9216
• Data transfer - Packet buffer memory: 4,1 MB
• Power over Ethernet (PoE) - PoE Support: Yes
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 250 W
• Features - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Full duplex: Yes
• Features - Number of fans: 2 went.
• Performance - Colour of product: Grey
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 16
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 16
• Ports and interfaces - Number of SFP slots: 2
• Ports and interfaces - Number of connection ports: 2
• Ports and interfaces - Power connector: AC input socket
• Design - Stackable product: No
• Design - Layout: 1U
• Construction - Rack mounting options: Yes
• Design - LEDs: Yes
• Construction - Housing material: Metal
• Content of the package - Quick Start Guide: Yes
• Package Contents - Cables: AC
• Power - Power supply included: Yes
• Power - Power Source: AC
• Power - Maximum power consumption: 260 W
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50/60 Hz
• Power over Ethernet: 55 V
• Packaging data - Package width: 320 mm
• Packaging data - Package depth: 500 mm
• Packaging data - Package height: 75 mm
• Packaging data - Weight including packaging: 3,17 kg
• Working conditions - Permissible relative humidity: 5 - 90%
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Relative humidity range: 10 - 90%
• Network - 10G support: No
• Network - Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s
• Network - Half duplex: Yes
• Network - Flow control support: Yes
• Network - Supported auto-learning MAC addresses: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Network - VLAN support: Yes
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product depth: 207 mm
• Logistics data - Country of origin: China
• Classification - Manufacturer code: DN-95347-2
• Classification - EAN: 4016032492023
• Classification - Product ID: 120647693
