Trumpai apie prekę

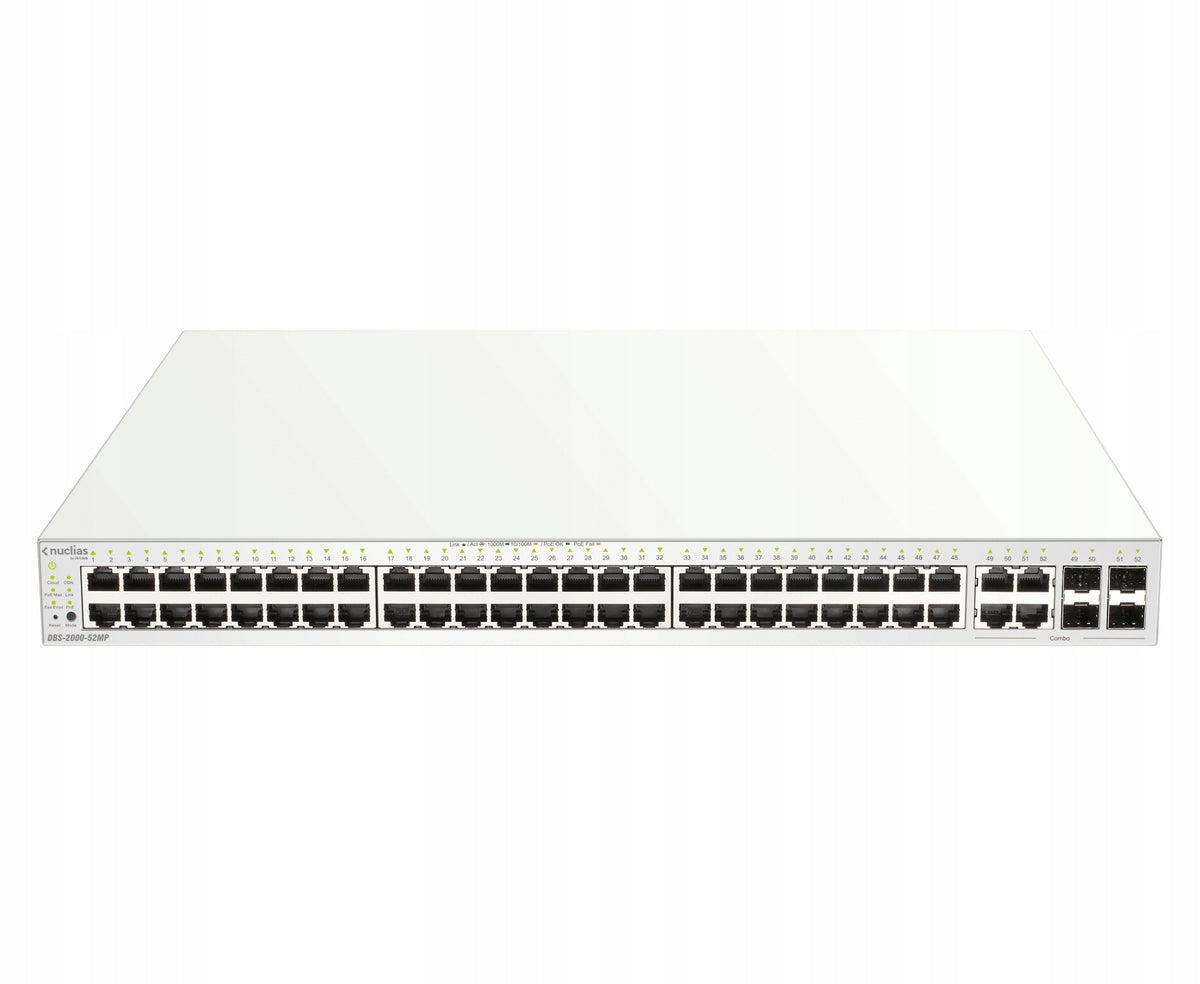

Prekė: Tinklo jungiklis D-Link Nuclias DBS-2000-52MP, 52 prievadų, Gigabit, PoE+, valdomas. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: D-Link
- Modelis: DBS-2000-52MP
D-Link Nuclias DBS-2000-52MP is a managed L2 layer switch designed to work in local area networks requiring PoE+ power. The device offers 48 Gigabit Ethernet ports (10/100/1000) and 4 SFP combo ports, enabling flexible copper and fiber optic connections. PoE+ support on all 48 ports with up to 30W per port and a total budget of 370W allows you to power cameras, access points and other network devices.
The switch provides a switching bandwidth of 104 Gbit/s and a forwarding capacity of 77.4 Mpps, supported by 12 MB packet buffer. The device is equipped with a 700 MHz processor, 256 MB DDR3 memory and 32 MB flash memory, as well as L2 functions such as VLAN, STP and link aggregation. The enclosure allows installation in a standard rack cabinet; dimensions and weight allow installation in office and ICT environments.
The device operates in a wide range of temperatures and humidity, and its power supply accepts an input voltage of 100 – 240 V AC. The project focused on reliable PoE power operation and port scalability, while maintaining standard network management and monitoring functions.
Specification
- Model: DBS-2000-52MP
- Switch Type: Managed
- Switch Layer: L2
- RJ-45 ports: 48 x 10/100/1000
- SFP (combo) ports: 4
- PoE Support: Yes
- PoE Ports: 48
- PoE power per port: 30 W
- Total PoE budget: 370 W
- Switching bandwidth: 104 Gbit/s
- Transfer Speed: 77.4 Mpps
- Packet buffer memory: 12 MB
- Processor (Frequency): 700 MHz
- Internal memory: 256 MB
- Flash memory: 32 MB
- Supported standards: IEEE 802.3ad, IEEE 802.3at
- Security Features: WPA, WPA2, IGMP snooping, static MAC
- AC power supply: 100 - 240 V
- Maximum power consumption: 478.9 W
- Heat Emission: 1634.01 BTU/h
- Operating temperature range: -5 - 50 °C
- Storage temperature range: -20 - 70 °C
- Operating humidity range: 0 - 95 %
- Dimensions (Width): 440 mm
- Dimensions (Height): 44 mm
- Dimensions (Depth): 430 mm
- Weight: 6.26 kg
- Color: Grey
- Can be mounted: Rack mounting
- LED: Yes
- Memory buffer: DDR3-SDRAM
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | D-Link |
| Parametry | Product weight with unit packaging | 8.66 kg |
| Parametry | Number of ports | 48 |
| Parametry | EAN (GTIN) | 790069442988 |
| Parametry | Manufacturer code | DBS-2000-52MP |
