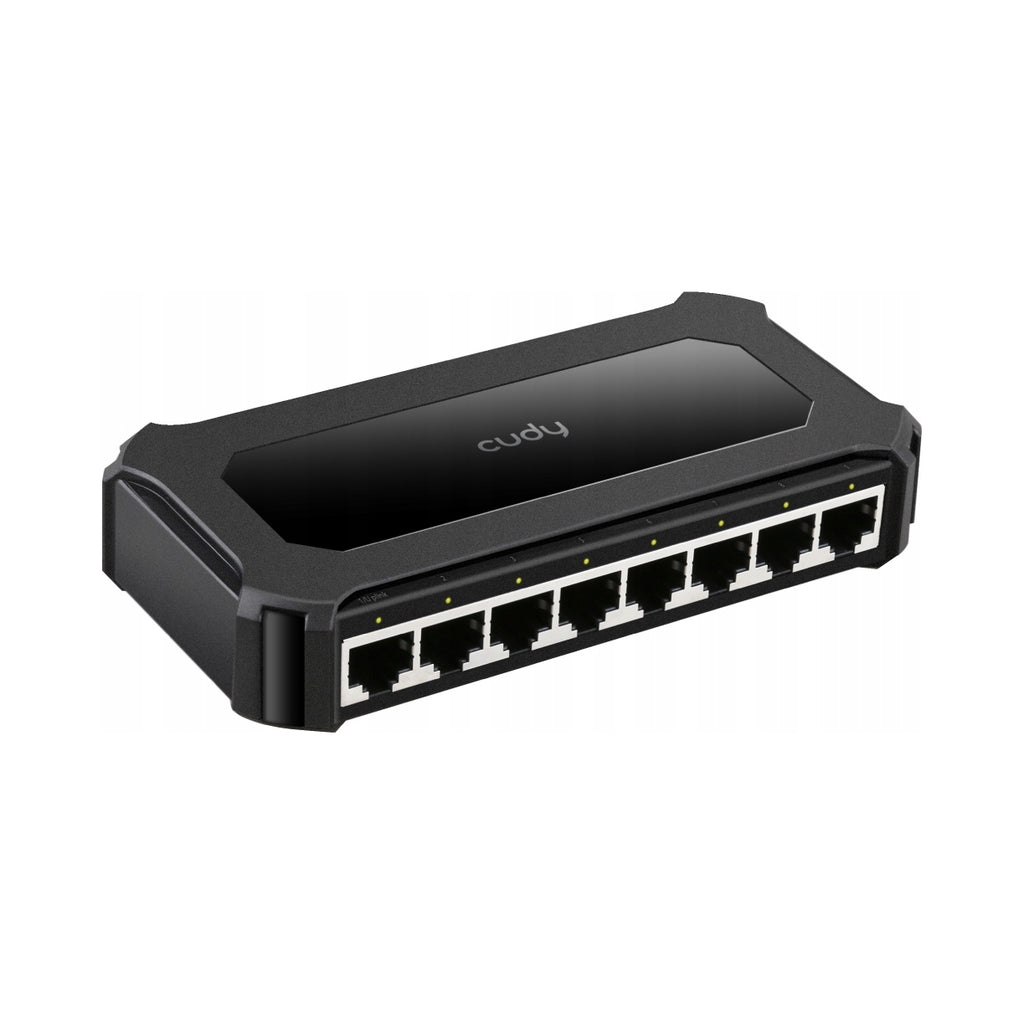

Tinklo jungiklis Cudy GS108D, 8 prievadų, 2 vnt.

Trumpai apie prekę

Prekė: Tinklo jungiklis Cudy GS108D, 8 prievadų, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: GS108D

• Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
• Non-blocking switching architecture allows packets to be transmitted and filtered at full wired speed
• Store-and-Forward switching method
• Supports 16K MAC address automatic learning
• Cudy Green technology saves energy up to 85%
• Plug & Play - plug and use, no setup required

Easy to use

Plug and play technology - the device does not require configuration. Auto MDI/MDIX eliminates the need for patch cables.

High efficiency

RJ-45 ports with automatic negotiation can ensure the transfer of large files, as well as be compatible with any 10/100/1000 Mbps Ethernet devices. Thanks to the non-blocking switching architecture, the product transmits and filters packets at full cabling speed, ensuring maximum bandwidth.

IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode provide increased bandwidth to relieve network congestion, making the switch work reliably.

Gigabit ports for faster speeds

Boost your network speed with the 8-port Gigabit switch. Non-blocking, 8 ports of 10/100/1000 Mbps allow you to instantly transfer large files with high bandwidth without interference.

High efficiency

RJ-45 ports with automatic negotiation can provide transfer of large files, as well as be compatible with any 10/100/1000 Mbps Ethernet devices.

Green Technology Cudy

Saves energy up to 85%

Technical specification

Model - GS108D

Number of ports - 8 adaptive ports 10/100/1000M RJ-45

Switching capacity - 16 Gbps

Upload Mode - Storage and Forward

Power Input - DC 5V/1A (Power Supply)

Consumption - max 2,3 W

Network protocol

• IEEE802.3 (10Base-T)
• IEEE802.3u (100Base-TX)
• IEEE802.3ab (1000Base-TX)
• IEEE802.3x (flow control)

Network medium

• 10Base-T: Cat3,4,5 UTP (≤100m)
• 100Base-TX: Cat5, 5e UTP (≤100m)
• 1000Base-TX: Cat5e, 6 UTP (≤100m)

Working environment

• Operating Temperature: -10~40°C
• Storage temperature：-40~70°C
• Operating Humidity: 10%~90% (non-condensing)
• Storage temperature: 5%~90% (non-condensing)

LED indicators

• Power, connection/operation LEDs

Size

• Product Size: 143*72,7*26,9mm
• Net weight of product: 215g

Content of the set

• power supply
• switch
• instruction manual

Frame filtering and forwarding speed

• 10Mbps: 14880pps
• 100Mbps: 148800pps
• 1000Mbps: 1488000pps

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Cudy
Parametry	Product weight with unit packaging	0.23 kg
Parametry	Number of ports	8
Parametry	Number of LAN (RJ-45) ports	8
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	6971690790103
Parametry	Manufacturer code	GS108D
Parametry	Certificates of conformity	CE,WEEE
