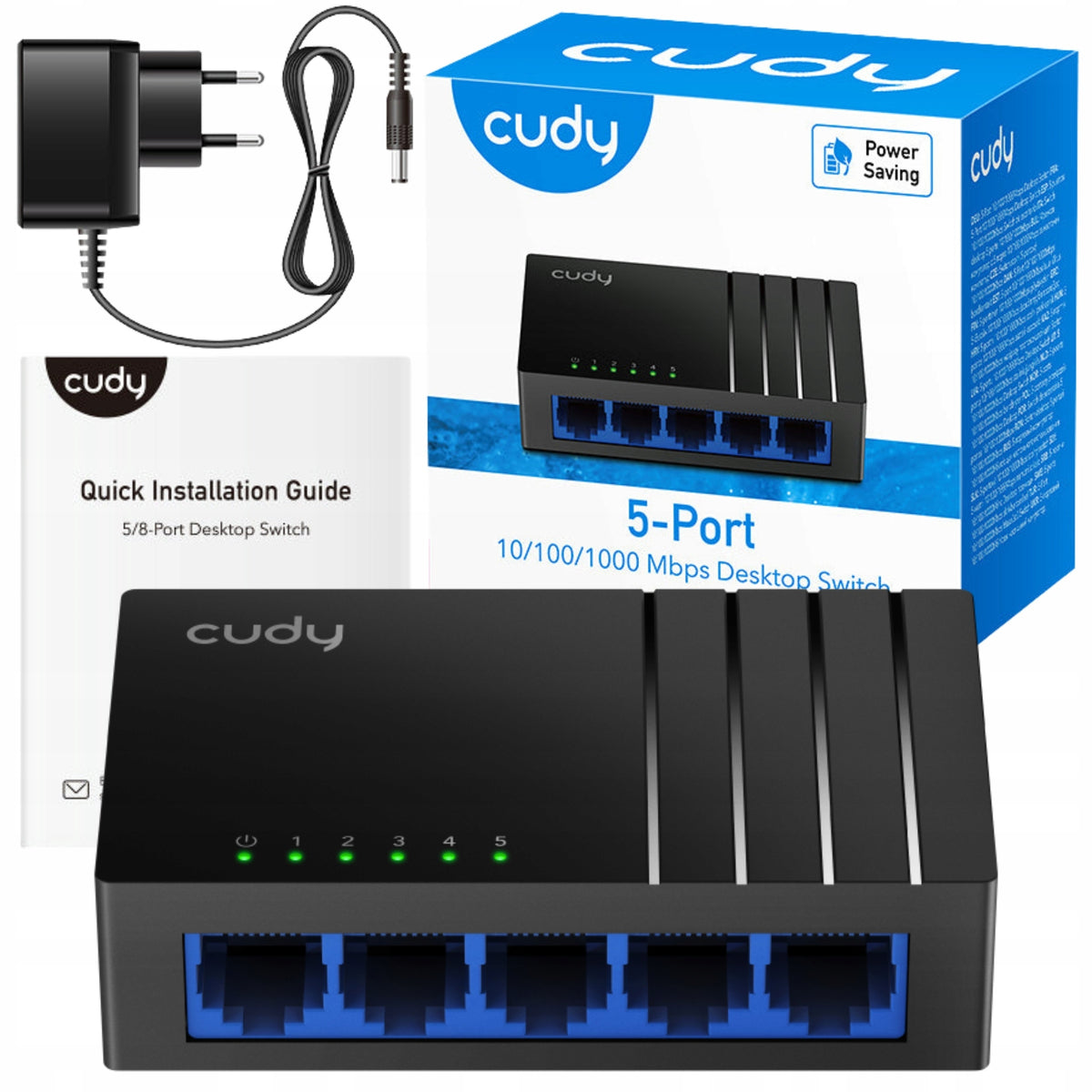

Tinklo jungiklis Cudy GS105D, 5 jungčių, gigabitinis Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis Cudy GS105D, 5 jungčių, gigabitinis Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: GS105D

✅ The Cudy brand is a combination of innovative technologies, solid quality and modern design. Its networking solutions provide stable, fast and secure connections that support both everyday life and demanding business applications. Thanks to continuous development and attention to detail, Cudy has gained the trust of customers around the world.

✅ Main advantages:

➡ Ports: 5× Gigabit Ethernet – fast and stable expansion of the wired network in the home, office and FTTB installations.

➡ Transmission range: up to 140 m – greater installation flexibility and reliable connection also on longer sections.

➡ Energy savings: max 1.2 W / idle mode 0.2 W – low power consumption and cheaper daily operation.

➡ Assembly: desktop / wall-mount – convenient positioning on the desk or wall mounting, depending on your needs.

➡ Compact housing: 88 × 52.5 × 24 mm – modern appearance and small size that fits easily into any position.

✅ Cudy GS105D

A reliable solution for extending your wired network both at home and in an office environment. Thanks to five FE ports, it allows for quick and stable connection of computers, printers, TVs and consoles. The metal casing ensures durability and resistance to damage, and the compact design means the device fits easily in a telecommunications cabinet, on a desk or mounted on a wall. This is a practical way to create a stable and efficient network without unnecessary complications.

✅ Reliable power supply

✔ Expand network for more devices

Connect additional equipment and provide them with fast and reliable access to the Internet, without having to invest in extensive infrastructure.

✔ Stable connection for office computers

Gain confidence that all positions in the office will use a high-performance wired network, which translates into better productivity and data security.

✔ Enhance your home devices with Ethernet

Deliver a stable signal to your TV, console, or other multimedia equipment to enjoy smooth operation and uninterrupted network access.

✅ Functionality and ease of use

• Instant Gigabit - five 10/100/1000 Mbps Ethernet ports provide fast data transfer without interference or latency.
• Greater transmission range - Supports up to 140 meters of Gigabit transmission – 40% more than typical switches – making it easier to install in large facilities.
• Energy-efficient chipset - the device automatically reduces power consumption when Ethernet ports are not in use, which reduces operating costs.
• Wall mountable - the housing is equipped with two mounting holes, which makes it easy to install the device on the wall.

➡ Technical specification:

• Brand: Cudy
• Model: GS105D
• Ports: 5 × Gigabit RJ45
• LEDs: power supply; Link/ACT for each Ethernet port
• Power interface: DC socket
• Copper cable transmission speed and range: Cat. 3 or higher — 100 m at 10 Mbps; Cat. 5 or higher — 100 m at 100 Mbps; Cat. 5e or higher — 140 m at 1 Gbps
• MAC address table: 2048
• Maximum switching bandwidth: 10 Gbps
• Maximum packet forwarding speed: 7.44 Mpps
• Jumbo Frame: 9 KB
• Package buffer: 1 Mbit
• Energy saving: yes
• Power supply method: DC
• Power Input: 5 V ⎓ 0.55 A
• Power supply included: input 100 – 240 V~, 50/60 Hz; output 5 V ⎓ 0.55 A
• Maximum power consumption: 1.2 W
• Power consumption at rest: 0.2 W
• Supported standards: 802.3x Flow Control; 802.3i 10BASE-T; 802.3u 100BASE-TX; 802.3ab 1000BASE-T
• Functions L2: IGMP Snooping
• Electromagnetic resistance: IEC/EN 61000-4-2, level 2 ESD — 4 kV contact, air 8 kV; IEC/EN 61000-4-5, level 3 Surge — 2 kV
• Working and storage conditions: operating temperature 0 to 40°C; storage temperature -40 to 70°C; operating humidity 10 to 90 % without condensation; storage humidity 5 to 90 % without condensation
• Device dimensions: 88 × 52.5 × 24 mm
• Mass: 57.1g
• Housing material: plastic
• Assembly: desk; wall
• Package contents: GS105D; power supply; installation instructions
• Retail packaging dimensions: 92 × 88 × 57 mm

Why choose Cudy solutions?

✔ Innovative approach to connectivity – Cudy creates modern technologies that provide stable, fast and reliable connections in any situation.

✔ Ease of setup and operation – simple start-up and intuitive management make the use of Cudy devices convenient for both individuals and businesses.

✔ Full functionality at no hidden cost – Cudy offers solutions ready to work immediately after installation, without additional fees and complicated licenses.

✔ Universal application – they work well in homes, offices, small and medium-sized companies, as well as in demanding industrial and outdoor environments.

✔ Reliability and safety – high quality, modern security and stable operation minimize the risk of failures and interruptions.

✔ Trust around the world – thanks to the care for innovation and quality, Cudy has gained recognition of customers in many markets, becoming a strong competitor to the largest brands.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Cudy
Parametry	Product weight with unit packaging	0.17 kg
Parametry	Number of ports	5
Parametry	Number of LAN (RJ-45) ports	5
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	5903583576519
Parametry	Manufacturer code	GS105D
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
