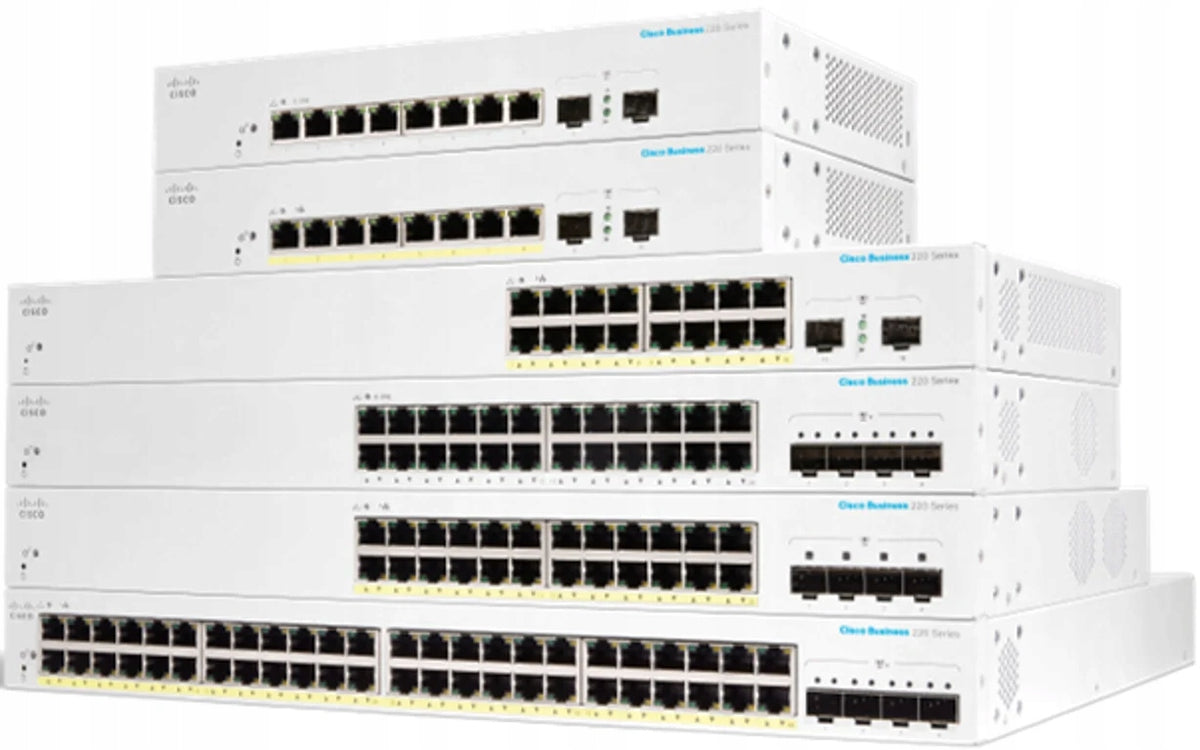

Tinklo jungiklis Cisco CBS220-48P-4G-EU, valdomas, 48 portų, Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis Cisco CBS220-48P-4G-EU, valdomas, 48 portų, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: CBS220-48P-4G-EU

Cisco CBS220-48P-4G-EU. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 48. Address table size: 8192 inputs, Routing/switching throughput: 104 Gbit/s. Communication standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z,... PoE support. Possibilities of mounting in the frame

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 104 Gbit/s
• Data transfer - Address table size: 8192 inputs
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9216
• Multicast Features - Multicast Support: Yes
• Multicast functions - Number of groups of filtered multicasts: 256
• Protocols - GARP VLAN Registration Protocol (GVRP): Yes
• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 48
• Working conditions - Temperature range (operation): 0 - 50 °C
• Working conditions - Temperature range (storage): -20 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 10 - 90%
• Protection - DHCP functions: DHCP client
• Protection - Access Control List (ACL): Yes
• Protection - Access Control List (ACL) Policy: 512
• Protection - IGMP snooping: Yes
• Protection - IGMP alerts: 256
• Protection - MAC Address Filtering: Yes
• Protection - supports SSH/SSL: Yes
• Protection - protection against entering the loop: Yes
• Protection - BPDU filtering / Protection: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 48
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP slots: 4
• Network - 10G support: No
• Network - Encryption / security: SSL/TLS
• Network - Port duplication: Yes
• Network - Management Protocols: SNMP
• Network - Flow control support: Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - Automatic MDI/MDI-X: Yes
• Network - Spanning tree protocol: Yes
• Network - Head-of-line (HOL) blocking: Yes
• Network - VLAN support: Yes
• Network - Number of VLANs: 256
• Design - Rack mounting options: Yes
• Features - Communication standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x
• Design - Number of fans: 1 went.
• Features - PoE Support: Yes
• Features - Total Power over Ethernet (PoE) budget: 382 W
• Design - Colour of product: White
• Features - Device Software Updates: Yes
• Performance - LEDs: Yes
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2
• Management Features - Service Quality Support (QoS): Yes
• Management Features - Website Management: Yes
• Management Features - Reset Button: Yes
• Management Features - Configuring Location Settings (CLI): Yes
• Management Features - System Event Report: Yes
• Management Features - MIB Support: Yes
• Power - AC input frequency: 50 - 60 Hz
• Weight and sizes - Product weight: 5,29 kg
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 257 mm
• Classification - Manufacturer code: CBS220-48P-4G-EU
• Classification - EAN: 0889728345064
• Classification - Product ID: 92297558
