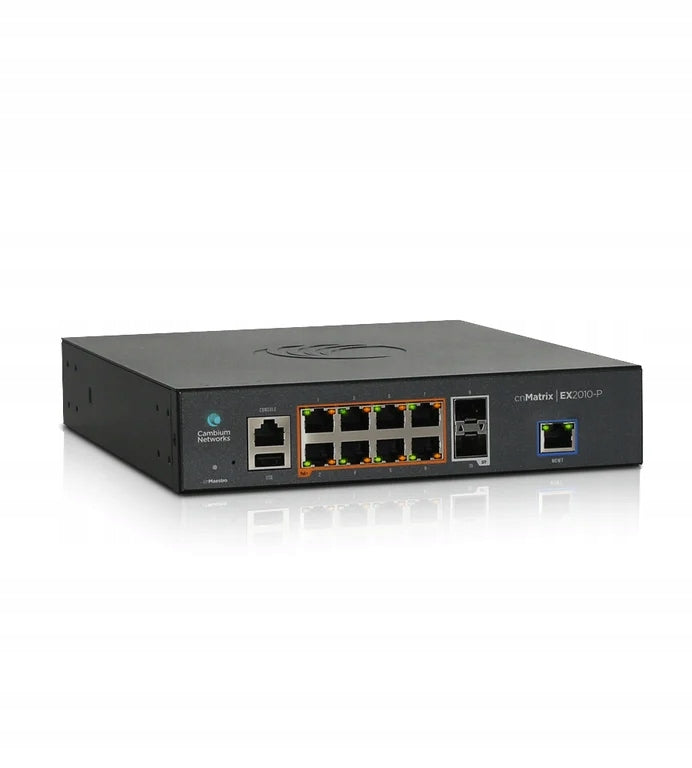

Tinklo jungiklis Cambium Networks cnMatrix EX2010-P, valdomas, L2/L3, 1 Gb Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis Cambium Networks cnMatrix EX2010-P, valdomas, L2/L3, 1 Gb Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cambium Networks
• Modelis: MX-EX2010PXA-E

Cambium Networks cnMatrix EX2010-P. Switch type: Managed, Multilayer switch: L2/L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8, Number of USB 2.0 Ports: 1, Console Port: RS-232. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 20 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2/L3
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Cloud Managed: Yes
• Management Features - Traffic Classification: Yes
• Management Features - Traffic Shaping: Yes
• Management Features - Command-Line Interface (CLI) Configuration: Yes
• Management Features - System Event Log: Yes
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 8
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - Gigabit Ethernet Ports Quantity: 8
• Ports & Interfaces - SFP Module Slots Quantity: 2
• Ports & Interfaces - Console Port: RS-232
• Network - Networking Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - 10G Support: No
• Network - Copper Ethernet Cabling Technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Network - Port Mirroring: Yes
• Network - Full Duplex: Yes
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Broadcast Storm Control: Yes
• Network - Rate Limiting: Yes
• Network - Ethernet LAN Data Transfer Rate: 10, 100, 1000 Mbit/s
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: Port-based VLAN, Tagged VLAN
• Network - Number of VLANs: 4000
• Data Transmission - Routing/Switching Capacity: 20 Gbit/s
• Data Transmission - Throughput: 120 Mpps
• Data Transmission - MAC Address Table Size: 16000 entries
• Data Transmission - Number of Queues: 8
• Data Transmission - Static Route: Yes
• Data Transmission - Number of Static Routes: 64
• Data Transmission - Jumbo Frames Support: Yes
• Data Transmission - Jumbo Frames Size: 9000
• Multicast Features - Multicast Support: Yes
• Protocols - Management Protocols: SNMP v1/v2/v3, Telnet
• Design - Rack Mountable: Yes
• Design - Stackable: Yes
• Design - LED Indicators: Yes
• Design - Reset Button: Yes
• Performance - Built-in Processor: Yes
• Performance - Processor Clock Speed: 800 MHz
• Performance - Internal Memory Capacity: 512 MB
• Performance - Flash Memory Size: 128 MB
• Performance - Fanless: Yes
• Performance - MTBF (Mean Time Between Failures): 338917 h
• Power - Power Supply Included: Yes
• Power - Power over Ethernet (PoE): 54 V
• Power - AC Input Voltage: 100 - 240 V
• Power - Maximum Power Consumption: 10.54 W
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Fast Ethernet (PoE) Ports Quantity: 8
• Power over Ethernet (PoE) - Power over Ethernet (PoE) Power per Port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 100 W
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Relative Humidity Range: 55 - 95%
• Weight & Dimensions - Product Width: 210 mm
• Weight & Dimensions - Product Depth: 250 mm
• Weight & Dimensions - Product Height: 44 mm
• Weight & Dimensions - Product Weight: 1.99 kg
• Keyboard - Encryption / Security: HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS
• Security - DHCP Features: DHCP client, DHCP relay, DHCP server, DHCP snooping
• Security - Access Control List (ACL): Yes
• Security - Password Protection: Yes
• Security - IGMP Snooping: Yes
• Security - Authentication Type: IEEE 802.1x, RADIUS
• Security - BPDU Filtering / Protection: Yes
• Security - Authentication: Port-based Authentication
• Security - Queue Scheduling Algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
• Mouse - Form Factor: 1U
• Rear Panel I/O Ports - Number of USB 2.0 Ports: 1
• Features - Product Color: Black
• Logistics Data - Harmonized System (HS) Code: 85176990
• Classification - Manufacturer Code: MX-EX2010PxA-E
• Classification - EAN:
• Classification - Product ID: 65515528
