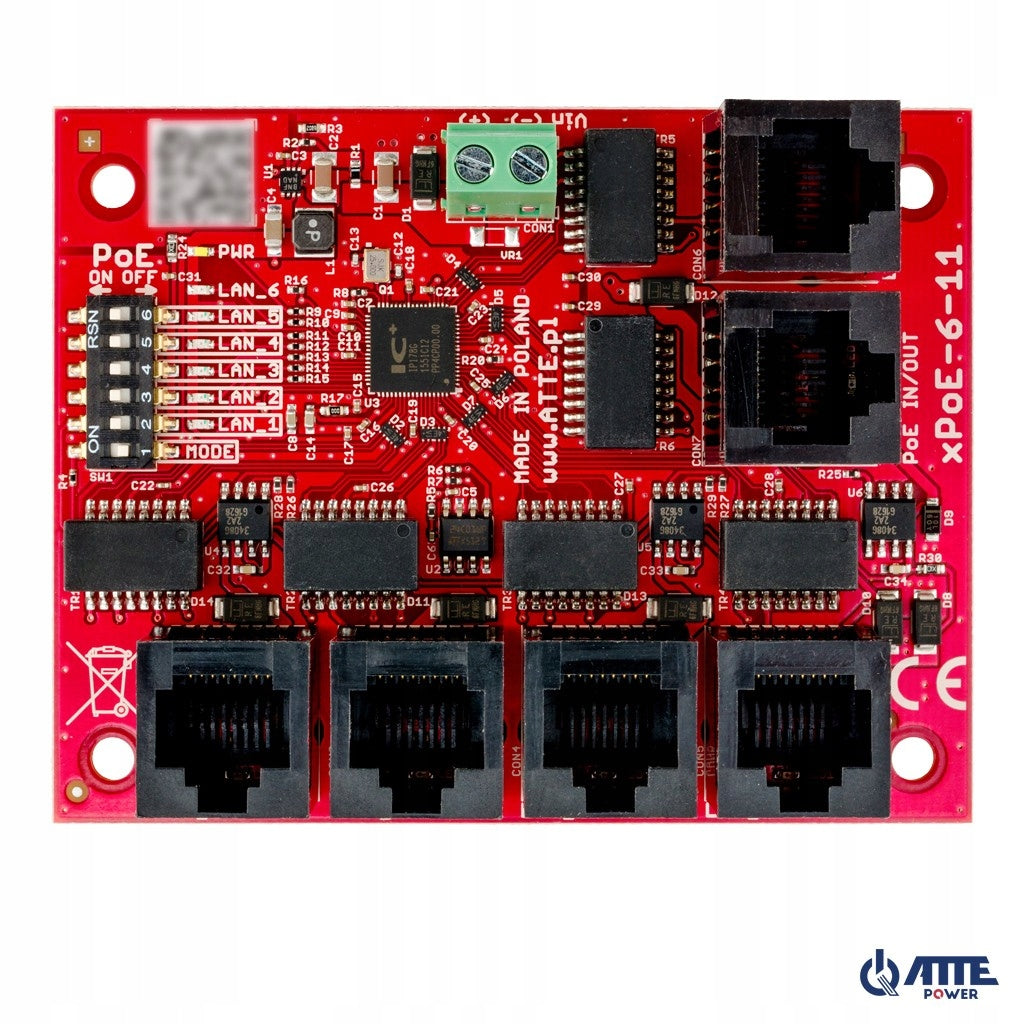

Tinklo jungiklis ATTE xPoE-6-11-OF

Trumpai apie prekę

Prekė: Tinklo jungiklis ATTE xPoE-6-11-OF. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: XPOE-6-11-OF

Universal PoE Network Switch

Dedicated to IP CCTV systems 6-port switch is a convenient solution

Safeguard

Electronic protection of PoE outputs ensures continuity of operation of the entire system at short circuit or overload of individual power branches and automatic return of voltage after the failure has subsided.

Unmanaged PoE switches and extenders are designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standards.

Key features and functions:

• possibility of powering 5 PoE 802.3at/af or PASSIVE receivers
• possibility of data transmission at 280m (in Long Range mode)
• electronic fuse independently for each PoE channel (auto return)
• possibility of switching off the power supply on selected PoE ports
• clear optical indication of power supply and data transmission status
• wide range of input voltage (10...56VDC)
• Output voltage = Input voltage
• up to 70W power on LAN_5 PoE IN/OUT port
• up to 40W of power on other PoE ports
• Powered by screw connector (Vin) or other PoE PASSIVE switch (PoE IN/OUT port)
• possibility of cascade power supply - one xPoE powers another (PoE IN/OUT port)
• easy and quick start-up without the need to configure parameters
• very low power consumption (<1,5W)
• small size of the module

Two modes of operation

Standard mode (OFF) all ports operate at a speed of 100 Mbps and offer an Ethernet network range of up to 100 meters.

Long Range (ON) mode the range is increased to 280 meters, and the speed on ports from 1 to 4 reduced to 10 Mbps. This bandwidth is sufficient to efficiently operate one camera.

In both modes, the UpLink 5 and 6 port speeds are 100 Mbps.

Thanks to the Long Range mode enabled, we provide greater flexibility in the placement of cameras. Increasing the distance from the switch allows you to cover a large area more easily without having to build additional distribution points.

Regardless of the operating mode selected, the switch supports PoE short circuit and surge protection to protect network devices. Port 6 UpLink regardless of the selected operating mode is not possible to turn on the PoE power supply. This allows you to securely connect different LAN segments.

Necessary mounting hardware included

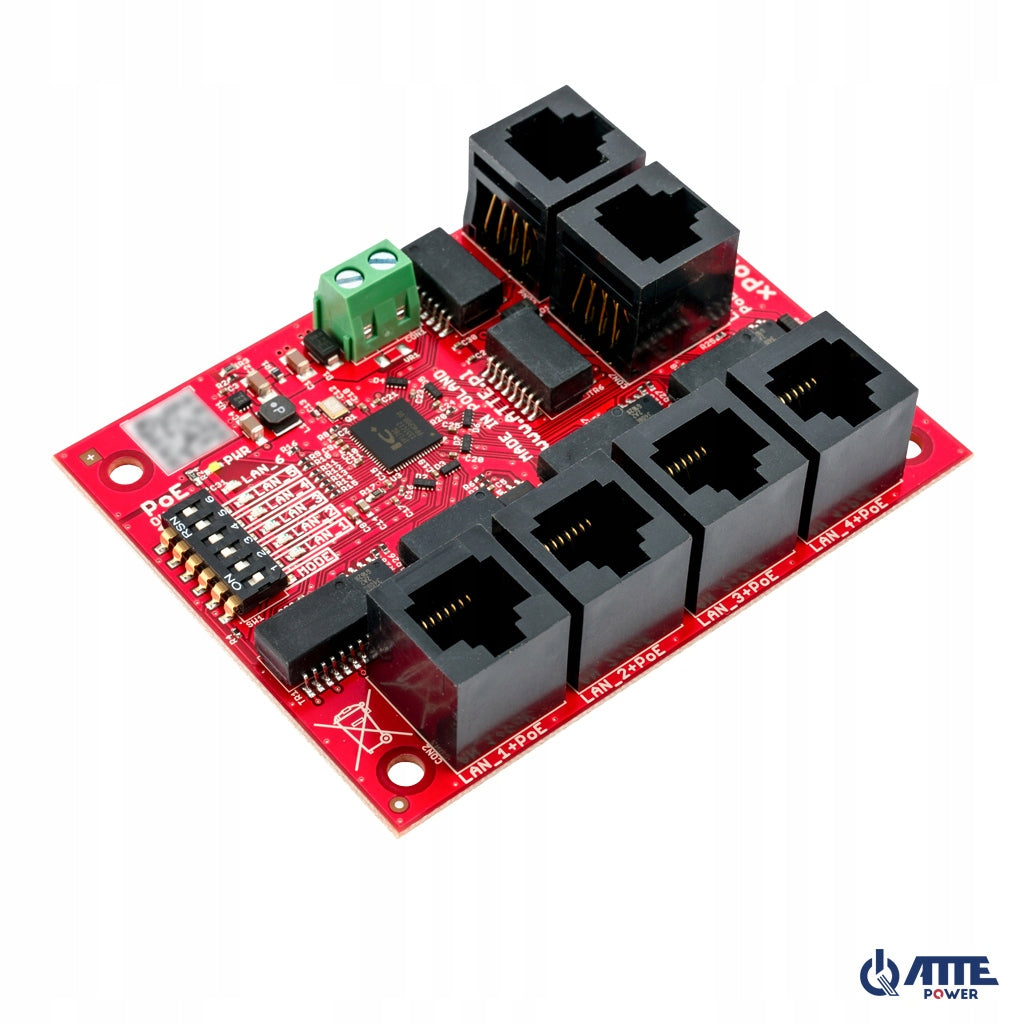

Example of ATTE xPoE-6-11-OF

Specifications
