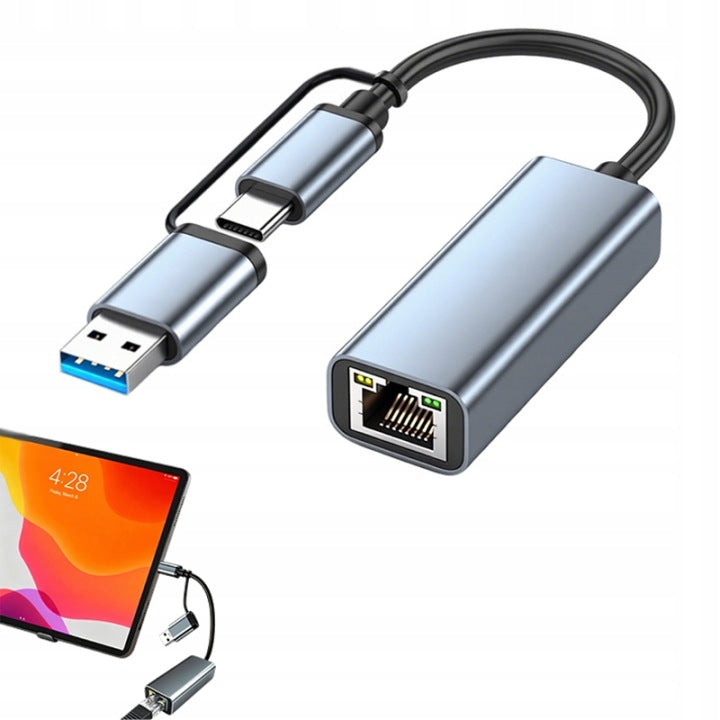

Tinklo adapteris USB-C/USB-A į Ethernet (RJ45), 1000 Mbps

Trumpai apie prekę

Prekė: Tinklo adapteris USB-C/USB-A į Ethernet (RJ45), 1000 Mbps. Kategorija: Tinklo plokštės.

• Gamintojas: no brand
• Modelis: EX260617

The adapter allows you to connect a device equipped with a USB-C or USB port to a wired Ethernet network using an RJ45 connector.

The solution will work especially in laptops and computers where there is no built-in RJ45 network port. The adapter is compact and designed for easy portability.

The most important features

Gigabit Ethernet support – allows you to use a wired network connection with speeds up to 1000 Mbps, depending on your device, cable and network infrastructure.

RJ45 connector – allows you to connect a standard Ethernet network cable to a compatible device.

USB-C and USB-A – the adapter has a solution for connecting both via USB-C and USB-A.

USB 3.0 – The adapter uses a USB 3.0 interface to support a network connection.

Plug and Play – on the packaging, the manufacturer indicates an easy Plug and Play connection.

Power supply from USB port – the adapter is powered directly from the connected USB port.

LED indicators – LEDs inform about activity and network connection.

Compact design – the small form makes it easy to store and transport the adapter.

Application

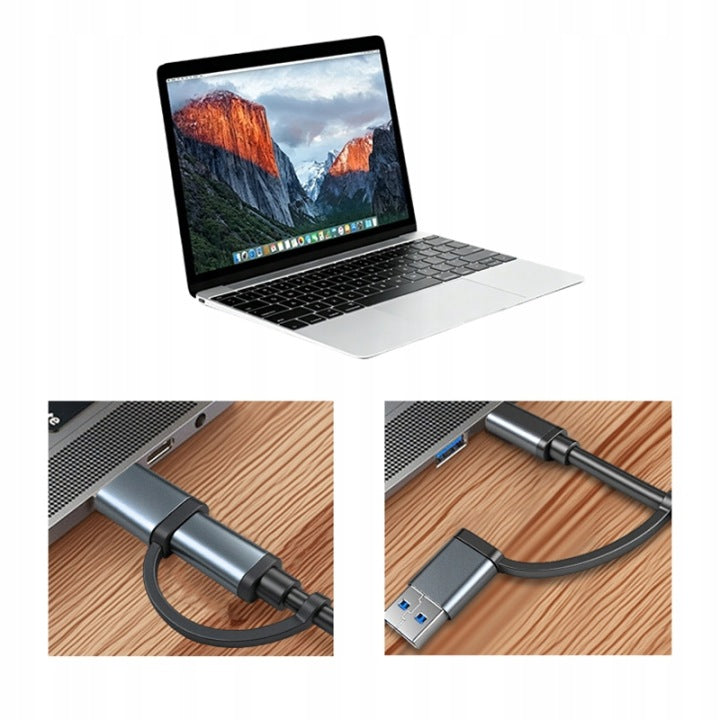

The adapter can be used to connect your laptop or computer to a wired Ethernet network when the device does not have its own RJ45 port.

It can also be useful in situations where the user wants to use a wired connection instead of a Wi-Fi connection.

After connecting the adapter to a compatible USB port and RJ45 Ethernet cable, you can access the wired network.

Supported standards

• IEEE 802.3 – 10BASE-T.
• IEEE 802.3u – 100BASE-TX.
• IEEE 802.3ab – 1000BASE-T Gigabit Ethernet
• IEEE 802.1Q – support for VLAN tagging.
• Auto MDI/MDIX – automatic detection and correction of crossover connection.
• Checksum Offload support for IPv4, IPv6, TCP and UDP.
• Large Send Offload support.

Technical parameters

Model: WK-01.

Name: Ethernet-1000Mbps.

Type: Ethernet network adapter.

Input Interface: USB-C/USB 3.0.

Network Interface: RJ45.

Supported network: 10/100/1000 Mbps.

Maximum declared Ethernet speed: 1000 Mbps.

Supported USB standard: USB 3.0.

Power supply: directly from the USB port.

Indicators: LED activity and connection.

VLAN support: yes, IEEE 802.1Q.

Auto MDI/MDIX: Yes.

Compatibility: Windows, Mac OS.

Adapter color: grey.

Contents of the set

• USB-C/USB-A to RJ45 Ethernet Network Adapter

FAQ

Does the adapter support Gigabit Ethernet?

Yes. The package includes Gigabit Ethernet support and speeds up to 1000 Mbps.

Does the adapter have an RJ45 connector?

Yes. RJ45 is used to connect an Ethernet network cable.

Can I use the adapter via USB-C?

Yes. The design shown on the package allows connection via USB-C.

Can I use the adapter via USB-A?

Yes. The adapter also has a USB-A connector visible in the product photo.

Does the adapter require an additional power supply?

No.Powered directly from USB port.

Does the adapter work with Windows?

Windows is listed as a supported system.

Does the adapter work with Mac OS?

Mac OS is listed on the package as a supported system.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Interface	USB 3.0
Parametry	Port type	Ethernet (RJ-45)
Parametry	Number of ports	2
Parametry	Number of LAN (RJ-45) ports	1
Parametry	Maximum transmission speed	1000 MB/s
Parametry	EAN (GTIN)	6979486535204
Parametry	Manufacturer code	EX260617
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
