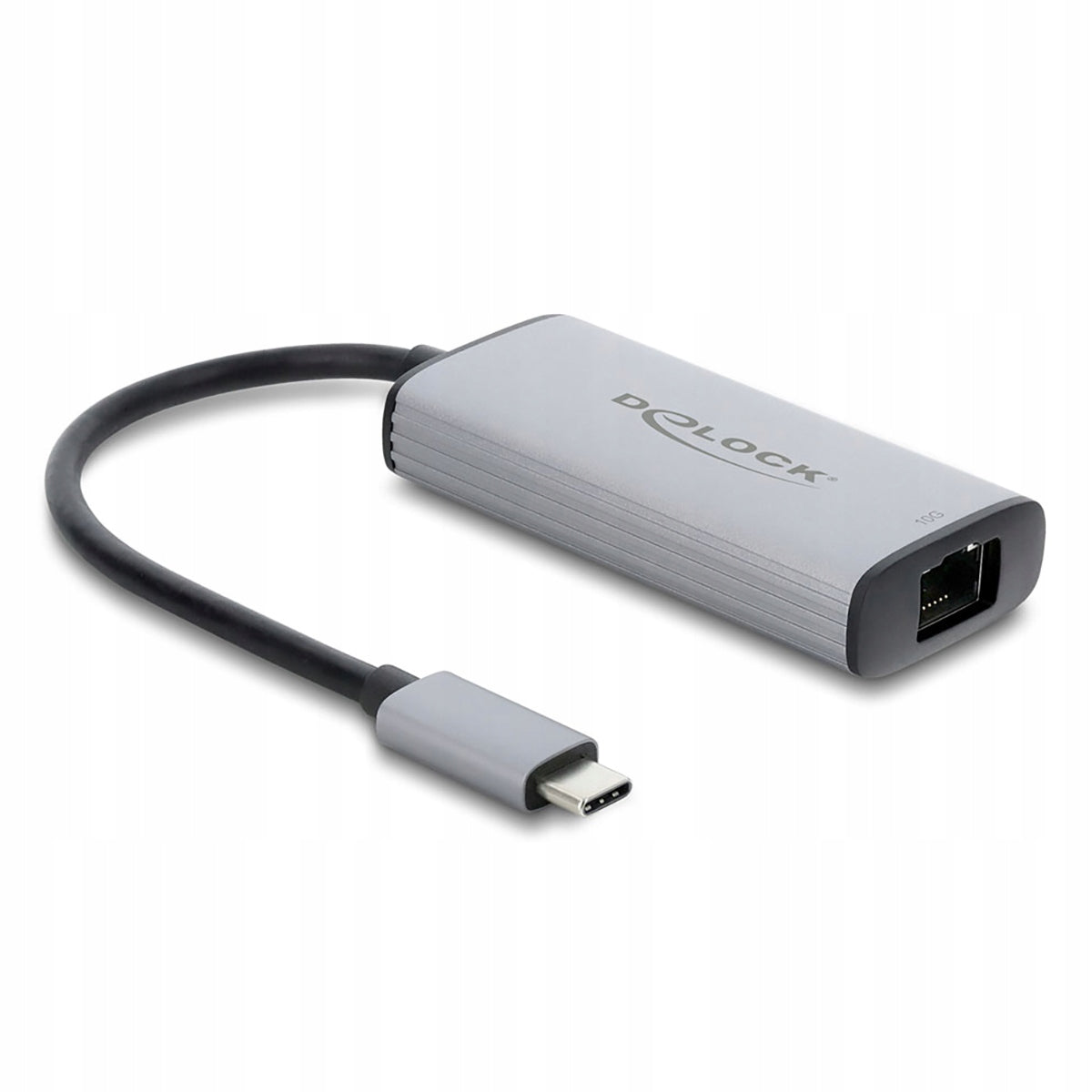

Tinklo adapteris Delock USB Type-C 10Gb/s LAN RJ45, USB-C, USB4, Thunderbolt

Trumpai apie prekę

Prekė: Tinklo adapteris Delock USB Type-C 10Gb/s LAN RJ45, USB-C, USB4, Thunderbolt. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 81590

Delock USB Type-C™ 10 Gigabit LAN is one of the most versatile 10GbE external network adapters on the market. Unlike many 10 Gigabit Ethernet adapters that require Thunderbolt or USB4, this model allows you to use high-speed networking also on computers equipped only with standard USB-C 5 Gbps or USB-C 10 Gbps ports.

Thanks to the modern Realtek RTL8159 controller, the adapter provides a maximum bandwidth of up to 10 Gbps in cooperation with a USB 20 Gbps port. At the same time, it maintains full functionality with slower USB-C interfaces, achieving transfers of about 7 Gbps at USB 10 Gbps and about 3 Gbps at USB 5 Gbps.

This is a huge advantage over many competing solutions that only work on high-speed Thunderbolt 40 Gbps or USB4 40 Gbps ports.

The adapter is perfect for professional applications such as mounting 4K and 8K video directly from NAS servers, working with large photo libraries, data backup, RAID support, audio production environments, and high-bandwidth business infrastructure.

Fast 10 Gigabit Ethernet network for every computer

The device supports the full range of Ethernet standards:

• 10 Mbps Ethernet
• 100 Mbps Fast Ethernet
• 1 Gb/s Gigabit Ethernet
• 2,5 Gb/s NBASE-T
• 5 Gb/s NBASE-T
• 10 Gb/s 10GBASE-T

Thanks to NBASE-T technology, the adapter automatically selects the highest possible connection speed. This allows you to take advantage of your existing Cat5e or Cat6 network cabling without the need for costly infrastructure upgrades.

Perfect for Apple, Windows and Linux

Delock USB Type-C™ 10 Gigabit LAN works with computers equipped with ports:

• USB-C 5 Gb/s
• USB-C 10 Gbps
• USB-C 20 Gbps
• USB4
• Thunderbolt 3
• Thunderbolt 4
• Thunderbolt 5

This makes the adapter an excellent solution for users of Apple Mac mini, Mac Studio, MacBook Pro, MacBook Air, Windows workstations, and Linux servers and computers.

Professional network functions

The network card supports a number of advanced functions used in professional environments:

• IEEE 802.3, 802.3u, 802.3ab
• IEEE 802.3bz (2.5GBASE-T and 5GBASE-T)
• IEEE 802.3an (10GBASE-T)
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.1Q VLAN
• IEEE 802.1P Network Traffic Prioritization
• IEEE 802.3x Full Duplex Flow Control
• Jumbo Frames up to 16 KB

The solution will work both in small companies and in professional production studios, where stable and fast network communication is required.

Compact aluminium construction

Robust housing made of aluminum effectively dissipates heat when working with heavy network load. The compact dimensions of 77 × 34 × 15 mm and the 15 cm USB-C cable make the adapter convenient to take on the go or use in an office environment.

LEDs inform about the activity and status of the network connection, and the power supply is carried out directly via the USB-C port without the need for an additional power supply.

The most important advantages

• Network speeds up to 10 Gigabit Ethernet
• It also works with 5 Gbps USB-C ports and 10 Gbps
• Compatible with USB4 and Thunderbolt 3, 4 and 5
• Support 1G, 2.5G, 5G and 10G Ethernet
• Realtek RTL8159 controller
• VLAN, Jumbo Frames and Energy Efficient Ethernet
• Premium aluminum housing
• Compatible with Windows 11, macOS and Linux
• Ideal for NAS, RAID arrays and professional workstations

If you are looking for a powerful 10GbE network card for a computer equipped with USB-C, USB4 or Thunderbolt, the Delock USB Type-C™ 10 Gigabit LAN is one of the most versatile and cost-effective solutions available on the market.
