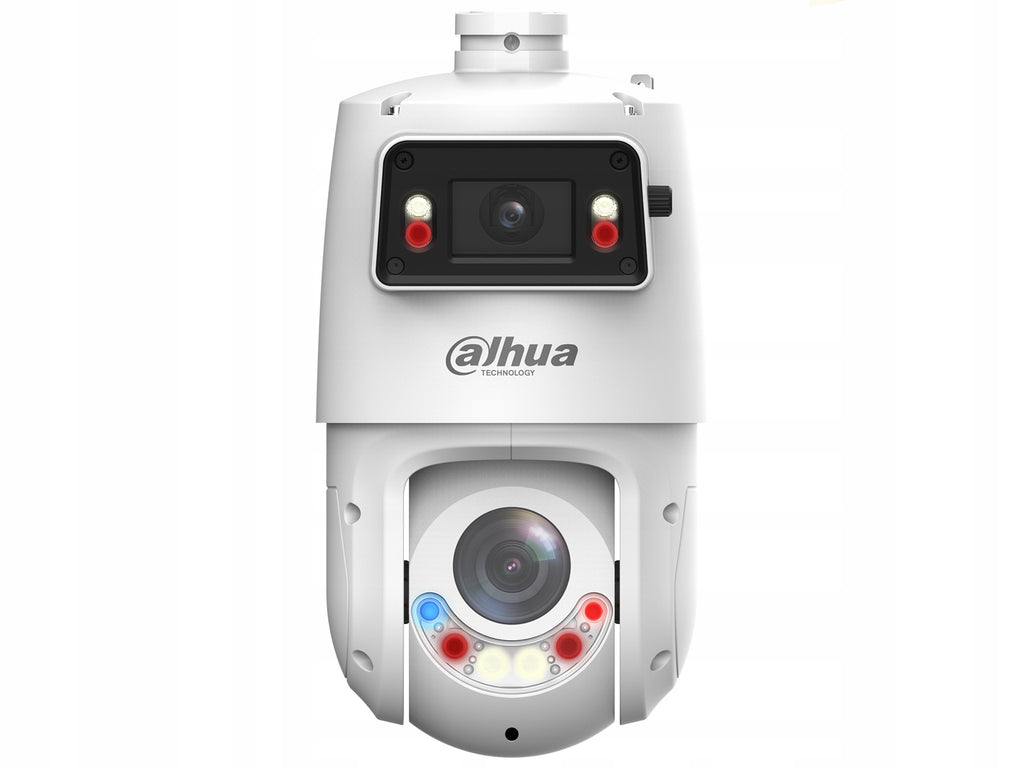

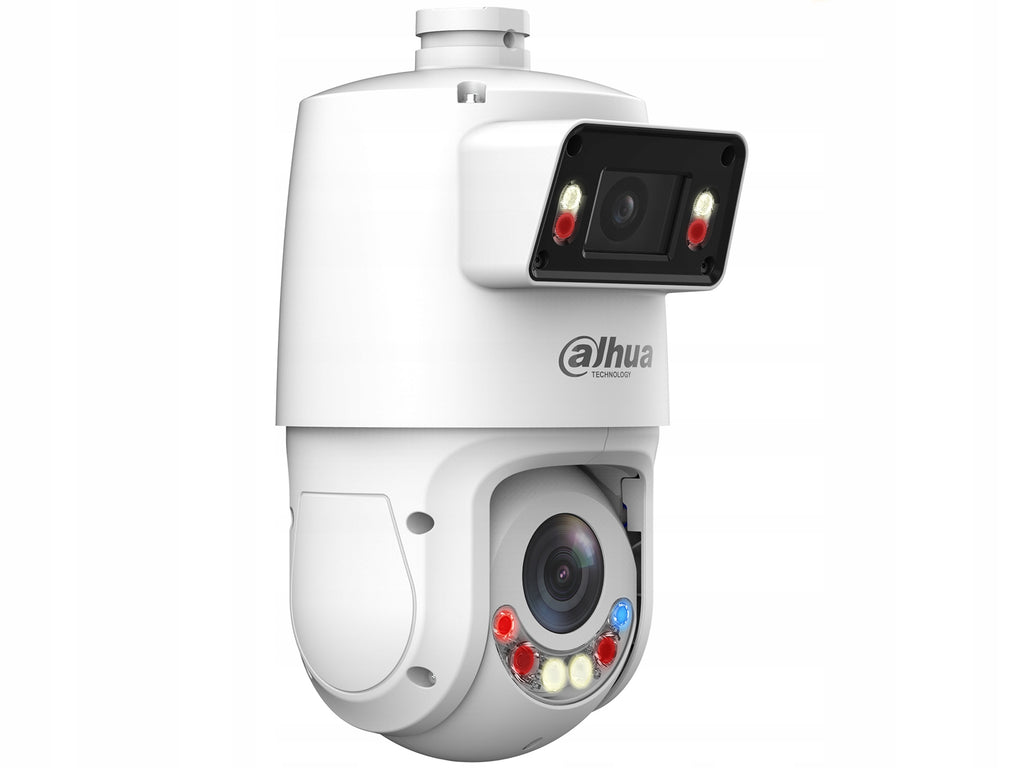

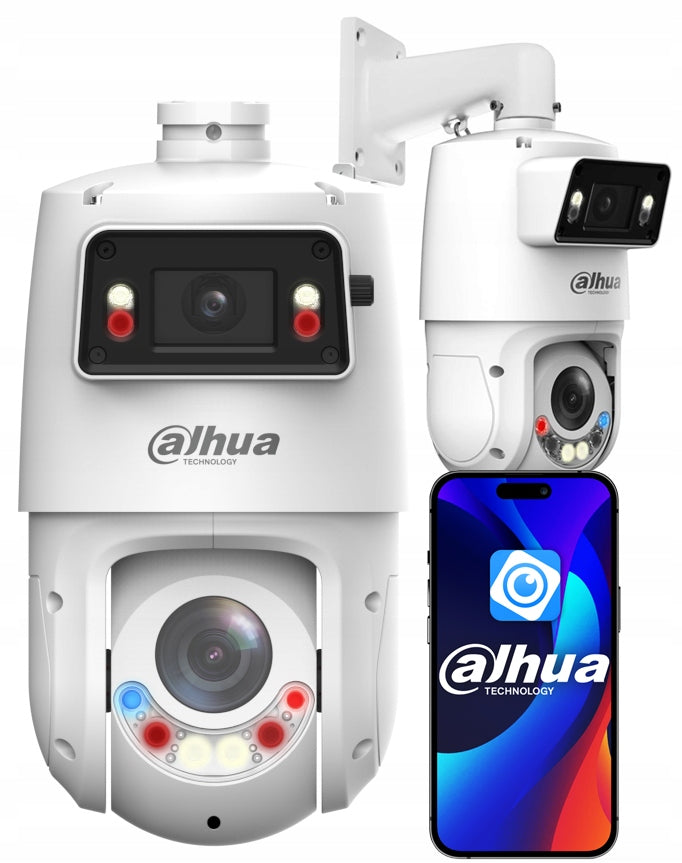

Sukiojama IP kamera Dahua SDT4E425-4F-GB-A-PV, 8MP (4MP+4MP), AI SMD

Trumpai apie prekę

Prekė: Sukiojama IP kamera Dahua SDT4E425-4F-GB-A-PV, 8MP (4MP+4MP), AI SMD. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: SDT4E425-4F-GB-A-PV1-0400

Dahua SDT4E425-4F-GB-A-PV1 is a modern network camera from the Panoramic series. Dahua SDT4E425-4F-GB-A-PV1 is equipped with two 1/2.8" CMOS sensors generating an image in 4Mp resolution - 2560x1440px each. The Dahua SDT4E425-4F-GB-A-PV1 camera has two managed cameras built in as separate lenses.

Technical parameters:

• Transducers: 2x 1/2.8" PS CMOS
• Resolutions: 2x 4Mpx (2560x1440)
• Digital Zoom: 16x
• Optical Zoom: 25x
• Sensitivity: 0.005Lux
• Lenses: 1x 5 mm–125 mm zoom, 1x 2.8mm
• IR illuminators: Yes, 1x range up to 100m, 1x range up to 30m
• White light illuminators: Yes, 1x range up to 50m, 1x range up to 30m
• Micro SD card slot: Yes, card up to 512G
• Audio Input/Output: 1/1
• Emergency Input/Output: 2/1
• Image compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Image Features: ICR, BLC, HLC, ROL, 3D NR, EIS, Defog
• Wide dynamic range: Yes, WDR 120dB
• Auto Tracking: Yes, automatic object tracking
• Selected intelligent functions: face detection, line crossing, area intrusion, object classification (human/vehicle)
• Active deterrence function: Yes
• SMD 4.0: Yes, false alarm filtering
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO), WEB browser, mobile applications
• Protection class: IP66
• Operating temperature: -40°C to +65°C
• Power supply: 12 VDC or PoE+
• Dimensions: 160.0 mm × 184.4 mm × 304.6 mm
• Weight: 3.41kg

Mobile monitoring centre

An application for smartphones and tablets giving full control over the device. Thanks to it, you will get view from the camera anywhere, receive a warning about intrusion into the property and change any functions.

High resolution 2x 4 megapixels (2K)

No detail will escape you, and the recorded material will allow you to accurately identify the intruder.

The cameras from the set are equipped with an extremely efficient IR illuminator, generating a light beam with an operating range of up to 30m and 100m. Thanks to such a powerful illuminator, the camera effectively captures all objects even in complete darkness.

Intelligent motion detection

No more false alarms! Advanced detection algorithm reduces their number, effectively distinguishing human forms from animals. Thanks to it, you will not wake up in the middle of the night with a notification of intrusion into your area... neighbor's cat.

• Sensors: Panorama: 1/2.8" CMOS; Detail: 1/2.8" CMOS
• Lens Types: Panorama: 4 MP; Detail: 4 MP
• RAM: Panorama: 4 GB; Detail: 4 GB
• ROM: Panorama: 1 GB; Detail: 1 GB
• Scanning System: Progressive
• Shutter Speed: Panorama: 1/3s-1/100000s; Detail: 1s-1/30000s
• Scan: Progressive
• Minimum Illumination: Panorama: 0.001 lux@F1.0 (Color, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on); Detail: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
• Illuminator Range: Panorama: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail: 100 m (328.08 ft) (IR) 50 m (164.04 ft) (white light)
• Illuminator Control: Panorama: Auto; Manual; Off; Detail: Zoom Prio; Auto; Manual; Off
• Focal Length: Panorama: 2.8 mm; Detail: 5 mm–125 mm
• Field of View: Panorama: H: 101°; V: 53°; D: 120°; Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°
• Position Adjustment: Panorama: H: 101°; V: 53°; D: 120°; Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°
• Video Compression: H.265; H.264B; H.264; H.264H; MJPEG (Sub Stream 1); smart H.265+; smart H.264+
• Multi-Streaming: 3 streams
• Resolution: Panorama 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Detail: 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• WDR: Yes
• White Balance: Yes
• S/N Ratio: ≥ 55 dB
• Motion Detection: Yes
• WiFi Support: No
• Onvif: Yes
• Memory Card Slot: Supports Micro SD cards up to 256GB (local recording possible)
• Alarm I/O: 1/1
• Max. Users: 20
• IP Rating: IP66
• Supported Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS
• Audio: Yes
• Audio I/O: 1/1
• Built-in Microphone: No
• Network Interface: 10/100 Base-T Ethernet (RJ-45)
• DORI Range: Detection: 2500m Observation: 987m Recognition: 500m Identification: 250 m
• Image Compression Method: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
• WEB Server: Built-in
• Max. Online Users: 20
• ONVIF: Profile S/Profile G/Profile T
• Selected Features: WDR - 120 dB - Wide Dynamic Range, 3D-DNR - 3D Digital Noise Reduction, ROI - Region of Interest (improves quality of selected image areas), BLC/HLC - Backlight Compensation / Highlight Compensation, Resolution, quality, and bitrate adjustable, Motion Detection, Configurable Privacy Zones, Mirror - Image Mirroring, SMD PLUS - Smart Motion Detection Plus (searches for objects classified as: human, motor vehicle), IVS Analysis: Intrusion, Line Crossing - human and vehicle classification, video tampering
• Power Supply: PoE (802.3af), 12 VDC, 3 A ± 10%;
• Power Consumption: Basic: 12 W Max. (Basic power consumption + illuminator + sound and light warning + PTZ operation + Heater): 25 W (12 VDC)
• Mobile Access: Port: 37777 or Cloud Access (P2P) Android: Free DMSS App iOS (iPhone): Free DMSS App
• Default IP Address: 192.168.1.108
• Default Admin Login / Password: admin / - Administrator password must be set on first use
• Color: White
• IP Rating: IP66
• Vandal-Proof: No
• Operating Temperature: -40 °C ... 65 °C
• Weight: 3.41 kg
• Dimensions: 160.0 mm × 184.4 mm × 304.6 mm (6.30" × 7.26" × 11.99") (L × W × H)
