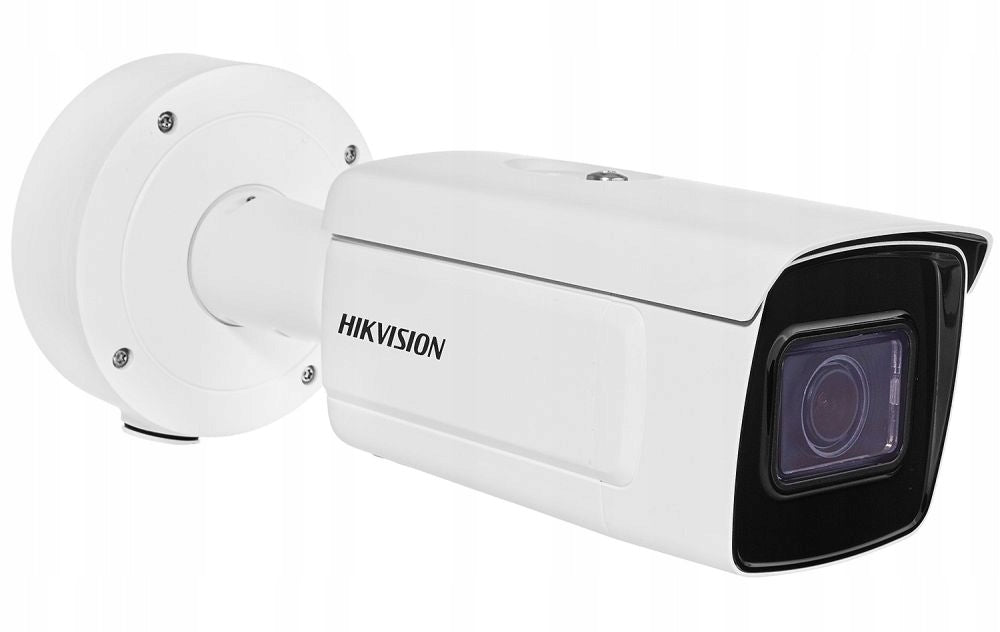

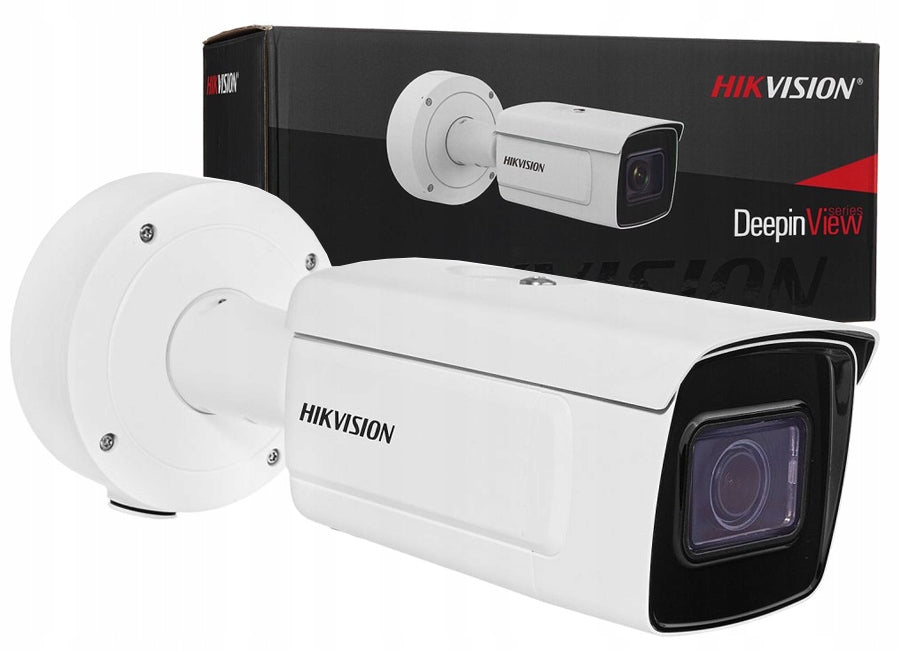

Stebėjimo IP kamera HIKVISION iDS-2CD7A46G0/P-IZHS, 4MP, 2.8–12 mm, numerių atpažinimas

Trumpai apie prekę

Prekė: Stebėjimo IP kamera HIKVISION iDS-2CD7A46G0/P-IZHS, 4MP, 2.8–12 mm, numerių atpažinimas. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: IDS-2CD7A46G0/P-IZHS

iDS-2CD7A46G0/P-IZHSY is a design network camera from the Hikvision DeepinView DarkFighter series. The camera is distinguished by the use of modern analytical functions and AI services related to the functions of image analysis in terms of traffic detection and vehicles (reading license plates). In addition, the iDS-2CD7A46G0/P-IZHSY model is equipped with a Wiegand interface, which allows integration with the pass controller and a built-in heater enabling trouble-free operation at low temperatures. An extremely attractive feature of the presented model is the use of a motozoom lens with a focal length of 2.8 - 12 mm. The lenses used are distinguished by good sensitivity parameters, a large viewing angle, detail at a very high level and the possibility of remote control from the DVR. In addition, the special Blue Glass module used in the lenses significantly reduces reflections in the image.

In the process of image capture, the device uses a CMOS transducer, which provides an image resolution of 2688 × 1520. The transducer also provides a very high image capture speed of up to 25/30 frames per second depending on the selected operating system. The camera is designed to work in all conditions, while due to increased sensitivity and DarkFighter technology, it is widely used in places where there are difficulties with sufficiently large amounts of light. Thanks to PoE technology, the installation of the camera is quick and uncomplicated, and equipping the camera with useful connectors will facilitate the connection of the camera to the alarm system, home automation or sound system. Complementing the physical features of the camera is a durable housing with a high class of resistance to weather conditions and mechanical damage. Only after this identification will the camera recognize the registration number and identify it. This process means that the system does not waste resources, is more difficult to cheat and focuses its attention only on the most important issues. The camera also reads the direction of travel, warns when there is no license plate at all and has the ability to capture small license plates, for example, on a motorcycle. The AI LPR Hikvision iDS 2CD7A46G0/P IZHSY camera is an excellent choice for public buildings, airports, stations, parking lots in guarded parking lots, residential buildings, shopping centers.

HIKVISION DeepinView ANPR DarkFighter iDS camera 2CD7A46G0 P IZHSY (C)

• 1/1.8" 4MP Progressive Scan CMOS sensor
• resolution: 2688×1520 @ 25/30 fps
• Interface: Ethernet 10/100/1000 Base-T PoE 802.3at
• compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Number of pixels: 4Mpx
• Sensitivity: 0.0005lux/F1.2 (AGC ON)
• Lens: 2.8~12mm Blue Glass
• illuminator: Smart IR LEDs (50m range
• AWB, AGC, BLC, HLC, EIS, 3D DNR, WDR 140dB, ROI, Defog
• ICR mechanical infrared filter
• built-in heater
• interfaces: RS485, Wiegand
• Audio Inputs/Outputs: 1/1 (jack 3.5)
• Emergency Inputs/Outputs: 2/2
• Supports microSD/SDHC/SDXC cards up to 256GB
• Compliance with standards: ONVIF, ISAPI, SDK, ISUP
• housing: anti-corrosion (NEMA 4X), tightness class (IP67), vandal-proof (IK10)
• 12V DC power output
• junction box included
• 5 main streams + 5 user streams
• AI functions: perimeter protection, vehicle detection, detection of multiple target types (metadata), license plate recognition (LPR), object classification (human/vehicle)
• Processing speed and resolution
• 25/30 fps for 2688×1520 (4Mpx)
• 25/30 fps for 1920×1080 (1080p)
• bitrate: 32 Kbps ~ 8 Mbps
• Image view:
• programs: iVMS-4200, Hik-Central
• Web browsers: IE, Firefox, Chrome, Safari
• Android or iOS apps: Hik-Connect, Hik-ProConnect
• Power supply: 12V DC or PoE 802.3at

• MAIN
• 1/1.8" 4MP Progressive Scan CMOS sensor
• Sensitivity
• Color: 0.0005 Lux @ (F1.2, AGC ON)
• B/W: 0.0001 Lux @ (F1.2, AGC ON)
• 0 Lux (IR LED ON)
• Shutter 1 ~ 1/100 000 s
• Day/night Infrared filter

• LENS
• focal length
• 2.8 ~ 12 mm (motozoom; autofocus)
• Aperture
• F1.2 ~ F2.5
• Focus Automatic, semi-automatic, manual
• Viewing angle
• horizontal: 114,5° ~ 41,8°, vertical: 59,3° ~ 23,6°, diagonal: 141,1° ~ 48°
• Blue glass module used to reduce reflections (glow)
• Aperture P-Iris Yes

• Detection 60m~149m
• Observation 23,8 m ~ 59,1 m
• Diagnosis
• 12 m ~ 29,8 m
• Identification
• 6 m ~ 14,9 m

• ILLUMINATOR
• Reception
• 50 m
• IR illuminator type
• Wavelength 850 nm

• VIDEO
• Maximum resolution 4.0 Mpx, 1920×1080 pixels
• Processing speed and resolution (main stream)
• 50 Hz: 25 fps @ 2688×1520 (4Mpx) / 2560×1440 (4Mpx) / 1920×1080 (2Mpx) / 1280×720 (1Mpx)
• 60 Hz: 30 fps @ 2688×1520 (4Mpx) / 2560×1440 (4Mpx) / 1920×1080 (2Mpx) / 1280×720 (1Mpx)
• Processing speed and resolution (auxiliary stream)
• 50 Hz: 25 fps @ 704×576 / 640×480
• 60 Hz: 30 fps @ 704×480 / 640×480
• Processing speed and resolution (third stream)
• 50 Hz: 25 fps @ 1920×1080 (2Mpx) / 1280×720 (1Mpx) / 704×576 / 640×480
• 60 Hz: 30 fps @ 1920×1080 (2Mpx) / 1280×720 (1Mpx) / 704×480 / 640×480
• Processing speed and resolution (fourth stream)
• 50 Hz: 25 fps @ 1920×1080 (2Mpx) / 1280×720 (1Mpx) / 704×576 / 640×480
• 60 Hz: 30 fps @ 1920×1080 (2Mpx) / 1280×720 (1Mpx) / 704×480 / 640×480
• Processing speed and resolution (fifth stream)
• 50 Hz: 25 fps @ 704×576 / 640×480
• 60 Hz: 30 fps @ 704×480 / 640×480
• Compression
• Main stream: H.265 / H.264 / H.265+ / H.264+
• Other streams: H.265 / H.264 / MJPEG
• Type H.264 Baseline Profile / Main Profile / High Profile
• Type H.265 Main Profile
• Bitrate 32Kbps ~ 8Mbps
• Bitrate CBR/VBR control
• Scalable video encoding (SVC) Yes, for H.264 and H.265
• ROI 4 fixed area for each stream
• Trimming the target Yes

• IMAGE
• Day/night mode Day/night/auto/schedule/triggered by alarm input/triggered by video
• Wide Dynamic Range (WDR) 140 dB
• SNR ≥52 dB
• BLC, HLC, 3D DNR, Defog, EIS Image Enhancement Features
• Image Parameter Switch Yes
• Yes, the logo in the format 128×128 24bit bmp

• NETWORK
• Live preview Up to 20 channels simultaneously
• ONVIF compliant (S profile, G profile, T profile), ISAPI, SDK, ISUP
• Supported network protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Users Up to 32 users: 3 levels of access: administrator, operator, user
• Archiving microSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), ANR
• iVMS-4200 Remote Operation, Hik-Connect, Hik-Central
• Plug-in required in live preview for: IE8+
• No plug-in required in live preview for: Chrome 57.0+, Firefox 52.0+, Safari 11+
• Local service: Chrome 57.0+, Firefox 52.0+

• Basic Motion Detection, Tamper Alarm, Exception (Network Disconnection, IP Address Conflict, Illegal Login, Unusual Reset, Full Hard Drive, Hard Drive Error), Scene Change Detection, Vibration Detection

• Motion detection Yes (classification of people and vehicles)
• Filtering false alarms Filtering analysis alarms based on object recognition (human, vehicle)
• Perimeter protection (perimeter) Line crossing detection, intrusion detection, area entry, area exit (human and vehicle classification)
• Traffic and vehicle detection
• List of authorized and unauthorized license plates: up to 10 000 records
• Capture vehicles without license plates
• Support motorcycle license plate recognition (only in checkpoint scenario)
• Support detection of vehicle attributes, including vehicle type, color, brand, etc. (City Street mode is recommended)
• Notes* Only one AI function with Deep Learning algorithm (traffic and vehicle detection or perimeter protection) Alarm filtering and AI analysis can be enabled at a time, not supported with ROI enabled, H265+ or H.264+ compression set, and when motion detection is enabled

• METADATA
• Metadata License plate number, vehicle type, vehicle color, vehicle make, direction of movement, library name, country

• INTERFACE
• Network 1x RJ-45 10/100/1000
• Video 1x CVBS / 1V pp, BNC, 75Ω
• Audio 1x input, 1x output (3,5 mm)
• Alarm 2x input, 2x output (max. 24V DC, 1A)
• Memory 1x microSD/ microSDHC/ microSDXC card slot up to 256GB
• RS485 1x RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Wiegand 1x connector on cable (26bit card ID, SHA-1 26bit, Hik 34bit)
• Power output 1x 12 V DC connector, max. 100 mA (supported by all power supply types)
• Power supply 1x terminal connector on the cable (reverse polarity protection)
• Reset 1x button

• OTHER
• Languages 33 languages (see datasheet)
• Built-in heater Yes
• Protection class IP67 (IEC 60529-2013)
• Mechanical resistance IK10 (IEC 62262:2002)
• Power supply
• 12 V DC (±20%)
• PoE (802.3at, class 4)
• Power consumption
• DC: max. 14,28 IN (1,19 A, 12 V DC)
• PoE: mask. 16,8 W (0,396 A ~ 0,295 A, 802.3at @ 42,5 V ~ 57 V)
• Humidity < 95% (non-condensing)
• Operating temperature -40°C ~ +60°C
• Material Aluminum alloy
• Weight 1950 g
• Dimensions (D. /length ) Φ140×351 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	3.07 kg
Parametry	EAN (GTIN)	5904815695084
Parametry	Manufacturer code	IDS-2CD7A46G0/P-IZHS
Parametry	Brand	Hikvision
Parametry	Model	IDS-2CD7A46G0/P-IZHS
Parametry	Packaging status	original
Parametry	Batteries included	no
