Starterio lygintuvas INVER STARTER 641, 600A, 12/24V

Trumpai apie prekę

Prekė: Starterio lygintuvas INVER STARTER 641, 600A, 12/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: I-STARTER641V2

Starting rectifier 600A INVER STARTER 641 12 / 24V

Technical parameters

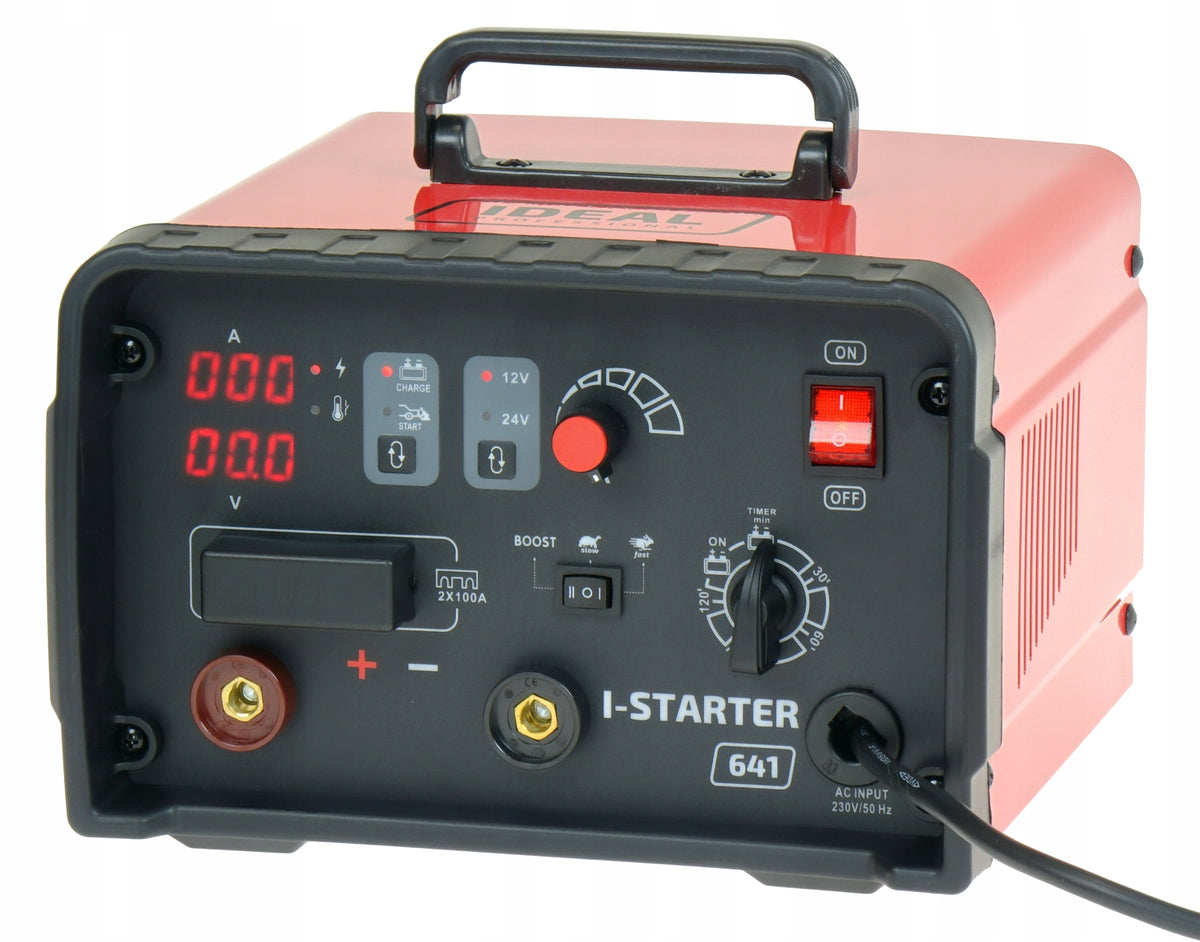

I-STARTER 641 is an inverter rectifier for charging 12 and 24 volt acid batteries, having the function of starting cars with gasoline and diesel engines.

The rectifier has three charging stages:

• Level 1 (slow)
• Level 2 (fast)
• Level 3 (boost)

The device is equipped with digital current and charging voltage meters.

Stepless adjustment of the charging current allows even more accurate positioning of the rectifier.

The rectifier does not have the function of automatic completion of the charging process, therefore it requires user supervision and turning off the device after charging.

Physical parameters

The device has a fan cooling system which definitely increases its efficiency.

The device is equipped with protection against short-circuit poles, overload and reverse polarity, which increases its reliability.

Power supply parameters

Single-phase power supply.

The device is equipped with a power plug.

Equipment

The device is equipped with charging and starting cables, and a plate fuse.

Overload protection in the device 2 x 100A

Rated power supply voltage 230V-1ph 50/60Hz

Power (charging / starting) 2 / 12 kW

Degree of protection IP 20

Weight 5 kg

Overall dimensions L x W x H 290x290x200

Charging voltage 12 / 24 V

Charging Current 55A(12V) / 60A(24V)

Starting current 600 A

Degrees of charging current adjustment Gradually

Rated battery capacity Ah 15h (min/max) 20 - 1000 Ah

Rated starting current EN 60335-2-29 500 A

Inverter rectifier for charging 12 and 24 volt acid batteries with start-up function. Power supply 230V, charging voltage 12/24V, charging current 55A(12V) 60A(24V), starting current 600A.
