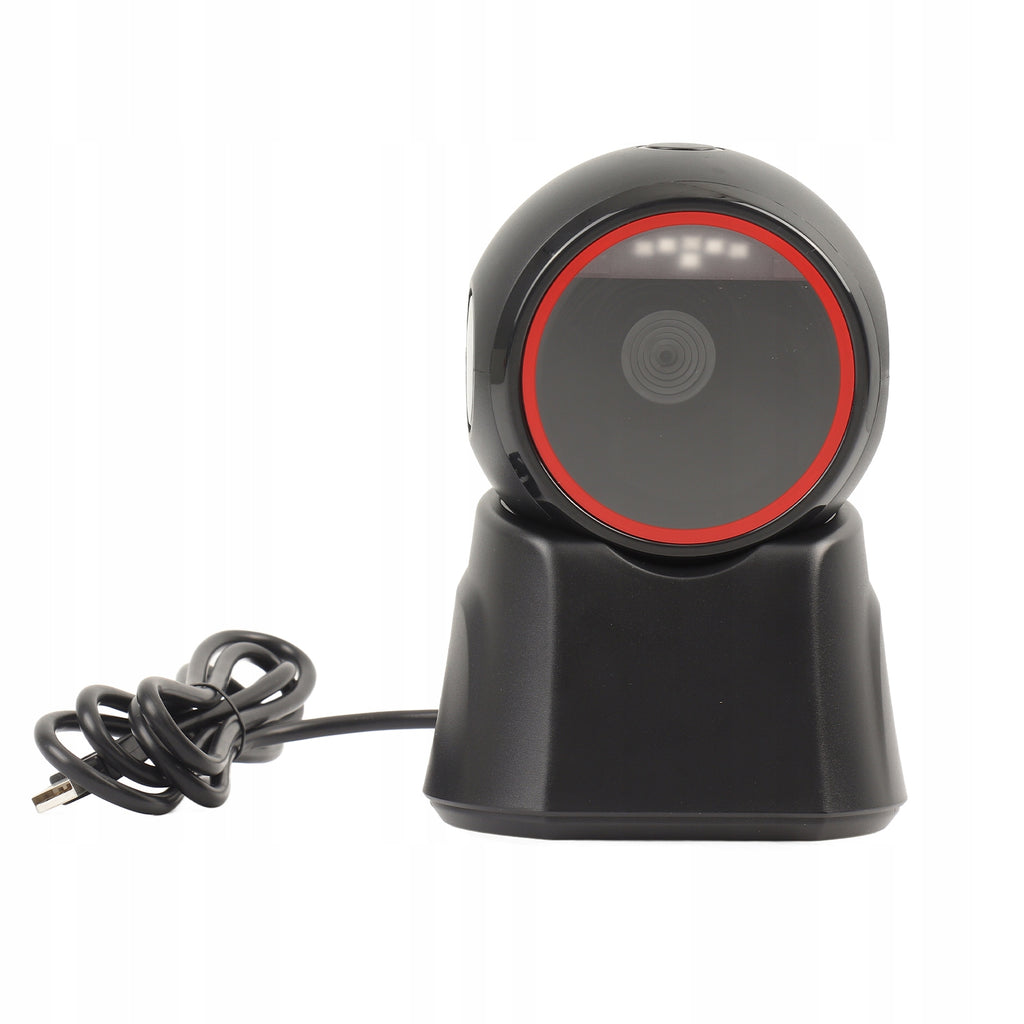

Stalinis X11-1000A 2D 1D QR kodo skaitytuvas

Trumpai apie prekę

Prekė: Stalinis X11-1000A 2D 1D QR kodo skaitytuvas. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250827031236

Function:

1. Global Exposure Technology: This barcode scanner is equipped with an advanced 300 000-pixel global exposure scanning engine, capturing the entire barcode framework simultaneously, ensuring fast and precise scanning.

2. Ultra-fast scanning capabilities: Designed for high performance, the scanning platform offers a scanning speed of 120 frames per second. This fast scanning speed is ideal for high-bandwidth environments.

3. Advanced decoding capabilities: The scanning platform is capable of decoding a wide spectrum of 1D and 2D barcodes, including QR code, data matrix, PDF417 and more. Supports mobile screen codes. Suitable for a variety of scanning applications.

4. Wide scanning angles: designed with an expansive scanning angle range, with ± 60° left, ± 54° reverse and full 360° rotation capability, allowing you to scan barcode codes from multiple orientations without the need for accurate alignment.

5. Wide industry compatibility: The 1D 2D scanner is suitable for a range of industries, including supermarkets, shopping malls, beauty and retail stores. It is compatible with various cash systems and registers.

Specification:

• Scanning Mode: Automatic/Continuous Scanning
• Interface Type: USB Type-B
• Indicator: buzzer, LED light
• Setting method: Key setting, manual scanning of setting codes
• Scanning Type: Global CMOS Exposure
• Resolution: 640*480
• Light Source: 617NM red light LED
• Scanning angle: ± 60°, ± 54°, 360° (right left, front, rotation)
• Scanning speed: 120 frames/second
• Field of view: 48°(h) x 30°(v)
• Printing contrast: minimum 20%
• Types of decoding:
• 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, interspersed 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS-LTD, RSS-EXP, Plessey
• 2D: QR code, data matrix (DM), PDF417, Aztec code, support mobile phone screen reading code
• Minimum resolution: 1d 5mil, 2d 7mil
• Field Depth:
• QR (20mil) - 0 ~ 230 mm
• QR Payment Code (Mobile Code) - 0~290mm
• Data matrix (10 miles) - 0 ~ 45 mm
• PDF 417 (7mil) - 0 ~ 130 mm
• EAN -13 (13MIL) - 0 ~ 270 mm
• Code 39 (8mil) - 0 ~ 180 mm
• Code 128 (7mil) - 0 ~ 140 mm
• Input Voltage: DC 5V ± 10%
• Current: Operation: 240MA; Standby: 190MA
• Temperature: 0°C-50°C (working); -20 ℃ ~+70 ℃ (storage)
• Humidity: 5%-95% non-condensing
• Shell Material: ABS+PC
• Color: Black
• Cable length: straight line 1,35 m
• Item Size: 156*112*103 mm/6.14*4,41*4,05 inch
• Item Weight: 270 g/9,52 oz
• Package Size: 170*115*115 mm/6,69*4,52*4,52 inch
• Package Weight: 353G/12.45 oz

List of packages:

• 1*1D 2D Barcode Scanner
• 1 * User Manual (English)
