Servo variklių valdymo modulis Pico-Servo-Driver

Trumpai apie prekę

Prekė: Servo variklių valdymo modulis Pico-Servo-Driver. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 19767

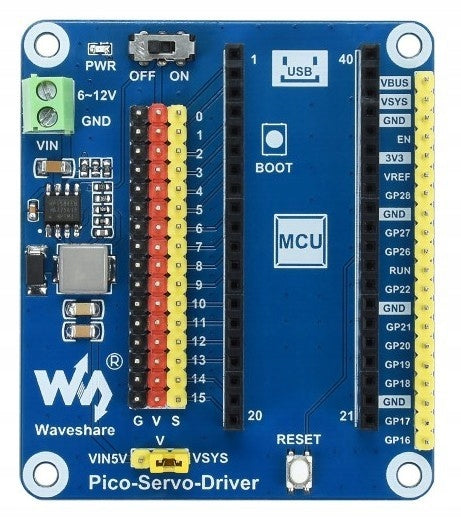

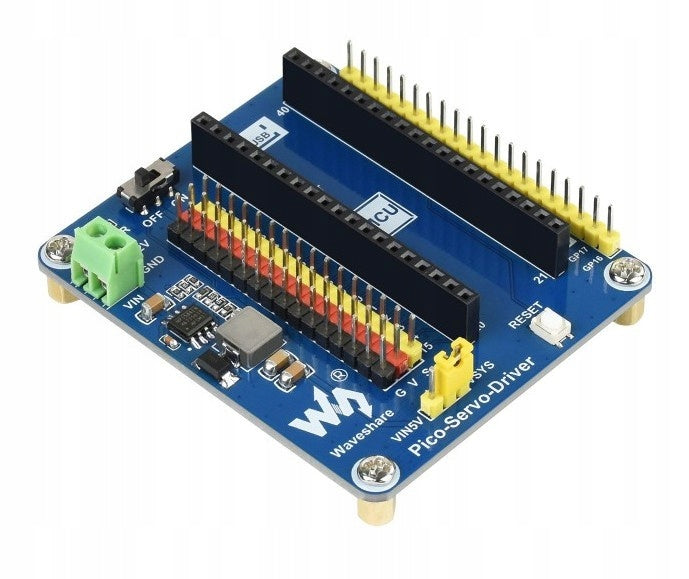

Pico-Servo-Driver - servo control module for Raspberry Pi Pico

Description

Servo control module designed to work with Raspberry Pi Pico. It uses the PWM outputs of the microcontroller and has 16 3-pin connectors compatible with the interface used in the servos. The module is equipped with a connector with other Pico pins allowing you to connect additional elements. On the board there is a 5 V converter with a capacity of 3 A. Servos can be powered by a USB connector connecting to the Raspberry Pi Pico or by a screw connector with a voltage from 6 to 12 V. It will work in projects using a large number of modeling servos, e.g. when building a walking robot or manipulator. Full documentation with examples is available on the product wiki page.

Attention!

The kit does not include Raspberry Pi Pico. They must be purchased separately.

Properties

• 16 channels
• Resolution: 16 bits
• Connectors compatible with servo interface
• Voltage converter 5 V 3 A
• Mounting holes 3 mm
• Possibility of supplying power from an external source with voltage from 6 to 12 V
• Power switch
• Jumper for selecting a power source
• Servo power supply: 5 V
• Power supply of 3,3 V logic part
• Dimensions: 65 x 56 mm
