RTC baterija Raspberry Pi 5, ML-2020 laikrodžio baterija

Trumpai apie prekę

Prekė: RTC baterija Raspberry Pi 5, ML-2020 laikrodžio baterija. Kategorija: Priedai.

• Gamintojas: Raspberry pi
• Modelis: SC1163

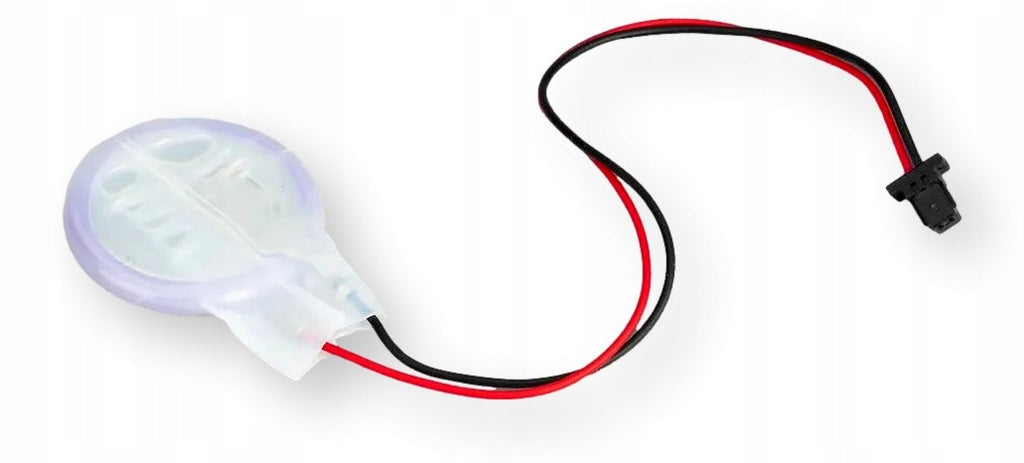

RTC battery for Raspberry Pi 5

RTC battery for Raspberry Pi 5 is used to maintain the real-time clock after disconnecting the main power supply. Thanks to it, Raspberry Pi 5 can maintain the correct system time without constant access to the network or an external source of synchronization.

The battery has a compatible connector for a dedicated BAT socket on the Raspberry Pi 5 board. It is a practical accessory especially useful in automation, IoT, data recording and periodic work projects.

The most important features

• Dedicated RTC battery for Raspberry Pi 5
• Maintains real-time clock when power is disconnected
• Equipped with BAT socket compatible connector
• Based on Panasonic ML-2020 Lithium Manganese Battery
• Useful for IoT projects, automation and periodic tasks
• Supports Raspberry Pi 5 wake-up function with programmed time

Why it is worth

Raspberry Pi 5 has a built-in RTC clock, but an additional power source is needed to operate it after disconnecting the power supply. This battery allows you to maintain system time and take advantage of the features associated with low power mode and waking up the device.

This is a small element, but in projects that work independently it makes a big difference - especially where Raspberry Pi does not always have access to the Internet.

Application

• RTC clock support in Raspberry Pi 5
• IoT and smart home projects
• Data loggers
• Monitoring and automation systems
• Periodic tasks, e.g. time-lapse photos
• Projects working without a permanent internet connection

Technical parameters

• Type: RTC battery / maintenance battery
• Compatibility: Raspberry Pi 5
• Cell: Panasonic ML-2020
• Technology: Lithium-manganese
• Nominal capacity: 45 mAh
• Connection: compatible with BAT/J5 socket on Raspberry Pi 5

Assembly

The battery should be connected to the BAT / J5 connector on the Raspberry Pi 5 board. Installation should only be done with the power supply disconnected. When connected, the Raspberry Pi 5 can use RTC clock backup when the main power is disconnected.
