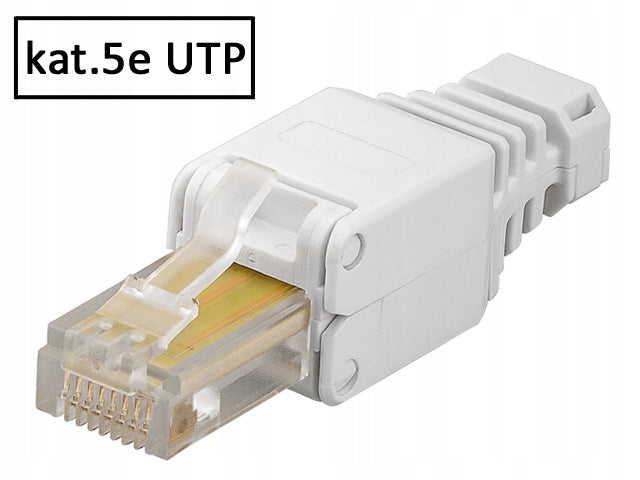

RJ45 UTP Cat.5E jungtis, AWG23-26 laidams, be įrankių

Trumpai apie prekę

Prekė: RJ45 UTP Cat.5E jungtis, AWG23-26 laidams, be įrankių. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Stratos
• Modelis: 47095

Catalog No: 47095

The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/47095.htm

Plug 8P8C (8 Position 8 Contact) also called RJ45 is an eight-pin connector used in telecommunications installations and computer networks. The plug has eight pins, which are connected to the contacts-knives driven by insulation into the wires of the earned wire during assembly.

The offered plug thanks to its design allows tool-free installation on UTP twisted pair (unshielded) with wire conductors or cable thickness (wire with insulation) 0.9~1.3mm, so virtually every available on the market. The plug meets the parameters of cat.5e (class D, band 100MHz) and is designed for installation according to the T568A or T568B standard (properly printed color codes facilitate the arrangement of wires in the plug). Quick installation is possible without specialized tools - the wires are driven into the contacts after they are laid in the guides, folded and clamped the housing - profiling on the housing wings press and drive the contact knives into the cable wires when folding the plug.

The housing also acts as a "holder" of the cable, special tabs are pressed into the jacket of the cable and immobilize it preventing the cable from being pulled out of the plug. The housing is designed for cables with a diameter of 5~6mm, with larger diameters it is necessary to saw the hole in the housing.

• Plug type: RJ45/8P8C cat 5e, class D, band 100MHz, UTP (unshielded) to round cable (computer twisted pair)
• Material: plastic housing, gold-plated contacts on a phosphor bronze backing
• Twisted pair conductor type: wire/link AWG23~26 (Ø conductors 0.4~0.6mm, Ø conductors in insulation 0.9~1.3mm)
• Dimensions (length, width, height): 53/15/15mm
• Diameter of the cable: 5~6mm
• Weight 1 plug: approx. 6g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
