Relės modulis Raspberry Pi valdyklėms

Trumpai apie prekę

Prekė: Relės modulis Raspberry Pi valdyklėms. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 11638

Product code: 11638

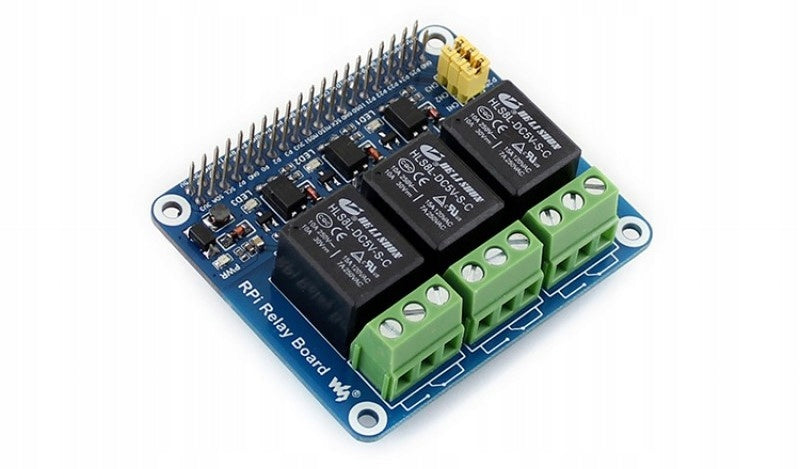

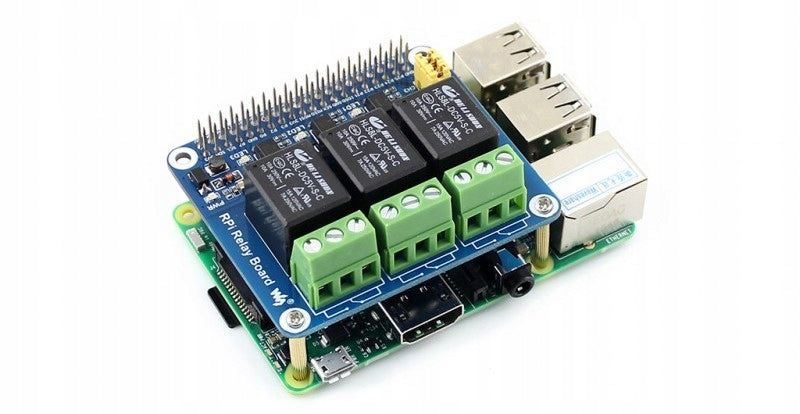

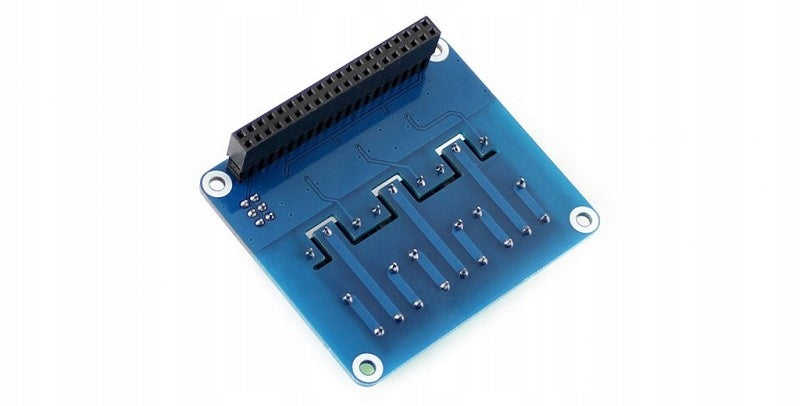

The overlay matched to GPIO Raspberry Pi connectors in versions 3B, 2B, B+ and A+, contains three relays with parameters of 250 V / 10 A. The board has a screw connector. Digital control, provided via GPIO Raspberry Pi pins.

Specification:

• Compatible with Raspberry Pi A+/B+/2B/3B
• Relays with permissible load: 250VAC/5A, 30VDC/5A
• RPI optical isolation from relays (transeptors)
• Indication of relay operating states by LEDs
• Possibility to configure the assignment of RPI pins that will be used to control relays
• Available software examples for wiringPi, WebioPi, shell, python, bcm2835

1. GPIO connector for connecting with Raspberry Pi
2. Screw connectors, relay contacts - for connecting a controlled device
3. Relays
4. Optocouplers PC817
5. LEDs informing about the operating status of relays:

• Glows: NC is open and NO is closed
• Does not light: NC is closed and NO is open

6. LED informing about the power supply of the module

7. Control jumpers:

• Compact: control of relays by default inputs and outputs from the sample code
• Open: control of relays by inputs and outputs through wires

Included:

1. RPi Relay Board x1
2. RPi screws pack (2pcs) x 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	11638
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5906852311279
Parametry	Packaging status	original
Parametry	Batteries included	no
