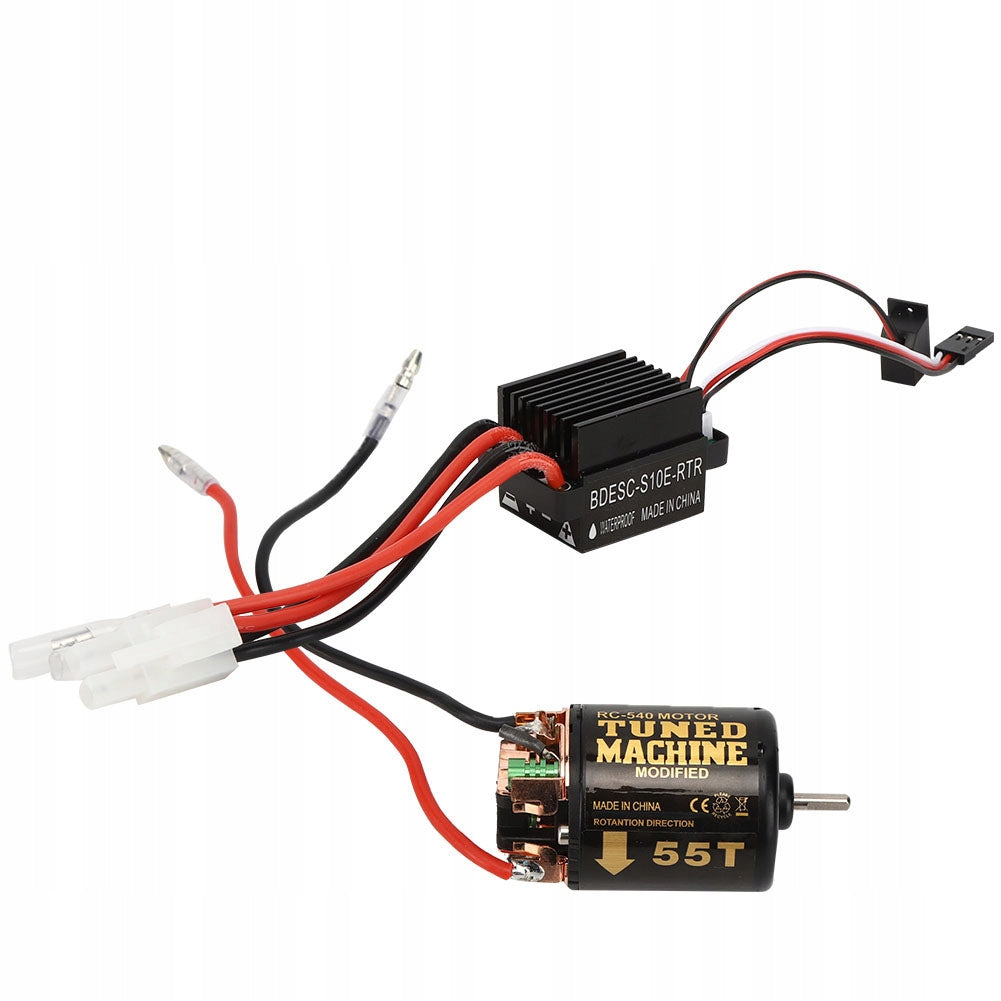

RC automobilio variklis 540 su 320A ESC valdikliu

Trumpai apie prekę

Prekė: RC automobilio variklis 540 su 320A ESC valdikliu. Kategorija: Elektrinis.

• Gamintojas: no brand
• Modelis: Yocheved2720200019613

Technical data:

Condition: 100% new

Item Type: RC Accessories

Material: metal and plastic

Color: Black

Engine:

Speed: 35T, 45T, 55T (optional)< Length: approx. 53mm / 2.1 inch

Diameter: approx. 36mm / 1.4 inch

Shaft length: approx. 12 mm / 0,5 inch Shaft diameter: approx. 3.17mm / 0.1in

Operating voltage: 7,2 – 7,4 V

Maximum voltage: 12 V

ESC:

Constant Current: 60 A

Explosion current: 320 A

Power Supply: 2~3s Lithium Battery, 5~9S Nickel Hydrogen Battery

BEC: 5V/2A

Product Size: Approx. 43 x 29 x 27 mm / 1,7 x 1,1 x 1,1 inches (without cable)

Current without load: 1,4A

Continuous output current: 320a (forward), 160a (rear), 270a (braking)< br >7,2 V Voltage Speed without load:

35T: 12000 rpm /min

45T: 10000 rpm /min

55T: 8000 rpm /min

List of packages:

1 x Brush Motor

1 x 320 ESC brushes

Characteristics:

1. Precise style can achieve maximum energy conversion. The rotor is precisely balanced, fluidity improves reliability and maximum speeds. 2. High purity copper winding maximizes efficiency, high strength magnets ensure stable operation of the brush motor. 3. Excellent torques and long service life, direct welding wiring conductor, providing flexible welding options. 4.540 brush motor, high torques are used to drift climbing car and large foot car, strong magnetic force of bidirectional bearing, small heat generation and high power. 5. The carbon brush can also be replaced, as the external carbon brush can last a long time.
