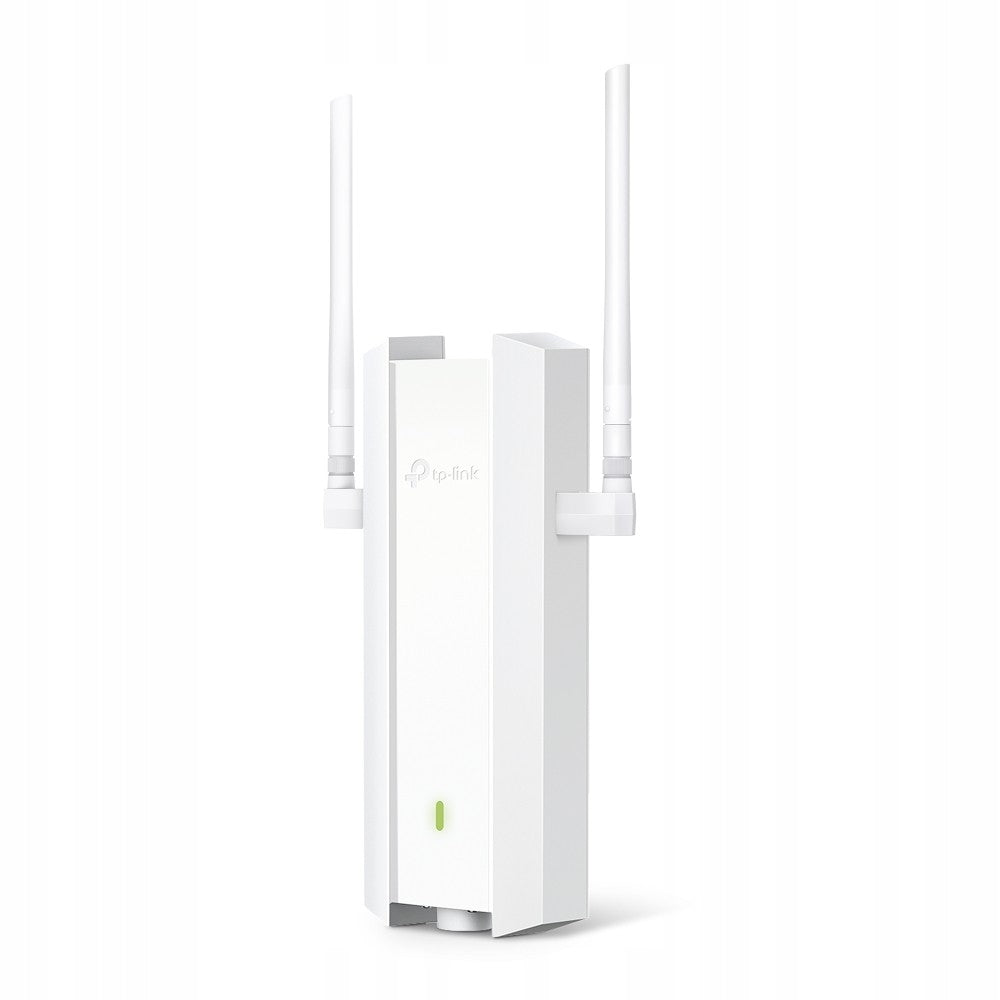

Prieigos taškas TP-Link EAP625-Outdoor HD Wi-Fi 6 (802.11ax)

Trumpai apie prekę

Prekė: Prieigos taškas TP-Link EAP625-Outdoor HD Wi-Fi 6 (802.11ax). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP625-Outdoor HD
• Plotis: 281 mm
• Aukštis: 57 mm

Wireless, internal/external access point, AX1800 standard

P/N : EAP625-Outdoor HD

Key Features :

• WiFi 6 with speeds up to 1,8Gb/s: 574 Mbps in the 2,4GHz band + 1201 Mbps in the 5 GHz band*1
• Support WiFi 6:1024-QAM, OFDMA etc*2
• Possibility to connect over 1,000 clients*3
• Large range thanks to high-power amplifier and 2 detachable antennas
• The housing of the device with tightness class IP67 will work in outdoor conditions
• Advanced features: Centralized management, Omada Mesh and Smooth roaming*4
• Supports 802.3at PoE and Passive PoE (adapter not included)

High Performance WiFi 6

With the latest Wi-Fi 6 technologies such as MU-MIMO and 1024 QAM, the EAP625-Outdoor HD access point delivers speeds of up to 1,8 Gbps.

Long range starts with antennas

Two detachable external 5GHz and 2,4GHz wireless band antennas provide optimal coverage and great flexibility for your network.

Ideal for demanding scenarios

OFDMA and MU-MIMO enable simultaneous connections to multiple client devices in large, open spaces.

With its IP67-rated housing, the EAP625-Outdoor HD can handle even the toughest environments.

1. The wireless network speeds given are maximum values, in accordance with the IEEE 802.11 standard specification. Actual data transfer rate and network coverage may vary depending on 1) environmental factors,such as the building materials used, the presence of certain objects or obstacles,2) network conditions, such as local interference,traffic volume, location of the device, size of the network,presence of other wireless networks and 3) limitations on the part of the customer,such as rated performance, current location,quality of connections and construction and condition of the customer.

2. Using Wi-Fi 6 (802.11ax) technology and features such as OFDMA, 1024-QAM and many more requires customers to support these features.

3. Actual capacity depends on the wireless environment and customer traffic. It is usually smaller than the maximum number of client connections.

4. Omada Mesh, Smooth Roaming, Cloud Access and Portal Login require the use of the Omada SDN Controller.

Refer to the Omada SDN Controller User Guides for information on configuration methods.

5. Dimensional information relates to the product and handle. They do not include detachable external antennas.

6. The maximum Wi-Fi range is determined based on field tests. The given number refers to the maximum distance at which devices can connect to the EAP625-Outdoor HD. Actual transmission range and recommended range may vary depending on environmental conditions, receiving devices, etc.

HARDWARE FEATURES

Ports

1 Gigabit Ethernet port

Buttons

Reset

Power supply

• 802.3at PoE

• 48V Passive PoE

Dimensions (S x G x W)

280,4 × 182,2 × 56,9 mm*5

(11,0 x 7,2 x 2,2 inches)*5

Antenna type

2 external, detachable, dual-band antennas

• 2,4 GHz: 3,0 dBi

• 5 GHz: 5,0 dBi

Bluetooth

Yes

Weather resistant housing

IP67

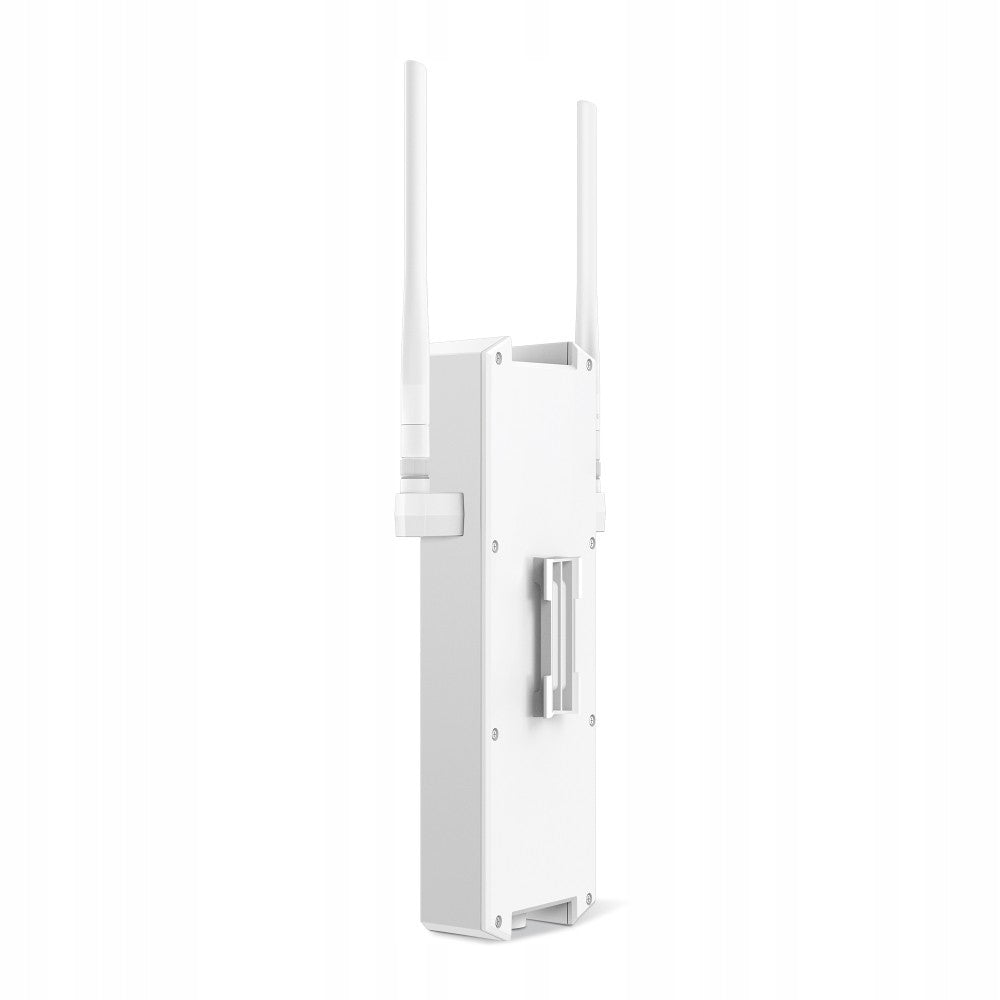

Assembly

Pole or wall mounting (mounting hardware included)

WIRELESS TRANSMISSION PROPERTIES

Number of simultaneous clients

1,020+3

Wireless standards

IEEE 802.11 a/b/g/n/ac/ax

Frequency of work

5 GHz and 2,4 GHz

• 5 GHz: up to 1201 Mbps

• 2,4 GHz: up to 574 Mbps

Wireless transmission functions

• Mesh*4

• Smooth Roaming*4

• Automatic channel selection

• Bandwidth load balancing

• Band control

• Beamforming

• Airtime Fairness

• Multi-SSID: 16 (8 for each band)

• Wireless network statistics

• Wireless network scheduler

• Restart schedule

• RADIUS Accounting

• Static/Dynamic IP address

Security of wireless transmission

• VLAN

• Access control

• Detection of unauthorized APs

• Maximum number of MAC Filtrations: 4,000

• Wireless client isolation

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption

• Support 802.1X

Power of transmission

• CE: < 20 dBm (2,4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)

MANAGEMENT

Omada application

Yes

Copy and restore settings

Yes

Update of the software via the Web

Yes

NTP

Yes

Central management

• Omada hardware controller (OC300)

• Omada hardware controller (OC200)

• Omada software controller

• Cloud-based Omada Controller

Access to the cloud

Yes. Requires OC300 Controller, OC200 Controller, Cloud-Based Omada Controller or Omada Software Controller

Yes

LED switch

Yes

Access control by MAC addresses

Yes

SNMP

v1, v2c, v3

SSH

Yes

Management by browser

Yes

OTHER

Certificates

CE, FCC, RoHS

Content of the package

EAP625-Outdoor HD

• 2 detachable antennas

• Installation instructions

• Mounting kit

• Sealing kit

Working environment

• Permissible operating temperature: -30℃–70℃ (-22℉–158℉)

• Permissible storage temperature: -40℃–70℃ (-40℉–158℉)

• Permissible air humidity: 10%–90%, non-condensing

• Permissible storage humidity: 5%–90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Management	app
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	external removable
Parametry	Width	281 mm
Parametry	Height	57 mm
Parametry	Depth	183 mm
Parametry	Product weight with unit packaging	0.15 kg
Parametry	EAN (GTIN)	4895252506327
Parametry	Manufacturer code	EAP625-Outdoor HD
Parametry	Model	EAP625-Outdoor HD
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11ax (Wi-Fi 6)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
Parametry	Additional features	Polish menu,hotel mode
