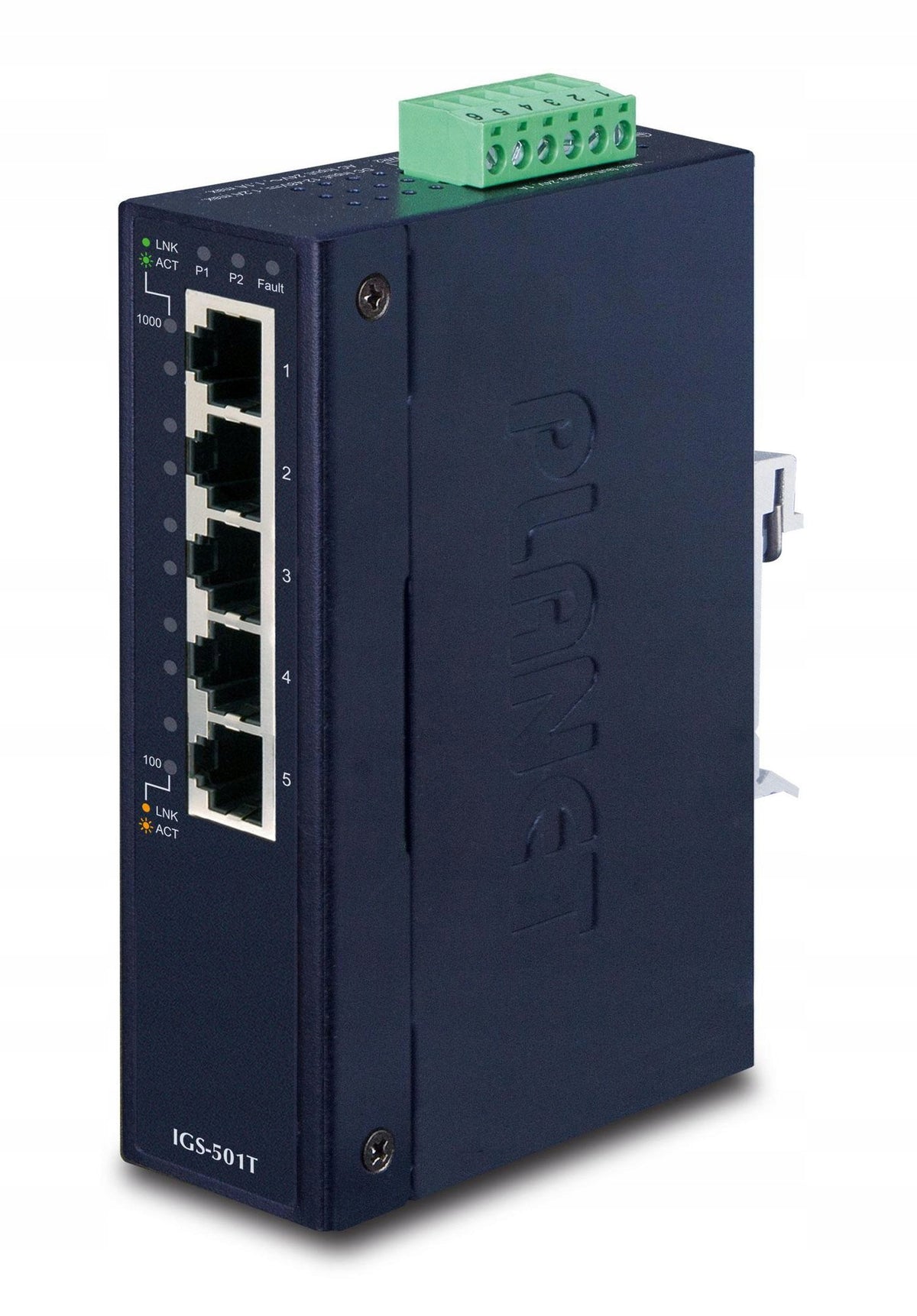

Pramoninis tinklo jungiklis Planet IGS-501T

Trumpai apie prekę

Prekė: Pramoninis tinklo jungiklis Planet IGS-501T. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: IGS-501T

Technical parameters:

• Manufacturer: PLANET
• Model: IGS-501T
• Length: 135 mm
• Network link speed: 1 Gbps
• Width: 87 mm
• Height: 32 mm
• Recommended ambient temperature: -40 - 75 °C
• Power supply: DC
• Recommended ambient humidity: 5 - 90 %
• Power: 5.28 W
• Software: No
• Material: Metal
• Housing type: Din rail
• Working temperature: -40 - 75 °C
• Wired standards: IEEE 802.1p IEEE 802.3ab 1000Base-T IEEE 802.3az Energy Efficient Ethernet IEEE 802.3u 100Base-TX IEEE 802.3x (Flow-Control)
• Total PoE budget: 0 W
• Capacity: 10 Gbps
• Switch type: Unmanaged
• Number of ports: LAN - 1GB X5
• Buffer: 1 Mbit
• Management: Unmanaged
• Cooling: Passive
• Total number of ports: 5
• Destination: Industrial
• Protection class: IP30
• MAC Address Table: 2K
• Working signal: LED
• Number of POE ports: 0
• Weight: 0.49 kg
• Number of screws required: 4
• Maximum network link speed: 1 Gbps
• Type of network link: Ethernet
• Number of Ethernet ports: 5
• Port Specification: 5x 1000BASE-T
• Energy consumption: 5.28 W
• Power Requirements: 12~48V DC 24V AC
• PoE support: No

Description:

PLANET industrial Ethernet switches are rugged devices designed to operate in electrically noisy and harsh environmental conditions. The switch is highly resistant to electromagnetic interference and large electrical surges typical of environments such as factories and control rooms. The ability to operate in temperatures ranging from -40 to +75 degrees C, combined with certifications for use in hazardous locations (Class 1 Division 2), allows the switch to be placed virtually anywhere. The switch is housed in a compact, aluminum IP-30 housing that allows for both DIN and panel mounting to ensure the best use of space in standardized cabinets. The switch features a built-in power supply with a wide voltage range (12 to 48V DC) for worldwide operation or dual parallel power supplies to prevent power failure, reverse power connection protection, and 24V DC and 48V DC inputs, making it suitable for applications requiring dual power inputs or fail-safe solutions.

Product class (switches): Unmanaged network switch

Switch class: Unmanaged

Application (switches): Home and small office (up to 16 ports)

switching systems: L2

Network architecture (switches): GigabitEthernet

Number of ports 10/100/1000 MBps: 5

Forward mode: Store-and-forward

Capacity (switches): 10 GB/s

Capacity (Gbps switches): 10 GB/s

Transmission speed (Mpps): 7.4 Mpps

Package buffer: 1 MB

Mac address table size: 2000

Support Jumbo frames: Yes

Jumbo frame size: 9 KB

Supported protocols and standards: IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x full-duplex flow control

Housing type: Rack (Switche/UPS)

Power supply (switches): Internal

Power consumption: 4.8 W

Power supply: 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support

Dimensions: 135 x 87 x 32 mm

Weight: 498 g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Product weight with unit packaging	0.64 kg
Parametry	Number of ports	5
Parametry	Number of LAN (RJ-45) ports	4
Parametry	EAN (GTIN)	4711213687334
Parametry	Manufacturer code	IGS-501T
Parametry	Certificates of conformity	CE
