Pramoninis maršrutizatorius Teltonika RUTM10, 4 LAN jungtys, Mesh

Trumpai apie prekę

Prekė: Pramoninis maršrutizatorius Teltonika RUTM10, 4 LAN jungtys, Mesh. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: no brand
• Modelis: RUTM10
• Plotis: 115 mm
• Aukštis: 95 mm

Teltonika RUTM10 Industrial Router 4 Ports LAN Mesh

TELTONIKA

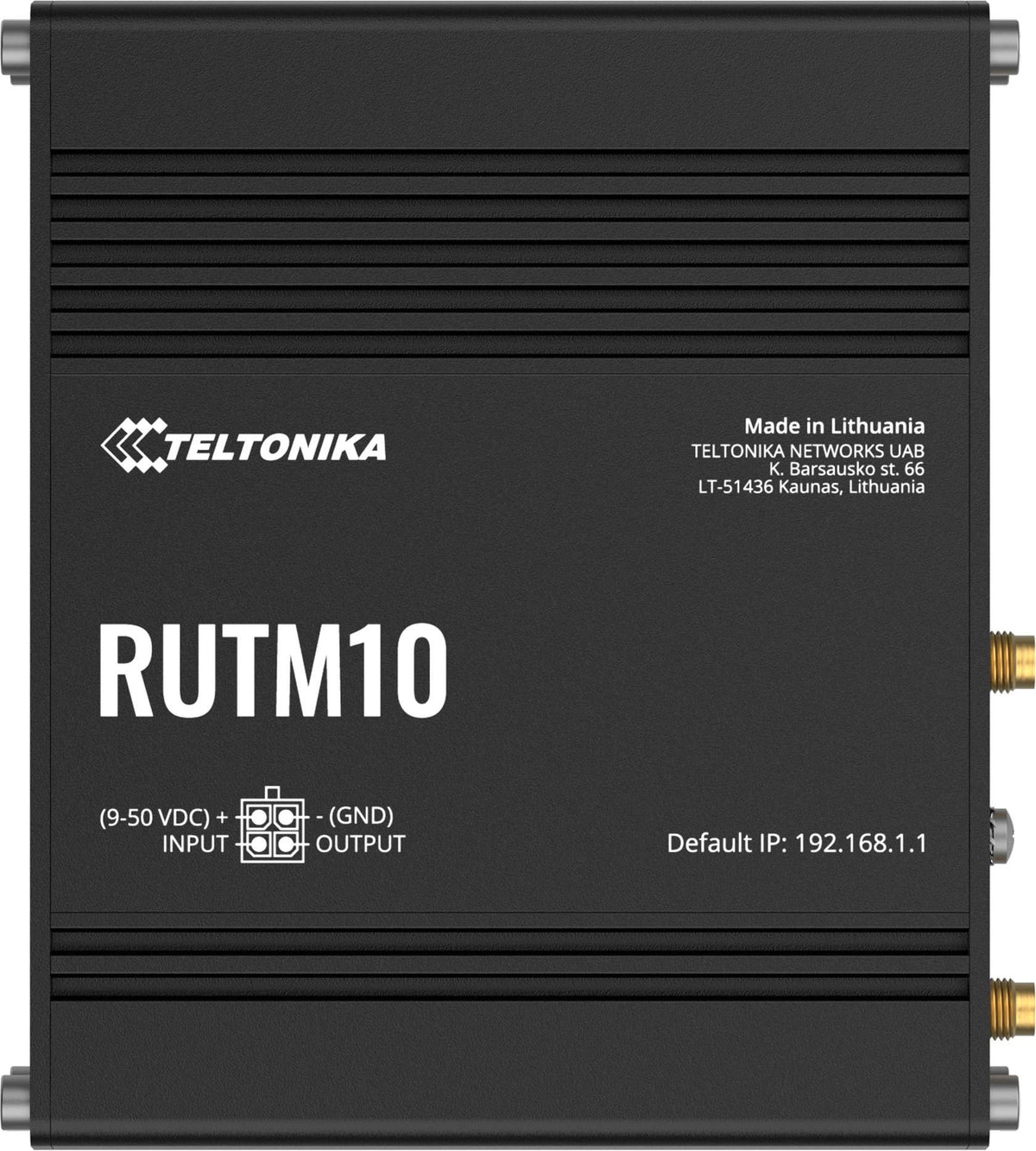

Teltonika RUTM10 industrial router

The Teltonika RUTM10 industrial router offers reliable and efficient networking solutions, ideal for demanding environments. It provides stable connections thanks to advanced technologies and robust construction.

The most important features

• High performance: Fast and stable connections thanks to the latest technologies.
• Resistance to conditions: Excellent performance in harsh industrial environments.
• Easy setup: Quick and intuitive adjustment of settings.
• Connection security: Advanced data protection features.
• Support for multiple networks: Support for a variety of connectivity technologies.
• Strength: Long service life thanks to solid construction.

Technical specification

• Number of LAN/WAN ports: 4
• Mesh ready: Yes
• Support for MU-MIMO: 2x2
• Router type: DSL (Note: there is information about DSL in the input data, while the technical specification points to Ethernet WAN. By default I adopted Ethernet)
• Wireless: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), Dual Band, MU-MIMO, up to 867 Mbps
• Wi-Fi Security: WPA3-SAE, WPA2-Enterprise and inne
• Max Wi-Fi users: Up to 150 simultaneous connections
• WAN Ethernet: 1 x 10/100/1000 Mbps
• Ethernet LAN: 3 x 10/100/1000 Mbps
• Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
• Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, MQTT and inne
• Firewall: Port forwarding, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP relay
• QoS / SQM: Priority Queuing
• DDNS: Support more than 25 suppliers
• Network Backup: Wi-Fi WAN, VRRP, Wired failover
• Load Balancing: Balancing Internet Traffic
• Hotspot: Captive portal, Radius, SMS auth, SSO
• VRF Support: Preliminary support for virtual routing
• 802.1x: Port-based network access control client
• Authentication: Pre-shared key, digital certificates, RADIUS
• Firewall & Security: Preconfigured rules, DMZ, NAT, DDOS protection
• VLAN: Separation of VLAN
• Web Filter: Blacklist, whitelist
• Access Control: SSH access control, Web UI, CLI
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard and inne
• OPC UA: Client, server modes
• MODBUS: Modes server, client
• DNP3: Station modes, outstation
• DLMS/COSEM: DLMS support (TCP/USB client)
• Data to Server: HTTP(S), MQTT
• Management & Monitoring: WEB UI, FOTA, SSH, MQTT, SNMP
• IoT Platforms: Cumulocity, Azure IoT Hub, AWS IoT Core
• Hardware: CPU: MediaTek Dual-Core 880 MHz; RAM: 256 MB DDR3; Flash: 16 MB NOR + 256 MB NAND
• Operating System: RutOS (OpenWrt based Linux OS)
• Power Input: RJ45 (PoE In), 42.5 – 57.0 V DC
• Power Consumption: Idle: 2.5 W; Max: 6 W
• Physical Ports: 4 x RJ45 10/100/1000 Mbps
• Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
• Operating Temperature: -40 °C to 75 °C
• Humidity: 10% to 90% non-condensing
• Ingress Protection: IP30
• Certifications: CE, UKCA, RCM, CB, UN ECE R10 (E-mark)
